CNC Machining Service for Drawing-Defined Parts

Hardware-SP is a China custom manufacturer which have 18 year experience. Our CNC machining service brings milling, turning and multi-axis work into factory, so you can evaluate part function, interfaces and application before production begins.

Requirement quoting

Your drawing, revision, material, quantity and functional priorities form the basis for a useful quotation.

Process-fit selection

Milling, turning or multi-axis access is considered against geometry rather than chosen by a generic label.

Interface awareness

Bores, threads, mounting faces, datum surfaces and mating relationships receive attention before release.

Project continuity

Prototype, repeat orders and component sets can stay connected to the same released part definition.

CNC Machining Service RFQ

A good RFQ does more than state a part name. It lets the supplier see the geometry, decision-critical features and commercial context together. If you only have a sample or an early concept, explain the function that matters most. This gives your quotation a clearer manufacturing route and reduces the risk of comparing prices built on different assumptions.

Part definition

2D drawing, 3D CAD, sample or clear dimensional sketch; current revision.

Functional requirements

Critical dimensions, fits, threads, sealing or mounting interfaces, cosmetic limits.

Commercial context

Quantity, target stage, repeat-order expectation, requested date and destination.

Release requirements

Inspection evidence, part identification, packing and shipping instructions if required.

CNC Capability Built Around Part Function

Hardware-SP helps you identify the manufacturing route first, then move to the product page that matches your part’s geometry or interface risk.

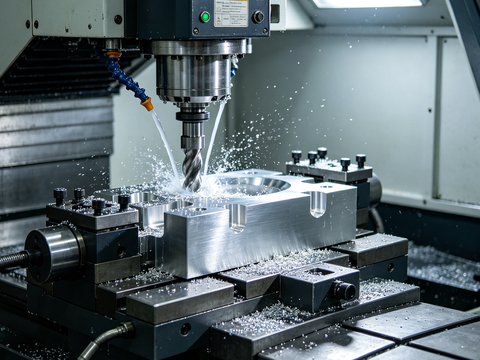

CNC Milling

Pockets, holes, slots, contours, datum faces and prismatic profiles.

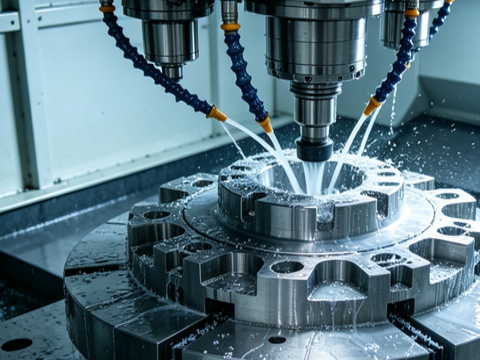

5 Axis CNC Machining

Multi-face features, compound angles and geometry where coordinated tool access matters.

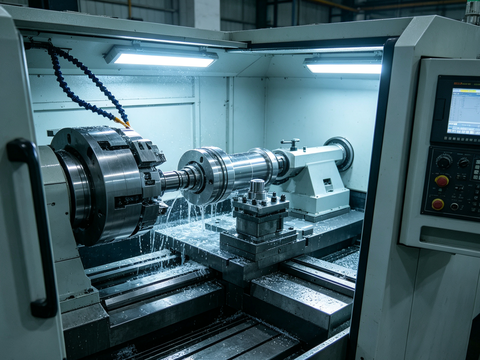

CNC Turning Parts

Rotational OD/ID features, grooves, shoulders, threads and cylindrical part geometry.

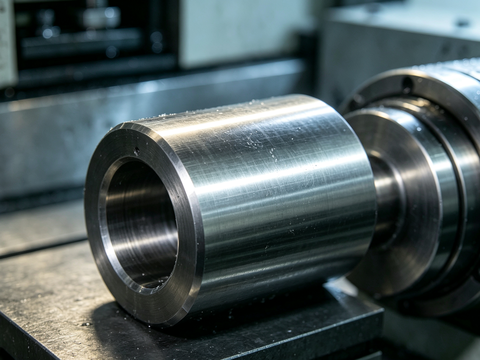

CNC Bushings

Shaft-to-housing fits, bearing or sliding interfaces, shoulders and lubrication-related details.

CNC Pins

Locating, retaining or pivot features with controlled diameter, effective length and ends.

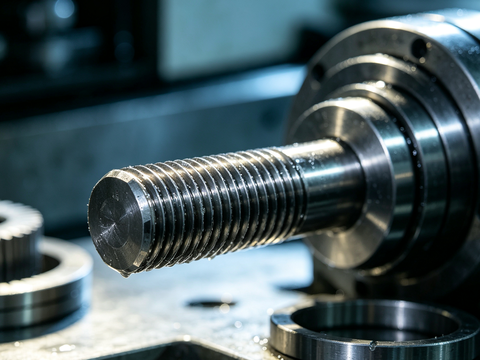

CNC Threaded Components

Thread engagement, pitch, handedness, relief, lead-in and repeatable mating requirements.

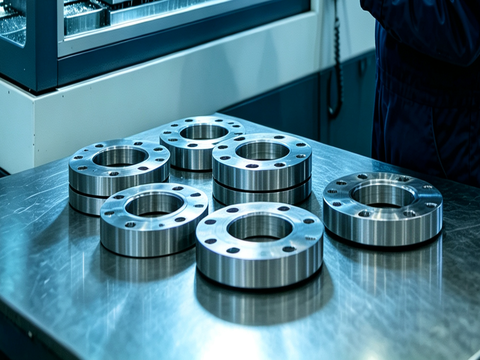

CNC Flanged Components

Mounting faces, pilot/bore relationships, hole patterns and sealing or assembly interfaces.

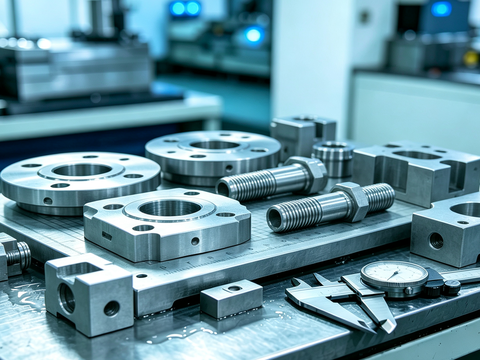

CNC Machined Components

Drawing-defined components and controlled sets with shared interfaces, revisions and identification.

;

Reduce Risk Before the Part Is Cut

For the inspection framework behind this page, see Quality Control and Inspection. It explains how part-specific requirements become a practical check route rather than a generic quality claim.

1 -

Technical interpretation
One supplier conversation
Requirement-matched control
Clear handover inputs
Surface finishes

Corrosion resistance, wear, visual standard, masking, thread protection and critical surfaces.

Reference Values Need Drawing Confirmation

The values below are planning references for an RFQ discussion, not blanket factory guarantees. Final feasibility depends on material, part size, geometry, setup strategy, inspection method and the feature’s functional role. Your drawing remains the controlling document.

Characteristic	Project planning reference	What changes the final decision
General machined dimensions	0.01-0.10 mm, depending on geometry and size.	Material stability, feature access, datum strategy and measurement method.
Hole / bore / fit features	0.01-0.05 mm or drawing-defined fit class.	Depth, diameter, mating condition, tooling route and functional requirement.
Surface roughness	Ra 0.8-3.2 µm for typical planning discussion.	Material, operation, finish requirement and whether the surface seals, slides or locates.
Threads	Standard and class per drawing; engagement reviewed by feature.	Thread size, pitch, blind depth, lead-in, relief and mating component.
Part envelope	Confirmed after stock, fixture and process review.	Geometry, material, weight, holding method and requested quantity.

Choose Material and Finish by Function

Material and finishing choices should support the part’s working condition, not just its appearance. Aluminum may suit low weight; stainless steel may be selected for corrosion considerations; carbon steel can fit strength-driven parts; brass or copper may serve conductivity or machinability needs; engineering plastics can support weight, insulation or friction-related requirements. Surface finish is then reviewed against corrosion, wear, sealing, appearance or assembly needs.

;

Material

1 -

Aluminum
Stainless / carbon steel
Brass / copper
Engineering plastics
Surface finishes

Corrosion resistance, wear, visual standard, masking, thread protection and critical surfaces.

The industries we serve

Automation and Robotics

Automation assemblies often combine location, motion and mounting features in a limited space. A parent CNC machining service page should help you group the related requirements: milled mounting plates, turned shafts or bushings, locating pins, threaded connectors and flange interfaces. By presenting the shared datums and mating relationships with the RFQ, you make it easier to discuss the parts as an assembly rather than as unrelated line items.
Industrial Equipment

Industrial equipment parts can be driven by durability, service access and predictable replacement. The useful question is not simply whether a part can be machined; it is which features must remain compatible with the surrounding equipment. Bores, threads, faces, hole patterns and wear surfaces should be identified early. That supports a process discussion that connects material and finish choices to the real operating role of the part.
Product Development and Pilot Builds

During development, revisions often change one interface while the rest of the component set stays in place. Keep the revision reference, critical change and test objective visible in the RFQ. You can then use a CNC route to assess the changed geometry, compare materials or finishes, and prepare the next build with fewer assumptions. This is especially useful when prototype findings must be carried into repeat purchasing decisions.

CNC Machining Service FAQs

Q What files should I send for a CNC machining quote?

Send the current 2D drawing and 3D CAD file when available, plus the part revision, material, finish, quantity and any critical functional requirements. A sample or dimensional sketch can also start an early discussion, but the quotation should identify what still needs confirmation. If a bore, thread, sealing face or mating feature controls function, call it out rather than leaving it implicit.

How do I decide between CNC milling, turning and 5-axis machining?

Start from geometry and feature access. Milling is often considered for pockets, faces, holes and prismatic profiles; turning for rotational OD/ID features, grooves and threads; and 5-axis machining where several faces or difficult angles need coordinated access. The selected route should be reviewed with the drawing, material, tolerance priorities and quantity instead of being chosen from a part name alone.
Can one RFQ include several different CNC parts?

Yes. A component set may include plates, shafts, bushings, pins, threaded items and flanged interfaces. Send a clear parts list with individual drawings, revisions and quantities. It is particularly useful to identify shared mating dimensions or assembly relationships, because those details help the technical review connect the parts rather than treat every line item as completely independent.
How are tolerances confirmed for a custom machined part?

Tolerance feasibility is assessed against the drawing and the part’s geometry, material, size, datum structure, access and measurement approach. Reference ranges can help frame an RFQ, but they do not replace a feature-level review. State which dimensions affect fit, motion, sealing, position or appearance so the review can focus on the consequences of variation, not only a number on the drawing.
Can I request inspection records or special packing?

Yes. Put the requested inspection evidence, first-piece approval needs, part labels, packaging method and shipment instructions in the RFQ or drawing notes. The requirements can then be reviewed with the part definition and manufacturing route. This is more useful than assuming every project follows the same paperwork, because the level of evidence and protection should match your own receiving and assembly process.

Start with the Part Definition
Send your drawing, CAD file, sample or technical requirement together with the part revision, material, finish, quantity, critical interfaces and any quality or packing needs. We will use those inputs to determine the relevant CNC route and prepare a quotation discussion that is tied to your actual project.
