Custom CNC Machined Components Built Around Your Assembly


We are China-based B2B manufacturer of custom CNC machined components. You provide drawings, CAD files, samples, materials, quantities, and technical requirements; we review manufacturability, quote the project, coordinate production and quality control, and prepare the finished parts for shipment.

Quote the Assembly Requirements, Not Only the Part Name


This page is for buyers sourcing a family of drawing-defined mechanical components, not one catalog item. Your project may combine milled, turned, flanged, threaded, or locating features. The value is a clear review of the functional interfaces and a controlled route from technical input to repeat supply.

REVIEW MY COMPONENT DRAWINGS

Buyer concern What we review
Component-to-component fit Review shared datums, bores, holes, threads, faces, and stack-up relationships.
Process selection Decide whether turning, milling, 5-axis access, or combined operations best suit the drawing.
Material and finish Connect material, coating, corrosion, wear, weight, and cosmetic needs to function.
Repeat supply control Identify critical characteristics, inspection priorities, packaging, and revision control.

QUOTE INPUT



A component quote is more useful when it includes the assembly context. Send 3D CAD and 2D drawings, material, quantity, critical dimensions, datums, mating features, finish, application, and inspection needs.

If several parts must fit together, identify shared dimensions, interfaces, and acceptance priorities so the review can separate critical controls from ordinary dimensions.

/cncDrawing-Based Components for OEM Assemblies

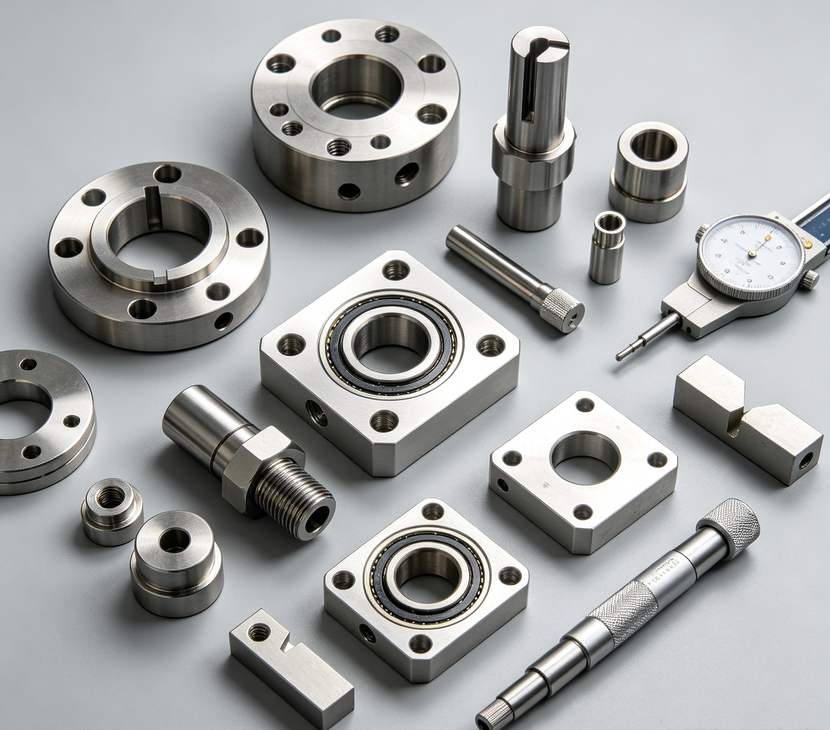

Custom CNC machined components are mechanical parts made to the dimensions, material, finish, and functional requirements of your drawing. They can be housings, brackets, shafts, sleeves, pins, adapters, flanges, mounts, or other components that must work with adjacent parts. Hardware-SP reviews the manufacturing route and the assembly-critical features before quotation. This helps your sourcing team compare a supplier by how clearly the project is understood, not only by a unit-price line.

For prismatic housings, brackets, plates, and multi-face geometry, review CNC Milling.

Four Families of CNC Machined Components

​​​​​​​
For cylindrical components with OD, ID, threads, grooves, and concentricity needs, connect to CNC Turning Parts.​​​​​​​

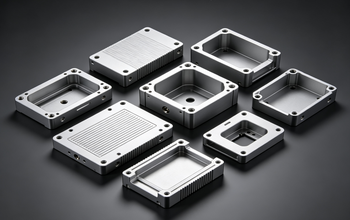

Milled Housings

Milled Structural Components

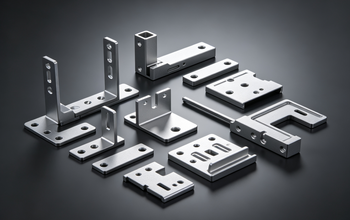

CNC Brackets(1)

Turned Rotational Components

​​​​​

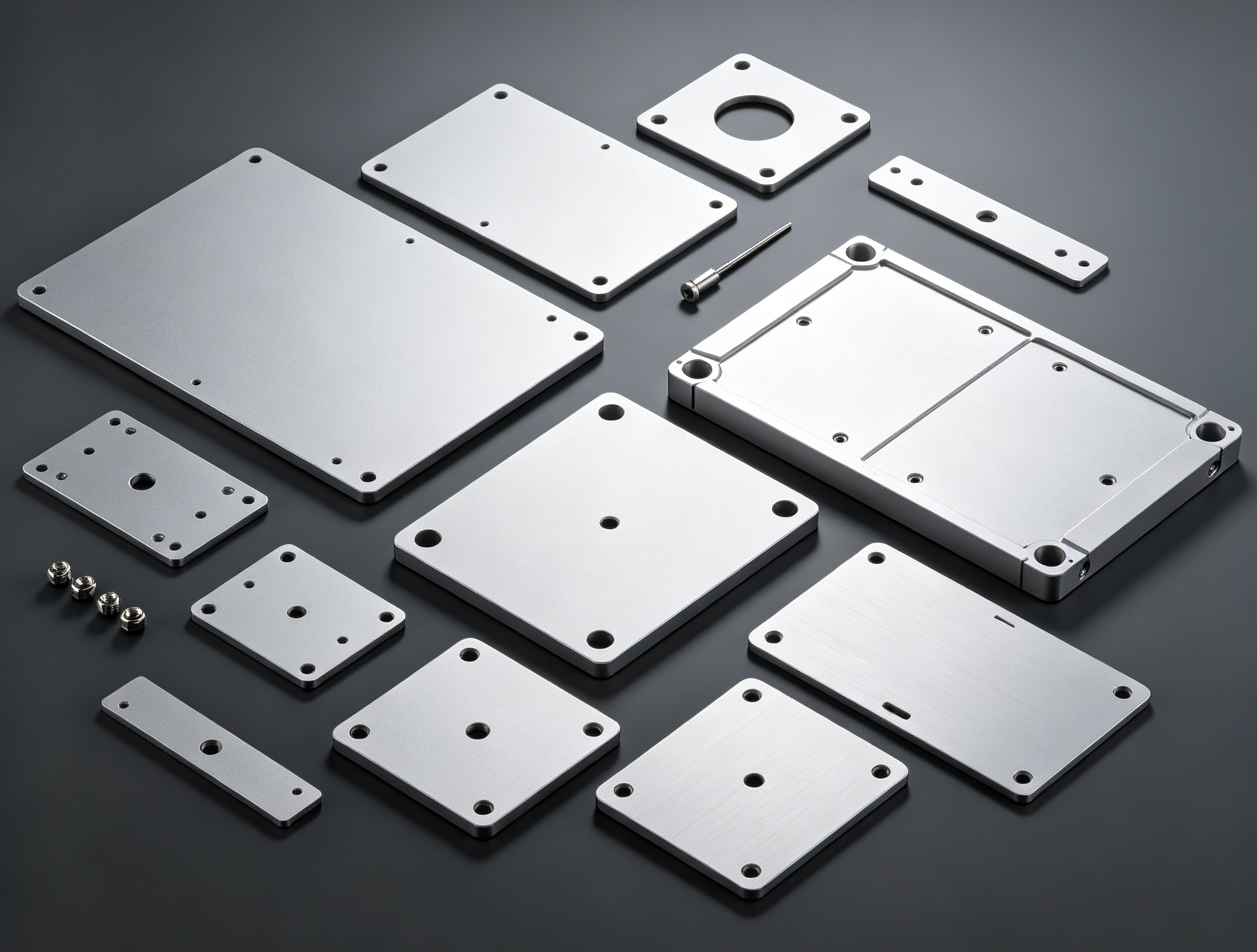

Milled Plates and Cover

Threaded

Interface Components

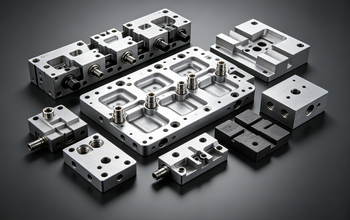

Manifolds and Fixture Parts


Locating

Motion Components

Controls That Reduce Sourcing Risk

;

1 -
  • Assembly Context First
    Review the component as part of a functional system, not as a disconnected drawing.
  • Process Matched to Geometry
    Select the practical route around profiles, bores, faces, holes, threads, and access.
  • Critical Features Prioritized
    Focus attention on dimensions and finishes that decide fit, movement, seal, or interface function.
  • Clear Project Handover
    Align drawing revision, material, quantity, inspection, packing, and shipment requirements before production.

    For project-specific checks and acceptance discussion, reference Quality Control and Inspection.

CNC Component Project References

Feature Typical Project Reference Review needed
General dimensions +/-0.05 to +/-0.10 mm Confirm geometry, datum, material, and measurement method.
Critical bores or diameters +/-0.01 to +/-0.03 mm Confirm mating fit and inspection requirement.
Feature position +/-0.05 to +/-0.10 mm Confirm datum scheme and assembly stack-up.
Surface roughness Ra 0.8 to 3.2 um Confirm contact, wear, sealing, coating, or cosmetic need.
Material / finish Project-specified Confirm approved grade, treatment, masking, and acceptance criteria.

These are project references, not unconditional factory guarantees. Final capability depends on material, part geometry, size, wall thickness, workholding, quantity, finish, assembly need, and inspection method. Submit drawings for confirmation.


Material Type

Material When It Is Commonly Considered
Aluminum Lightweight shafts, spacers, housings, collars, and non-heavy-wear assemblies
Stainless Steel Corrosion-resistant fittings, shafts, pins, sleeves, and exposed mechanical interfaces
Carbon and Alloy Steel High-strength shafts, pins, drive components, and wear-related mechanical parts
Brass and Bronze Bushings, fittings, connectors, low-friction interfaces, and corrosion-sensitive components

MATERIALS AND APPLICATIONS

  • Materials and Finishes Selected for the Working Requirement

    Aluminum may reduce weight; steel may support strength and load; stainless steel may suit corrosion exposure; brass or copper alloys may support conductivity or corrosion-related needs; and engineering plastics may support insulation, low friction, or chemical requirements. Your drawing should state the actual working condition and mating relationship so material and finish choices can be reviewed with the component function.

    For complex access and multi-angle geometry, explore 5 Axis CNC Machining.

  • Automation and Robotics

    CNC machined housings, mounts, pins, shafts, brackets, and interfaces support controlled motion and repeatable assembly. Provide the system drawing, load, cycle, guide, actuator, sensor, and fastening information so the component review protects the operating relationship.

  • Industrial Equipment

    Custom components may locate, retain, support, seal, transmit load, or connect equipment subassemblies. Share the interfaces, service environment, maintenance access, and acceptance requirements so the project is reviewed as a usable equipment solution.

  • Electrical and Instrument Assemblies

    Milled and turned components can form enclosures, connector bodies, heat-spreading parts, spacers, and mounts. Define the contact faces, conductivity or insulation need, material, finish, assembly sequence, and visible zones before quotation.

Keep the Component Set Aligned Through Release

1. Technical Input


Build one released input pack: part list, drawing revision, CAD, material notes, quantities, and the interfaces shared by the component set.

2. Manufacturing Review


Review each part against its role in the set: shared datums, mating pairs, preferred process, finish compatibility, and the few controls that protect interchangeability.

3. Quotation Confirmation

Organize quotation decisions around component families and open interface questions, so a change to one drawing is visible to the related parts before release.

4. Production and Quality Control

Release production against the approved component pack, while keeping revision-specific checks tied to each part number and its interface function.

​​​​​​​

5. Packing and Shipment Preparation

Plan packing by component identity and surface sensitivity, so mixed sets remain traceable and the receiving team can match parts to the release documents.

​​​​​​​

FAQ

    Q What information is needed to quote several CNC components?

    A

    Send a part list or BOM context, 2D drawings, 3D CAD models when available, material, quantity, revision, finish, critical features, mating relationships, inspection needs, and packing requirements. Identify parts that share an interface or must be evaluated together.

  • Can one supplier make milled and turned components for the same assembly?

    A mixed component project can be reviewed when each drawing and the assembly interfaces are clear. Milling, turning, 5-axis machining, threads, and secondary features may be selected according to each part geometry. The quotation should still define the critical checks for every component.

  • How should I control component revisions?

    Use a clear drawing revision and ensure the quoted material, finish, dimensions, and inspection requirements match that revision. If a revision changes a shared interface, tell the supplier which related parts are affected so the technical review can be updated.

  • Can you make samples before repeat production?

    Samples can verify individual dimensions as well as the relationship between components before repeat production. Share the sample quantity, mating parts, assembly checks, and expected repeat demand so the project review can plan a useful first stage.

  • What materials can be considered for custom components?

    Common choices may include aluminum, steel, stainless steel, brass, copper alloys, and engineering plastics. The right option depends on load, corrosion, conductivity, wear, temperature, mating parts, finish, and application requirements. Provide those conditions rather than selecting only by price.

Start with Your Drawings and Component Relationships

Upload your component drawings, CAD files, samples, or BOM context and include materials, quantities, revisions, critical interfaces, finish, inspection, packing, and application requirements. We will review the information needed for a drawing-based CNC machined component quotation.
