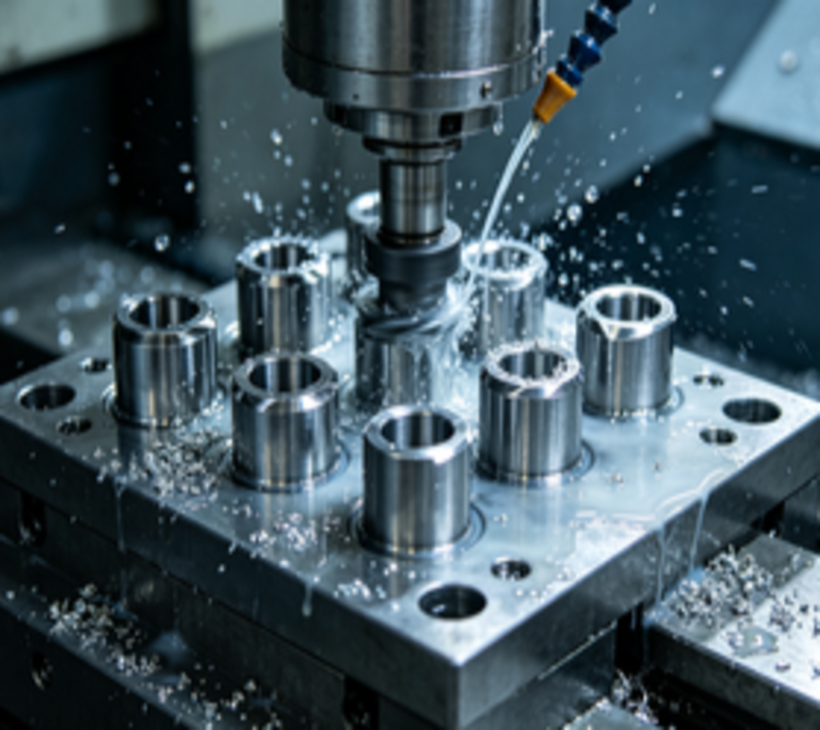

Custom CNC Bushings for Reliable Shaft and Housing Fit


We are China-based custom manufacturing factory for drawing-based CNC bushings. You provide the drawing, CAD file, sample, material, quantity, and mating details; we review the fit requirements, prepare the quotation, manage production and quality control, then prepare the order for shipment.

REVIEW BUSHING FIT

Buyer Risk What We Review
Shaft-to-bore fit ID tolerance, shaft dimension, clearance or interference
Housing fit OD tolerance, press-fit need, wall thickness, and assembly force
Wear and friction Material, lubrication, roughness, load, speed, and operating environment
Batch consistency Critical dimensions, inspection points, packing, and repeat-order controls

QUOTING FEATURE



Define the Fit Before Production


A useful bushing quotation begins with the parts around it. A bore that is too tight can create friction or seizure; one that is too loose can create vibration and inaccurate motion. A thin wall may distort during machining or pressing. Send your shaft, housing, fit class, load, motion, temperature, lubrication, material, and finish requirements so the review can focus on the dimensions that decide performance.

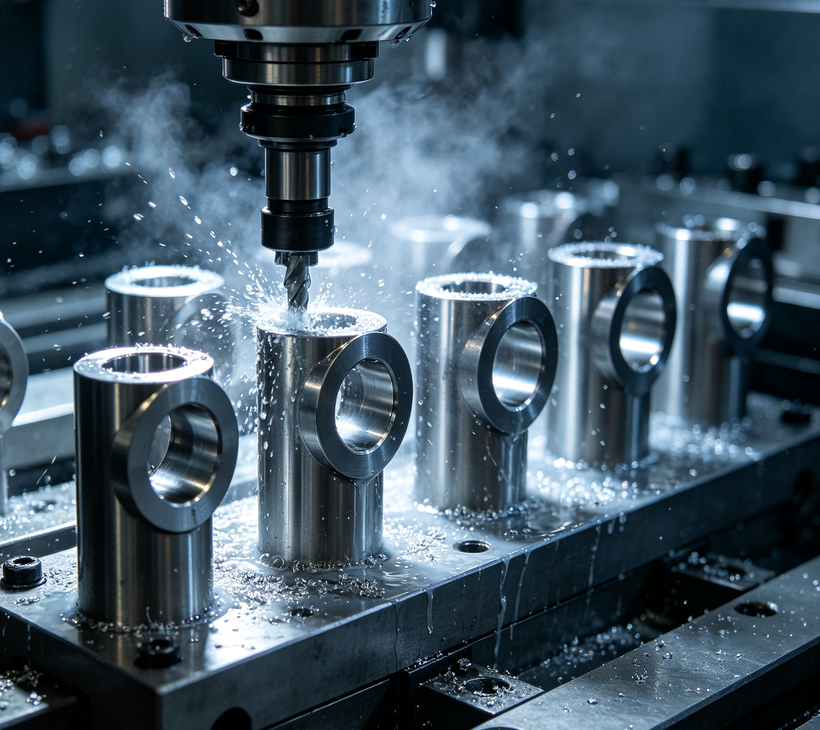

Precision Bushings Built Around Your Assembly


We makes custom machined bushings to drawings, CAD files, and samples for industrial and OEM projects. Whether you need a prototype sleeve bushing or repeat production of flanged, stepped, threaded, or grooved bushings, the review starts with how the component fits, moves, carries load, and wears in your equipment. For related rotational components, review CNC Turning Parts.

CNC Bushings by Function

Custom CNC bushings guide, support, space, locate, or protect moving components. Their performance depends on the relationship between bore, outside diameter, length, flange face, material, and surface finish—not on one dimension alone.

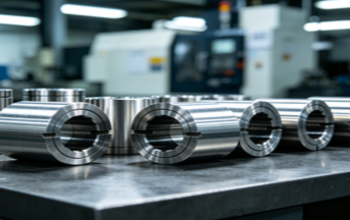

Sleeve Bushings

Sleeve Bushings

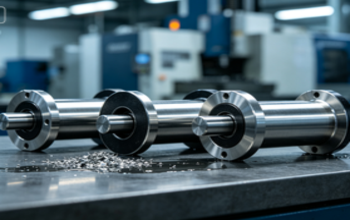

Flanged Bushings

Flanged Bushings

​​​​​​​​​​​

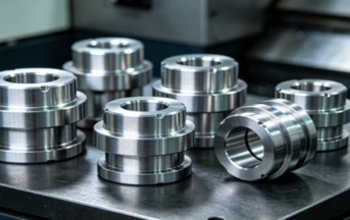

Stepped and Shoulder Bushings(1)

Stepped

Shoulder Bushings

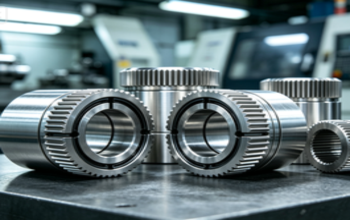

Grooved bushing

Threaded

Grooved Bushings

Controls That Protect Bushing Performance

;

1 -
  • Fit Comes First
    Review ID, OD, and mating parts before selecting the tolerance.
  • Wall Thickness Is Considered
    Plan thin-wall geometry to reduce deformation risk during machining or installation.
  • Wear Surface Is Defined
    Match material and roughness to sliding, rotation, load, and lubrication conditions.
  • Inspection Follows Function
    Check the dimensions that affect alignment, press fit, clearance, and service life. You can also align the acceptance plan with our Quality Control and Inspection guidance.

CNC Bushing Reference Values

Feature Typical Project Reference Review Requirement
Bore / ID +/-0.01 to +/-0.03 mm Confirm shaft size, fit, and measurement method
Outside diameter +/-0.01 to +/-0.03 mm Confirm housing fit, wall thickness, and press condition
Length / flange face +/-0.05 to +/-0.10 mm Confirm datum and axial stack-up
Concentricity 0.02 to 0.05 mm project target Confirm functional axis and measurement location
Surface roughness Ra 0.8 to 3.2 um Confirm sliding, sealing, or wear requirement

These are project references, not unconditional factory guarantees. Final capability depends on material, wall thickness, geometry, fit, workholding, quantity, finish, and inspection method. Submit the drawing for confirmation.


For custom CNC turning parts, material selection should follow the working condition. State whether the surface will slide, press-fit, seal, carry load, resist corrosion, conduct electricity, or mate with a harder material. For related multi-feature parts, review our CNC Machined Components resources before finalising your RFQ.


MATERIALS AND APPLICATIONS

  • Fluid and Electrical Assemblies

    Threaded, flanged, and insulating bushings may also act as spacers, sleeves, sealing supports, or connector interfaces. Your drawing should show thread, bore, face, material, and environmental requirements so the manufacturing route supports the full assembly function.

  • Industrial Equipment

    Custom CNC bushings can control shaft alignment, bearing spacing, wear surfaces, and housing fits in industrial equipment. Define the assembly stack-up, load direction, lubrication, and working environment to reduce premature wear and avoid fit-related rework.

  • Automation and Robotics

    Guide bushings, sleeve bushings, and spacers support accurate movement in fixtures, actuators, and robotic mechanisms. Provide the shaft, motion cycle, load, and replacement requirement so the review can protect repeatable guidance rather than only nominal dimensions.

  • Material Selected for the Working Condition

    Bronze and brass may be considered for low-friction or corrosion-sensitive interfaces; steel for strength and wear; stainless steel for corrosion resistance; aluminum for lightweight applications; and engineering plastics where low friction, noise reduction, insulation, or chemical resistance matter. State the load, motion, lubrication, temperature, and mating material so the selected bushing material supports the actual duty cycle. For broader drawing-based part examples, see CNC Machined Components.

  • Electrical and Hardware Interfaces

    Connectors, threaded inserts, standoffs, terminal sleeves, and custom fastener-related components often combine a turned body with a functional thread or bore. Provide material, finish, thread, electrical or environmental requirements, and the mating part where possible. This connects the CNC turning process to the component's actual assembly task instead of treating it as a generic cylindrical part.

STANDARDISED COOPERATION FLOW

1. Technical Input


You provide the drawing, CAD file, sample, material, quantity, and assembly context.

2. Requirement Review


We clarify fit, material, critical dimensions, finish, inspection, and open technical questions.

3. Quotation Confirmation


The quotation is prepared from the reviewed project information.

4. Production and Quality Control

Production follows the approved drawing and agreed critical checks.

5. Packing and Shipment Preparation

​​​​​​​

Confirm quantity, packing, documentation, and receiving requirements before dispatch.


CNC Bushing FAQ

    Q What files are needed for quotation?

    A

    A 3D CAD model and 2D drawing are preferred. Include material, quantity, ID/OD tolerances, fit requirements, surface finish, application, and any inspection or packaging needs.

  • Can you make samples before repeat orders?

    Yes. Samples help verify shaft fit, press fit, friction, noise, and assembly sequence before repeat production. Share the immediate quantity and expected future demand so inspection and production requirements can be planned.

  • Can a bushing include a flange, groove, or thread?

    Yes. Flanges, shoulders, oil grooves, snap-ring grooves, threads, and cross features can be evaluated from your drawing. Clearly mark their relationship to the bore and OD so functional datums remain controlled.

  • Which material is best for a wear bushing?

    The right material depends on load, speed, lubrication, temperature, corrosion, mating shaft material, and expected service life. Provide these conditions instead of choosing by price alone; the review can then consider a practical material and finish.

  • Can you make thin-wall bushings?

    Thin-wall bushings require review of wall thickness, material, diameter, length, workholding, and press-fit conditions. Send the drawing and mating details so potential deformation risks can be assessed before production.

Make Your Bushing Requirements Clear

Send your drawing, CAD file, or sample with shaft and housing details, material, quantity, fit, load, lubrication, finish, and inspection requirements. We will review the information needed for a drawing-based CNC bushing quotation.
