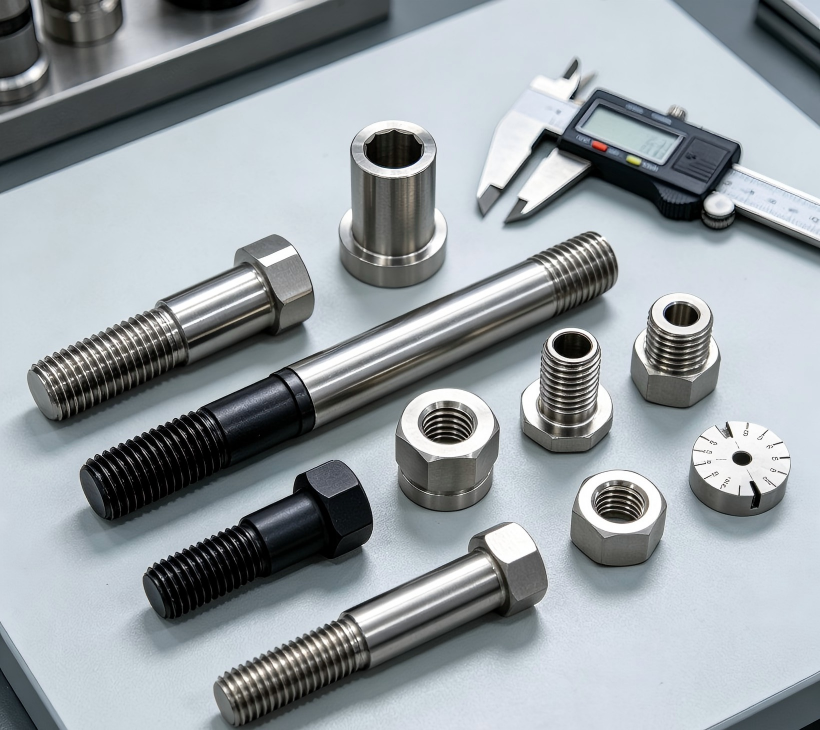

Custom CNC Threaded Components for Controlled Fit and Assembly

We are China-based B2B custom manufacturer of drawing-based CNC threaded components. You provide the drawing, CAD file, sample, material, quantity, thread requirement, and mating information; we review the functional features, quote the project, coordinate production and quality control, and prepare the order for shipment.

REQUEST A CNC THREADED COMPONENT QUOTE

REVIEW MY FLANGE INTERFACE

Buyer concern	What we review
Mating fit	Confirm thread standard, class, pitch, handedness, mating part, and acceptable engagement.
Incomplete engagement	Review usable thread length, blind-hole depth, runout, relief, lead-in, and assembly access.
Burr and damage risk	Identify thread start, end, cross holes, slots, coating, and handling-sensitive areas.
Function beyond the thread	Coordinate shoulders, sealing faces, bores, flats, hexes, grooves, and other datum-critical features.

QUOTE INPUT

Define the Thread as an Assembly Interface

A useful threaded-component quotation needs more than a callout such as M10 or 1/4-20. Send the thread standard, pitch, class or fit requirement where specified, internal or external form, right- or left-hand direction, usable length, blind-hole depth, mating part, torque or sealing context, material, finish, and inspection needs. If the component includes a shoulder, bore, groove, flange, cross hole, flat, or hex, show how it relates to the thread datum.

1. State the Thread Requirement

Identify standard, nominal size, pitch, class or fit, internal or external form, and handedness.

2. Define Usable Engagement

Mark effective thread length, blind-hole depth, thread start, relief, lead-in, and mating engagement.

3. Share Assembly Conditions

Provide mating part, material, torque, sealant, fluid or environment, access, and serviceability context.

4. Set Inspection Priorities

Clarify gauges, thread verification, feature relationships, finish, burr limits, and report requirements.

1. State the Thread Requirement

Identify standard, nominal size, pitch, class or fit, internal or external form, and handedness.
2. Define Usable Engagement

Mark effective thread length, blind-hole depth, thread start, relief, lead-in, and mating engagement.
3. Share Assembly Conditions

Provide mating part, material, torque, sealant, fluid or environment, access, and serviceability context.
4. Set Inspection Priorities

Clarify gauges, thread verification, feature relationships, finish, burr limits, and report requirements.

Threaded Parts Built Around Mating Engagement

Custom CNC threaded components connect, locate, adjust, retain, seal, or transfer load within an assembly. They may be threaded adapters, plugs, sleeves, shafts, studs, spacers, inserts, connectors, or parts that combine a thread with a flange, shoulder, bore, groove, or cross feature.

We review the thread and the non-threaded functional geometry together before quotation. This supports projects where a standard fastener is not sufficient because the design needs special material, dimensions, integrated features, or controlled relationships.

For turning-led cylindrical profiles and shoulder features, review CNC Turning Parts.

CNC Threaded Components by Function

For threaded parts combined with locating or retaining features, connect to CNC Pins.

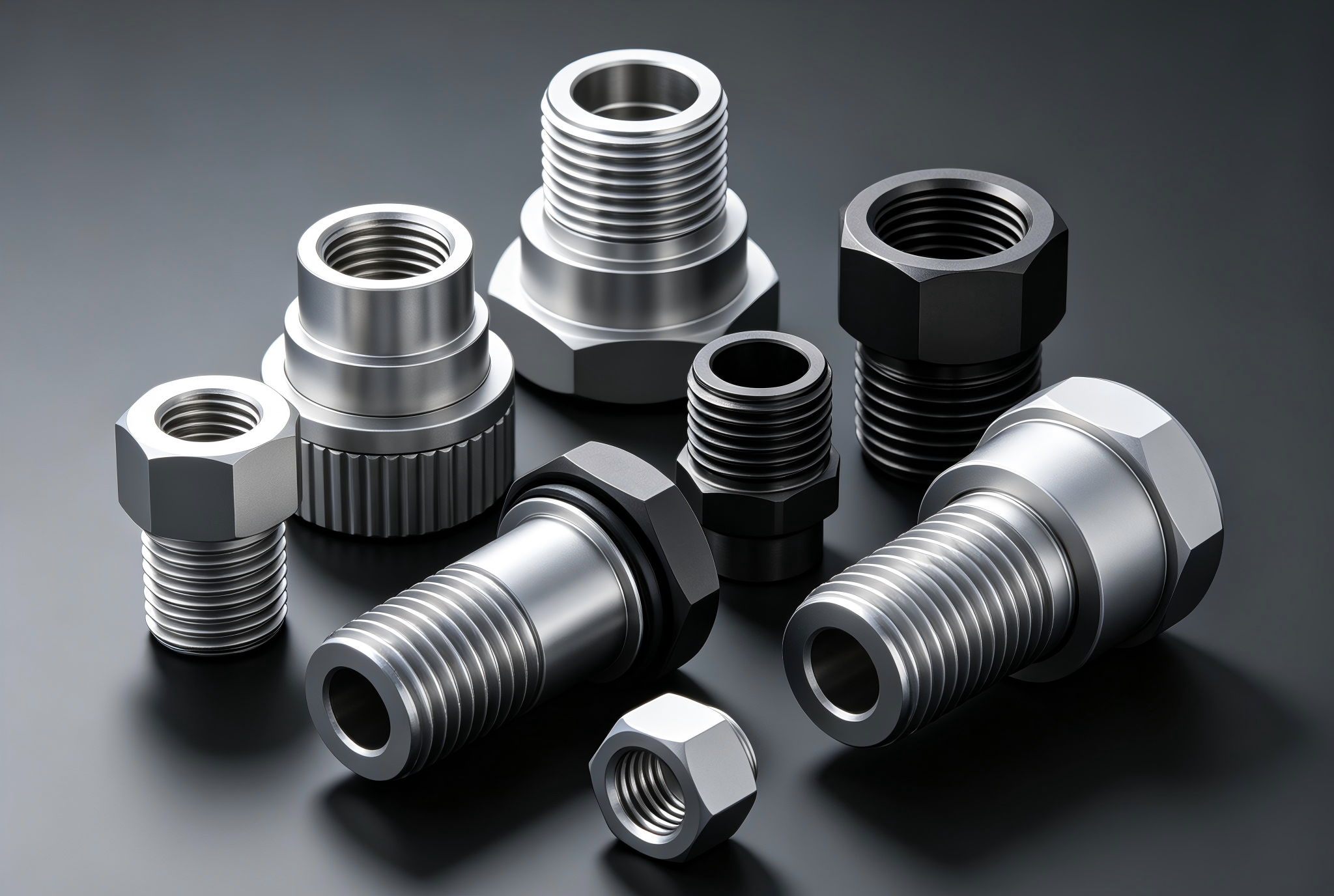

Threaded Adapters

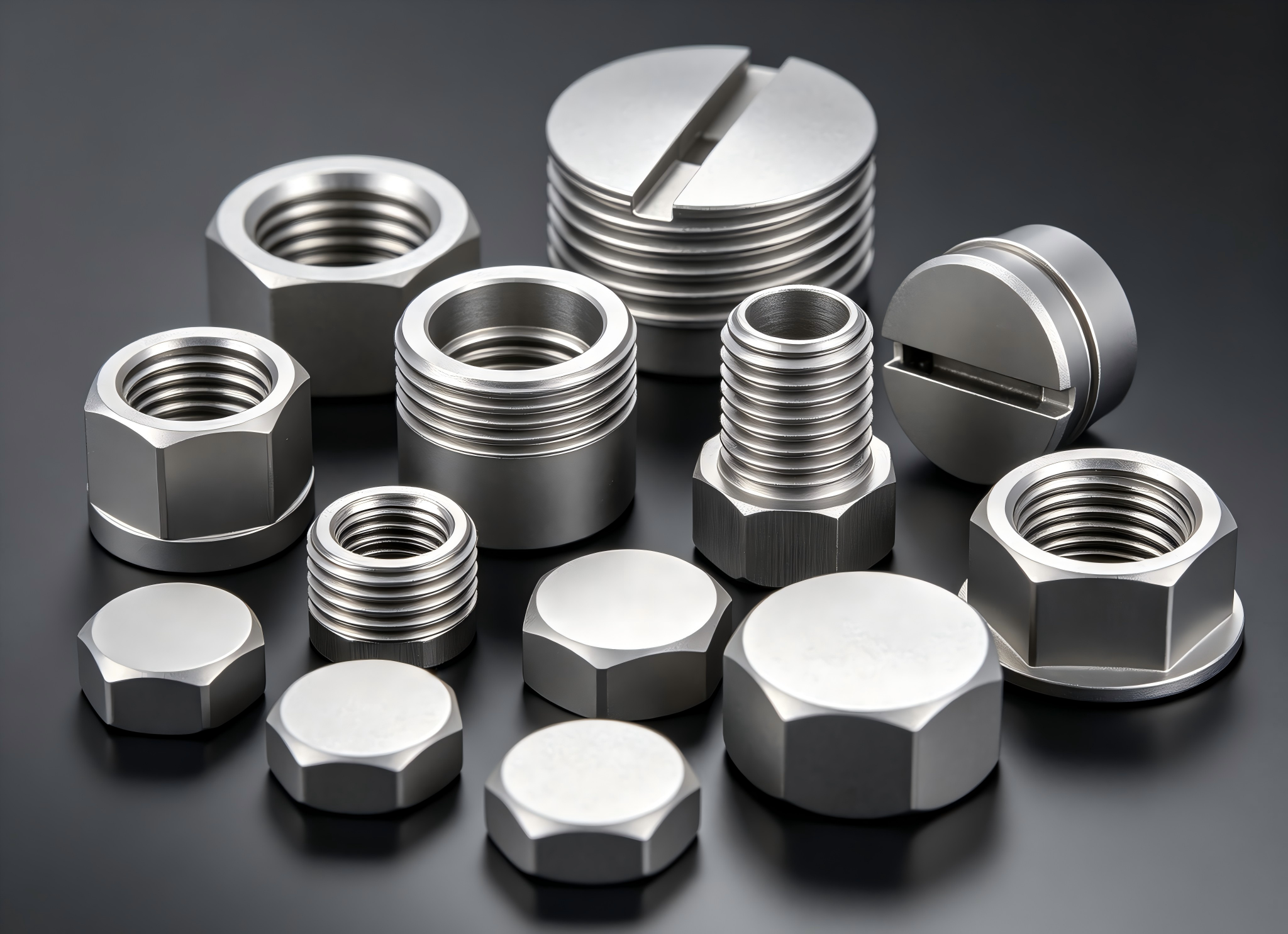

Threaded Plugs and Caps

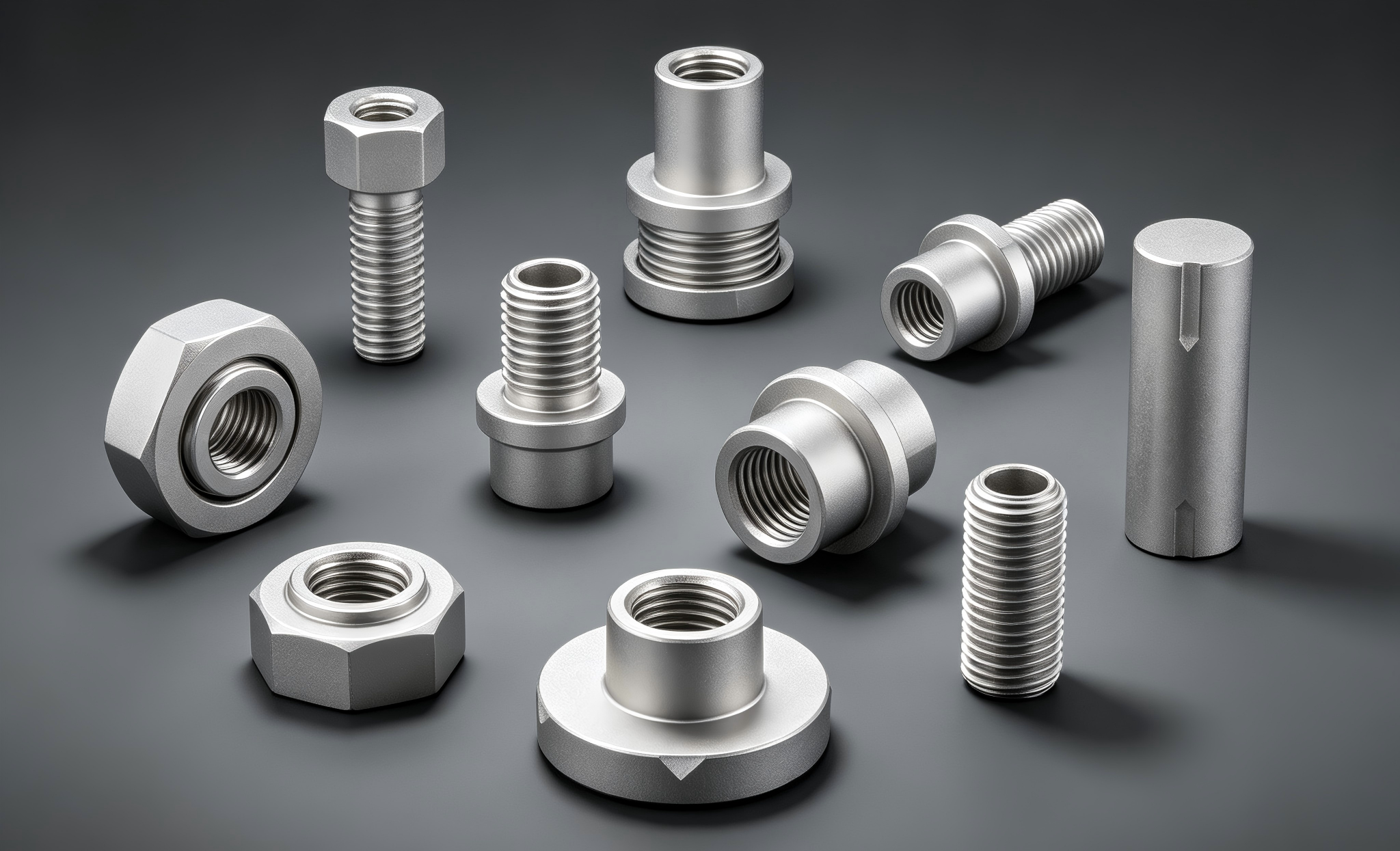

Threaded Inserts and Spacers

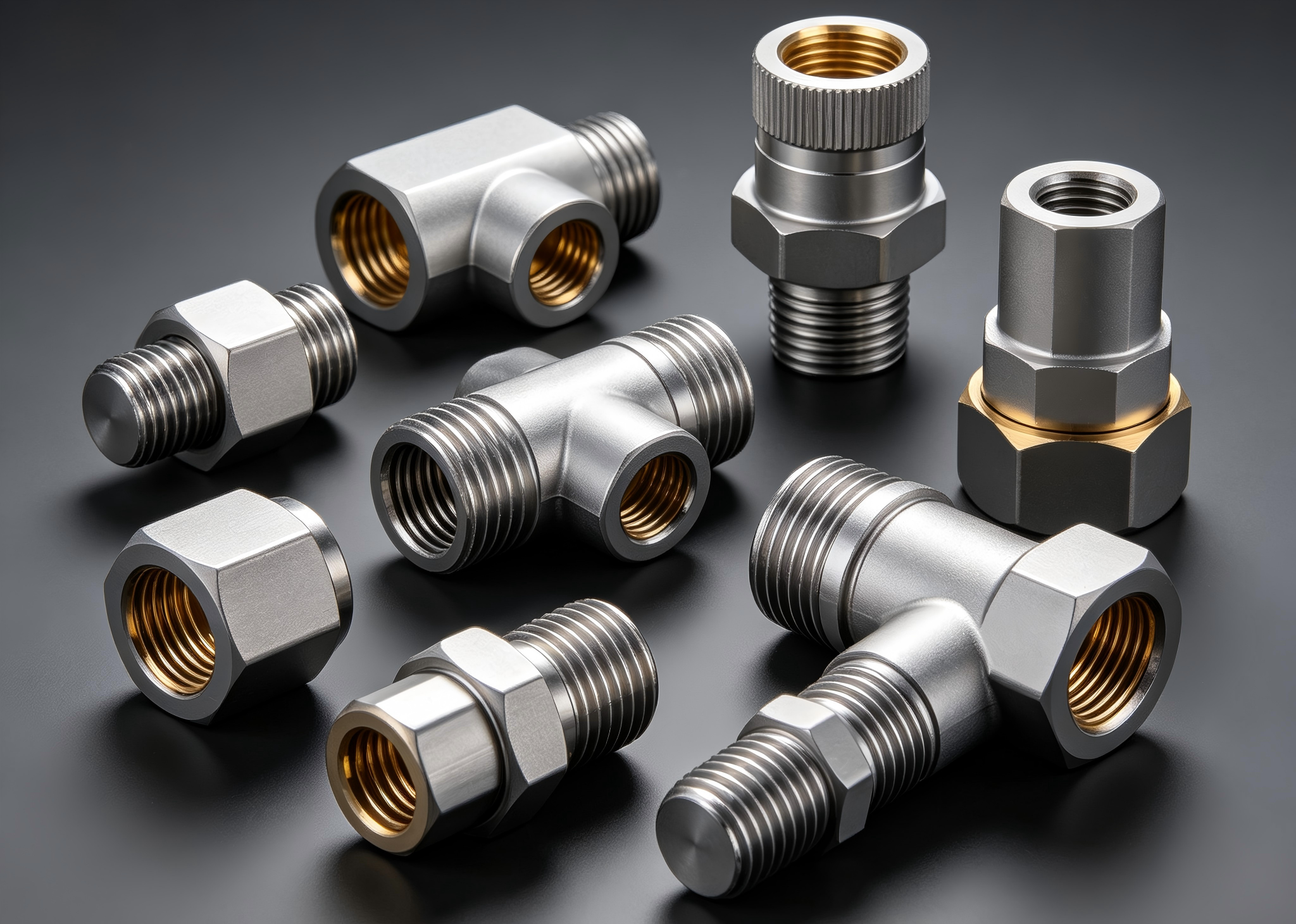

Threaded Fittings

Connectors

WHY WORK WITH US

Control the Details That Decide Thread Performance

;

1 -

Thread Requirement Review

Confirm standard, form, pitch, class, handedness, and mating requirement before selecting a route.
Effective Engagement Control
Burr-Sensitive Feature Planning
Datum-Based Inspection

CNC Threaded Component Project References

Feature	Typical Project Reference	Review needed
Thread size	M2 to M36 project reference	Confirm standard, form, material, and route.
Usable thread length	3 to 80 mm project reference	Confirm engagement, blind depth, runout, and access.
Thread verification	Go/no-go or project-specified method	Confirm class or fit, mating part, and reporting need.
Thread-to-feature relationship	0.02 to 0.05 mm project target	Confirm critical axis, shoulder, bore, or sealing face.
Surface roughness	Ra 0.8 to 3.2 um	Confirm sealing, sliding, coating, or cosmetic requirement.

These are project-reference values, not unconditional factory guarantees. Final feasibility depends on thread form and size, material, geometry, workholding, quantity, finish, mating part, gauge method, and inspection requirement. Submit the drawing and thread callout for confirmation.

Material Type

Material	When It Is Commonly Considered
Aluminum	Lightweight shafts, spacers, housings, collars, and non-heavy-wear assemblies
Stainless Steel	Corrosion-resistant fittings, shafts, pins, sleeves, and exposed mechanical interfaces
Carbon and Alloy Steel	High-strength shafts, pins, drive components, and wear-related mechanical parts
Brass and Bronze	Bushings, fittings, connectors, low-friction interfaces, and corrosion-sensitive components

MATERIALS AND APPLICATIONS

Material and Finish Must Match the Thread Duty

Steel may suit strength and mechanical engagement; stainless steel may be considered for corrosion exposure; aluminum can support lightweight assemblies; brass or copper alloys may serve conductivity or corrosion-related requirements; and engineering plastics may be considered for insulation or low-load interfaces. State the mating material, load, torque, temperature, fluid, sealant, coating, and service conditions so material and finish choices support the threaded joint.
For related custom parts in the same assembly, explore CNC Machined Components.
Industrial Equipment

Threaded shafts, plugs, sleeves, and adapters can retain parts, set position, adjust equipment, or connect housings. Provide the mating component, load, service access, vibration, and any locking or adjustment requirement so the review addresses the joint rather than the thread alone.
Fluid and Pneumatic Assemblies

Threaded fittings, adapters, plugs, and port components can combine a thread with bores, seats, faces, or sealing features. Clearly identify the medium, temperature, seal method, mating standard, and engineering requirements; final leak-tightness and application suitability must be confirmed for the assembled system.
Electrical and Automation Systems

Threaded spacers, inserts, connector bodies, and mounting features may require controlled engagement together with alignment, conductivity, insulation, or access. Send the mating information and functional stack-up so the review can coordinate thread and non-threaded geometry.

A Controlled Route from Drawing to Shipment

1. Technical Input

You provide the drawing, CAD file, material, quantity, mating details, and flange function.

2.Interface Review

We clarify critical faces, bore or pilot, hole pattern, material, finish, and inspection priorities.

3. Quotation Confirmation

The quotation is prepared from the reviewed project information and open technical points.

4. Production and Quality Control

Production follows the approved drawing and agreed checks for functional interface characteristics.

5. Packing and Shipment Preparation

Confirm quantity, packing, documentation, and receiving requirements before dispatch.

CNC Threaded Components FAQ

Q What information is needed to quote a threaded component?

Send the 2D drawing and 3D CAD model when available, thread standard, size, pitch, class or fit where specified, internal or external type, handedness, usable length, mating part, material, quantity, finish, and inspection needs. Include the relationship to shoulders, bores, faces, grooves, or sealing features.

Can you make internal and external threads?

Both internal and external thread features can be evaluated from the drawing. The review needs the form, size, pitch, class or mating requirement, depth or length, material, access, and the features near the thread start and end. This is particularly important for blind threads and multi-feature parts.
How should I specify thread engagement?

Show the usable engagement length, mating component, stopping condition, blind-hole depth when relevant, and any relief or lead-in requirement. Nominal depth is not always usable depth, especially when a thread ends near a shoulder, bore bottom, groove, or sealing feature.
Can a threaded component include a flange or shoulder?

Yes. Flanges, shoulders, hexes, flats, bores, grooves, cross holes, and sealing faces can be evaluated as part of one drawing. Clearly define the datums and the relationship between thread and adjacent functional surfaces so the component is reviewed as an assembly interface.
Can you make a custom thread that is not a standard fastener?

A non-standard thread can be evaluated when the drawing fully defines its form, pitch, dimensions, mating need, material, quantity, and inspection approach. We will review manufacturability and quotation inputs from the project information; do not assume an unmarked form or fit.

Start with the Thread Callout and Mating Details

Upload your drawing, CAD file, or sample and include thread standard, size, pitch, fit requirement, handedness, usable engagement, mating part, material, quantity, secondary features, finish, and inspection needs. We will review the information needed for a drawing-based CNC threaded component quotation.
