Identify surfaces that seal, locate, contact another part or remain visible after assembly. State whether trimming, polishing, coating or plating changes the final acceptance condition.
English
Send the current drawing and CAD where available. State material and thickness, depth, wall shape, radii, critical dimensions, finish, assembly interfaces, demand and revision status. Add a sample if it clarifies the receiving condition.
| RFQ input | What to provide | Decision it supports |
| Drawn geometry | Section views, depth, diameter or width, base, wall, radii and flange details. | Whether the shell needs a redraw sequence or another route. |
| Material condition | Grade, thickness, temper, supplied surface and corrosion or cosmetic expectation. | Forming risk, surface protection and finish planning. |
| Finished-part features | Holes, trim edge, threads, ports, joining points and mating dimensions. | Which work belongs after drawing and how datums are carried. |
| Program context | Demand, prototype stage, revision risk and delivery condition. | Tooling decision, sample plan and repeat-supply discussion. |
These are drawing-review checkpoints, not general capability claims. Final process fit and tooling route require confirmation from the actual geometry, material and program.
| Characteristic | Project reference | Confirmation needed |

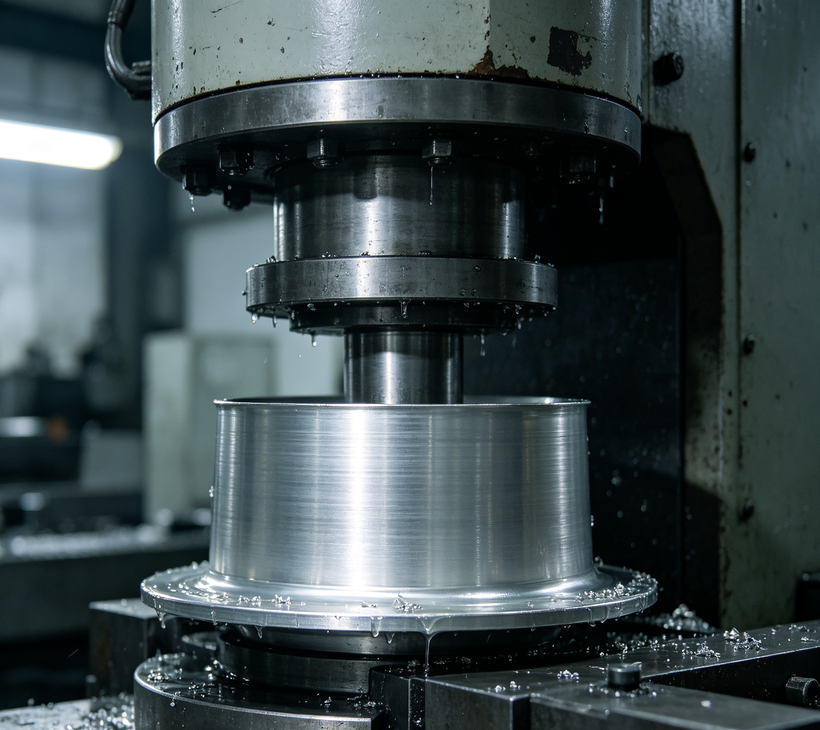

| Drawn wall | A blank is formed into a hollow shape with a base, wall and opening. | Depth-to-width relationship, radii, transition areas and appearance requirement. |
| Multi-stage route | A deeper or changing profile may use more than one draw stage. | Draw sequence, material response, intermediate condition and trim allowance. |
| Added features | A shell may need holes, flanges, threads, joining or finishing after drawing. | Feature location, datum transfer, sequence and protected surfaces. |
| Release condition | The final part may be delivered as a formed shell or an assembly-ready component. | Inspection points, evidence, packing orientation and receiving condition. |
Use Stamping Service for the broader sheet-metal sourcing context. Deep drawing is one route within that discussion when the part needs a three-dimensional shell rather than a primarily flat profile.
When a drawn shell needs a later precision feature or related solid-stock component, CNC Machining Service can support a combined sourcing review. Define the datum passed from drawing to the next process.
Choose material by installed function. Stainless, carbon or spring steel, brass, copper alloys and drawing-specified alternatives behave differently in bending, contact, resilience and finishing. State material form, temper, coating and the functional surface so the review covers the delivered component—not only the raw material name.
Identify surfaces that seal, locate, contact another part or remain visible after assembly. State whether trimming, polishing, coating or plating changes the final acceptance condition.
Put holes, ports, threads, flanges and joining points on the drawing with their functional datums. This avoids quoting the deep drawn shell while leaving assembly-critical work undefined.

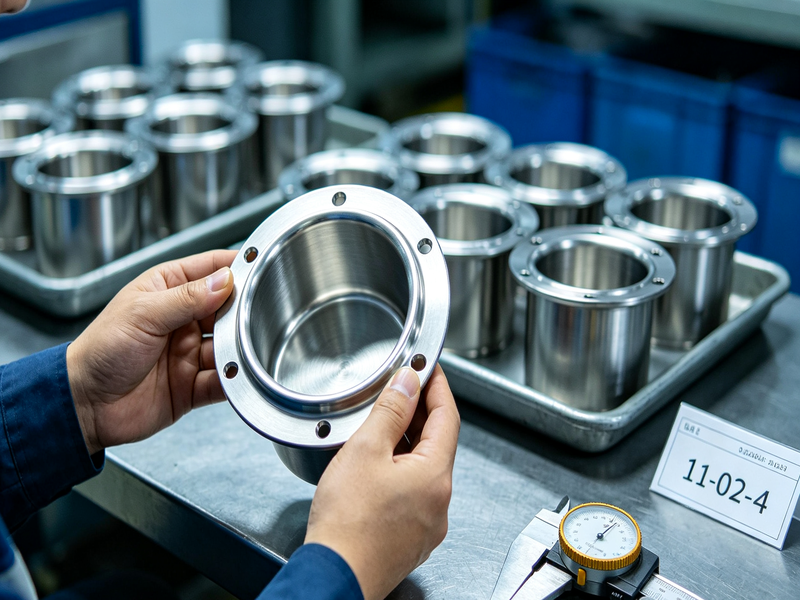

A useful inspection plan identifies the base, wall, opening, rim or flange that controls installed fit, plus any added feature or protected surface. Provide the drawing revision, material requirement, acceptance evidence and packing condition that receiving needs.
Request a review when a component needs a hollow shape, continuous wall, formed base or deep profile. Hardware SP can assess the drawing, material, later features, demand and revision risk before comparing routes.
Send drawing or CAD with material, thickness, section views, depth, radii, critical dimensions, finish, added features, assembly context, demand and revision status. A sample helps when it clarifies the delivered condition.
Deep drawing is worth reviewing when a repeat program needs a hollow form with a continuous wall. Machining may fit lower quantities, solid-stock geometry or features that cannot be formed reliably. Send the section view, material, critical interfaces and expected demand so the full route can be compared.
They can, but these features need their own sequence and datum discussion. Identify where openings, threads, joining, coating or plating occur and which surfaces must remain protected. That lets the quote cover the assembly-ready part rather than an incomplete shell.
It depends on geometry, tooling exposure, prototype needs and repeat demand. A drawing review can compare deep drawing with machining, fabrication or another stamping route. The useful choice is the route that fits the full program, not a process selected from the initial keyword.
