Custom CNC Flanged Components for Controlled Mounting and Interfaces

We are China-based B2B custom manufacturer of drawing-based CNC flanged components. You provide the drawing, CAD file, material, quantity, mating parts, and functional requirements; we review the interface, quote the project, manage production and quality control, and prepare the order for shipment.

REQUEST A CNC FLANGED COMPONENT QUOTE

REVIEW MY FLANGE INTERFACE

Buyer concern	What we review
Face function	Confirm whether the face mounts, seals, seats a gasket, or carries axial load.
Bore-to-pattern alignment	Review bore, pilot, bolt circle, hole pattern, and datum relationship.
Assembly access	Check counterbores, threads, recesses, tool access, fastener clearance, and mating geometry.
Repeatable installation	Prioritize the characteristics that control flat contact, position, torque path, and assembly acceptance.

QUOTING FEATURE

Define the Interface Before Production

A useful flange quotation starts with the connection it creates. Send the mating drawing or the relevant assembly dimensions, not only the part outline. We need to understand whether the face is a mounting plane, a sealing surface, a locating shoulder, or a rotating interface. Identify bore or pilot dimensions, hole pattern, fasteners, gasket or O-ring details where applicable, load direction, pressure or environmental conditions, material, and inspection priorities.

1. Identify the Function

State whether the flange mounts, seals, aligns, closes, adapts, supports, or transmits torque.

2. Mark the Critical Interfaces

Identify face, pilot, bore, bolt circle, holes, threads, grooves, recesses, and their functional datums.

3. Share Mating Details

Provide the mating component, fastener, gasket, O-ring, load, medium, temperature, or motion information.

4. Set Acceptance Priorities

Clarify the dimensions, surface condition, flatness, or documentation that decide assembly acceptance.

1. Identify the Function

State whether the flange mounts, seals, aligns, closes, adapts, supports, or transmits torque.
2. Mark the Critical Interfaces

Identify face, pilot, bore, bolt circle, holes, threads, grooves, recesses, and their functional datums.
3. Share Mating Details

Provide the mating component, fastener, gasket, O-ring, load, medium, temperature, or motion information.
4. Set Acceptance Priorities

Clarify the dimensions, surface condition, flatness, or documentation that decide assembly acceptance.

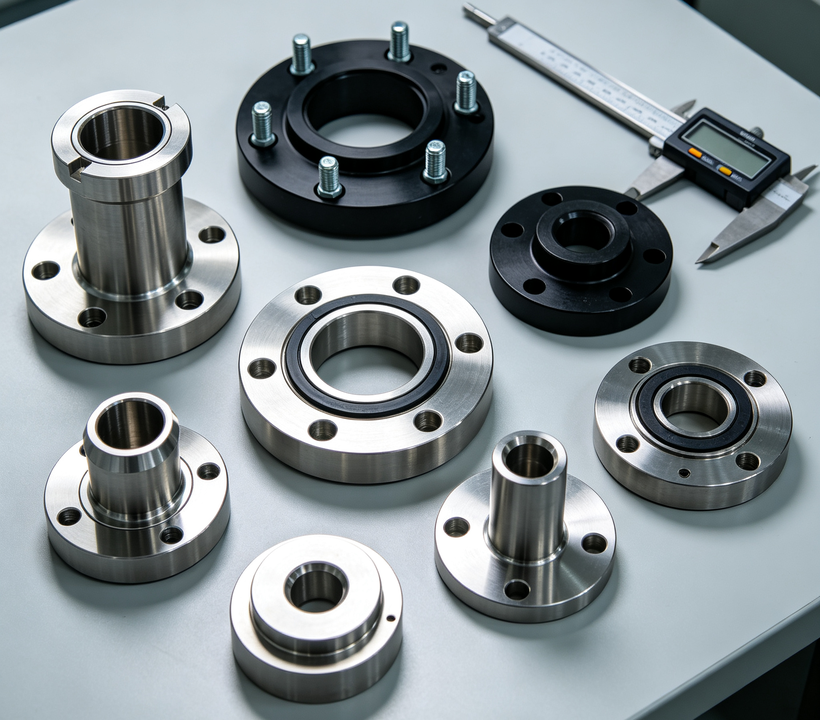

Flanged Parts Built Around the Connection

Custom CNC flanged components create controlled interfaces between equipment parts. A flange may provide a mounting face, a locating pilot, a bolt pattern, a bore, a sealing land, or several of these functions in one component.

We produces drawing-based flanged hubs, adapters, covers, discs, collars, and housing interfaces for OEM and industrial assemblies. The review begins with the mating relationship and working condition, so the quoted part is evaluated as an interface instead of as an isolated profile.

For rotational parts with controlled bores and outside diameters, review CNC Turning Parts.

CNC Flanged Components by Function

For multi-face geometry, pockets, and drilled patterns, connect to CNC Milling.

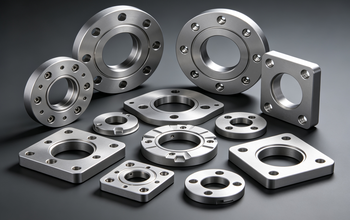

Mounting Flanges

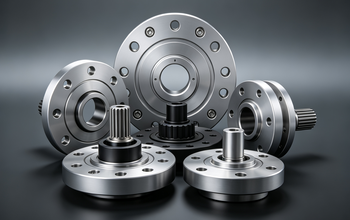

Flanged Hubs

Flange Adapters

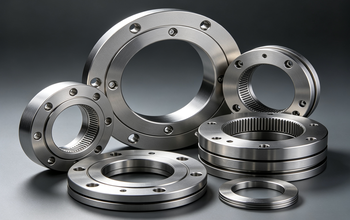

Flanged Collars

Discs

WHY WORK WITH US

CNC Flanged Component Project References

;

1 -

Face and Datum Review

Confirm which face, bore, pilot, or hole pattern establishes the functional assembly reference.
Bolt Pattern Coordination
Sealing-Sensitive Detail
Drawing-Based Inspection

CNC Flanged Component Project References

Feature	Typical Project Reference	Review needed
Bore / pilot	+/-0.01 to +/-0.03 mm	Confirm mating diameter, fit, and measurement method.
Bolt pattern position	+/-0.05 to +/-0.10 mm	Confirm datum, fastener type, and mounting requirement.
Face flatness	0.03 to 0.10 mm project target	Confirm face size, sealing or mounting function, and inspection method.
Face-to-bore relationship	0.02 to 0.05 mm project target	Confirm functional axis and assembly sensitivity.
Surface roughness	Ra 0.8 to 3.2 um	Confirm sealing, contact, wear, or cosmetic requirement.

These are project-reference values, not unconditional factory guarantees. Final feasibility depends on material, diameter, thickness, face function, geometry, workholding, quantity, finish, and inspection method. Submit the drawing and mating context for confirmation.

Material Type

Material	When It Is Commonly Considered
Aluminum	Lightweight shafts, spacers, housings, collars, and non-heavy-wear assemblies
Stainless Steel	Corrosion-resistant fittings, shafts, pins, sleeves, and exposed mechanical interfaces
Carbon and Alloy Steel	High-strength shafts, pins, drive components, and wear-related mechanical parts
Brass and Bronze	Bushings, fittings, connectors, low-friction interfaces, and corrosion-sensitive components

MATERIALS AND APPLICATIONS

Industrial Machinery

Mounting flanges and end caps can position components, close housings, transfer load, or create serviceable interfaces. Share the assembly drawing, service access, load direction, and any alignment-critical bore or pilot dimensions for a focused manufacturing review.
Fluid and Process Equipment

Flanged adapters, covers, and connection parts may rely on face condition, gasket or O-ring features, fastening, and material compatibility. Clearly identify the medium, pressure-related design requirements, temperature, sealing method, and mating standard; final suitability must be confirmed by your engineering requirements.
Automation and Motion Equipment

Flanged hubs, motor mounts, bearing interfaces, and adapter plates can establish a repeatable relationship between a shaft, housing, actuator, and fasteners. Provide the pilot, bore, bolt pattern, load path, and alignment need so the review protects the complete interface.
Materials and Finish Chosen for the Interface

Aluminum may support lightweight housings and mounting parts; carbon or alloy steel may suit strength and load paths; stainless steel can be considered for corrosion exposure; brass or copper alloys may be selected for particular fluid, electrical, or corrosion-related needs. State the mating material, service medium, load, temperature, and finish requirement so material and surface choices support the actual flange function.
For related drawing-based parts across the same assembly, explore CNC Machined Components.

A Controlled Route from Drawing to Shipment

1. Technical Input

You provide the drawing, CAD file, material, quantity, mating details, and flange function.

2.Interface Review

We clarify critical faces, bore or pilot, hole pattern, material, finish, and inspection priorities.

3. Quotation Confirmation

The quotation is prepared from the reviewed project information and open technical points.

4. Production and Quality Control

Production follows the approved drawing and agreed checks for functional interface characteristics.

5. Packing and Shipment Preparation

Confirm quantity, packing, documentation, and receiving requirements before dispatch.

CNC Flanged Components FAQ

Q Can samples be made before repeat orders?

Samples can help verify mounting, bore fit, fastener access, face contact, and assembly sequence before repeat production. Share the initial and expected repeat quantities plus the checks required for sample acceptance.

Can you make flanged hubs or adapters?

Yes. Drawings for flanged hubs and adapters should show the bore, pilot, shoulder, bolt pattern, threads, mating components, and torque or load requirements. This allows the manufacturing route and inspection priorities to be considered around the actual interface.
How should I specify a flange face?

State whether the face is for mounting, sealing, axial location, load transfer, or appearance. Then identify its datum, flatness or surface expectation, mating part, fasteners, and any gasket or contact condition. This gives the drawing review a clear functional target.
Can a flanged part include an O-ring groove?

A groove can be evaluated from the drawing when its dimensions, face relationship, material, mating component, and seal type are defined. Include the groove location and required surface condition so the review can assess the interface as a system. Final sealing performance remains an application-level engineering decision.
Can you machine flanges with custom bolt patterns?

Yes. Provide the hole quantity, pitch circle, hole type, thread or clearance requirement, counterbore or countersink, datum, and mating fastener information. A bolt pattern must be reviewed with the locating feature and assembly access, not as a separate drilling operation.

Start with the Flange Drawing and Mating Interface

Upload your drawing, CAD file, or sample and include the flange function, material, quantity, mating part, face, bore or pilot, hole pattern, fasteners, seal details, finish, and inspection requirements. We will review the information needed for a drawing-based CNC flanged component quotation.
