For a useful fine-blanking review, provide more than the finished outline. Send the current drawing, CAD if available, material grade and thickness, critical profile callouts, flatness requirement, mating-part information and any edge condition that affects use. Indicate whether the component is later hardened, coated, ground, machined, assembled or packed against a cosmetic surface. Also share expected demand, project stage, sample requirements and drawing revision status. These details let a supplier compare the total route and avoid quoting a cutting method that looks economical but leaves the wrong finishing or assembly risk.
| RFQ information | Why it matters for fine blanking | What it helps you avoid |
| Functional drawing views | Sections, datum scheme, critical edges and mating interfaces. | A part that looks simple in plan view but has undefined functional relationships. |
| Material condition | Grade, thickness, temper, coating and any heat-treatment sequence. | An edge or flatness expectation that is incompatible with material behavior. |
| Acceptance evidence | Edge condition, burr direction, profile, flatness and sampling needs. | Different interpretations between quotation, production and receiving. |
| Program information | Demand, revision risk, tooling status and lifetime expectation. | A tooling decision made without a realistic total-program comparison. |
| Secondary work | Deburring, grinding, machining, finishing, joining or packing requirements. | Paying twice for an edge or surface condition that could be planned earlier. |
| Characteristic | Project reference | Confirmation needed |
| Edge function | A sheared edge may serve as a bearing, locating, engagement or assembly surface. | Contact area, mating component, burr direction and permitted finishing. |
| Profile relationship | Outer contour, holes, slots and tabs may need controlled relationships. | Datums, feature callouts and functional stack-up. |
| Flat part condition | Flatness can matter before later assembly, coating or secondary work. | Measurement area, free-state condition and receiving criterion. |
| Material route | Material condition influences deformation, edge behavior and later processing. | Grade, thickness, temper, coating and heat-treatment sequence. |
| Tooling decision | Higher-precision tooling may be justified when it removes a downstream risk. | Demand, revision exposure, target use and total-process comparison. |
Use Metal Stamping as the parent process page. Conventional stamping may suit a part where speed and a basic cut edge are sufficient; fine blanking becomes relevant when the edge and flat condition must be assessed as functional requirements.
For a part that stays carrier-supported through a repeated station sequence, Progressive Die Stamping may be the more appropriate production concept. The correct comparison is based on the part’s required final condition, not keyword similarity.
Where the part still needs a precision interface or a non-stamping feature, CNC Machining Service can be considered as a complementary route. Define the datum that passes from the blanked part to the machined feature before quoting.
Material is not only a purchasing line item in a fine-blanking project. Its grade, thickness, temper, coating and later heat treatment can affect edge behavior, distortion risk and the condition delivered to the next operation. State whether the component requires corrosion protection, hardness treatment, grinding, machining, joining or a protected packing orientation. The useful outcome is a defined handover condition: which surfaces remain functional, which edges need protection, and which datum the next process must use.
Clarify whether the receiving condition is as-blanked, pre-finish or final. This prevents an inspection result from being judged against the wrong stage of the part.
Identify the surfaces that locate, clamp or engage in the following operation. A clear datum handover reduces rework discussions when the component reaches assembly.
When you search for stainless steel fine blanking or carbon steel fine blanking, the useful question is not the material name alone. Confirm the grade, thickness, supplied condition, coating and any later heat treatment together with the functional edge and flatness zone. Those inputs determine whether the proposed material route supports your drawing and receiving condition.
For high-volume fine blanking or repeat-production sourcing, compare the whole program: tooling exposure, revision risk, material use, secondary finishing, inspection evidence and packing. Volume can support a dedicated route, but it does not replace the need to confirm that the edge and profile actually serve a functional purpose.

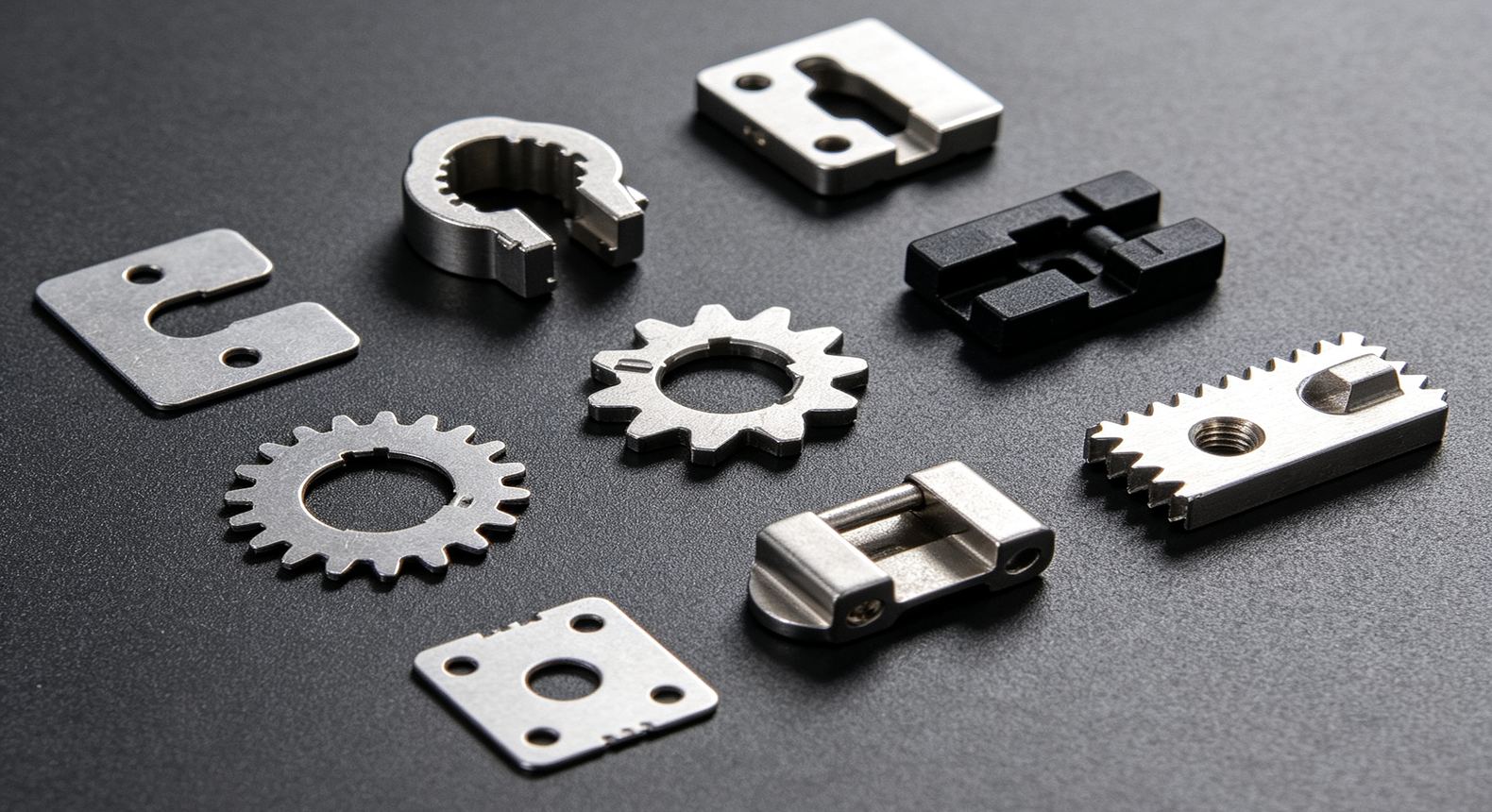

Fine blanking for latches, retainers and motion-interface parts should start with the mating action. Show the engagement path, contact area and direction of load or movement. That turns an application search into a reviewable component requirement instead of an unsupported industry claim.
If you are comparing fine blanking flatness or hole-to-profile control, define the measurement zone, datum and acceptance condition. The drawing must distinguish a functional relationship from a general inspection preference before a supplier can compare a suitable process route.
For deeper decision support after this page is published, use Fine Blanking Case Study for a drawing-to-release example, Fine Blanking vs Conventional Stamping for process selection, and Fine Blanking Design Guide for material and feature planning. Add each live link only after its URL is published and verified.

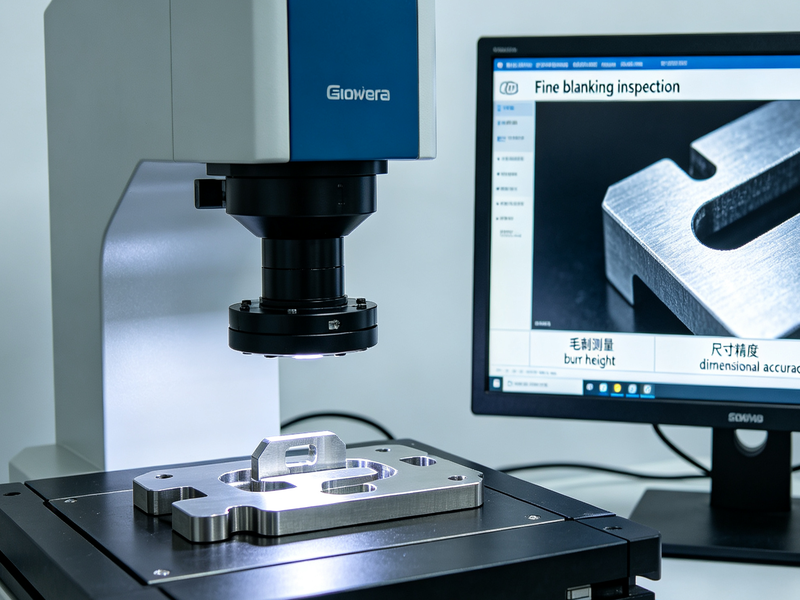

A useful inspection plan starts with the part function. Identify the profile, hole, edge, flatness area, burr direction and surface condition that affect fit or movement. Then state the datum scheme, evidence needed for first samples, any packaging orientation and the receiving condition.
Fine blanking is worth evaluating when the sheared edge, profile relationship or flatness directly affects assembly, motion, engagement, sealing or a later process. It is not automatically better than conventional stamping. Hardware SP can review the drawing, material, mating function, demand and secondary work to determine whether the added tooling approach is commercially justified for your program.
Send the current drawing and CAD if available, material grade and thickness, critical edge or profile callouts, flatness requirement, mating information, demand and project stage. Include the burr-direction expectation and any finishing, heat treatment, coating, machining, assembly or packaging requirement. These inputs make it possible to compare the full production route rather than quoting only the outline cut.
Ordinary stamping can be the right route when a conventional cut edge and normal finishing are acceptable. Fine blanking is considered when the edge and profile need to function more like a controlled interface, often with greater attention to part support, edge condition and flatness. The correct route depends on your material, geometry, acceptance criteria, downstream work and program economics.
It can reduce a secondary operation when the required finished edge, profile and flatness are compatible with the fine-blanking route. It should not be assumed to remove all secondary work. Compare the current route with the desired as-blanked condition, then identify which features still require machining, finishing or treatment. This gives you a more reliable total-cost comparison.
Issue the revised drawing with a clear revision identifier and state which functional feature changed. A change in profile, material, thickness, edge requirement or flatness zone may affect the tool concept, inspection method and downstream datum. Hardware SP should review the manufacturing consequence before tooling release or modification, then align sample and acceptance evidence to the approved revision.
Yes, when the stamped profile provides the right starting form but a later feature needs machining or another process. Define the handover condition and the datum used by the next operation before quoting. This lets the blanked and machined features be evaluated as one component requirement, rather than as unrelated supplier handoffs.
