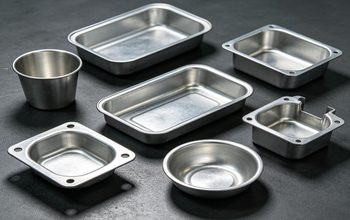

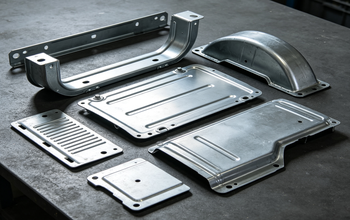

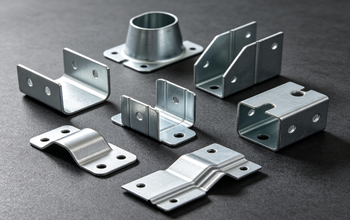

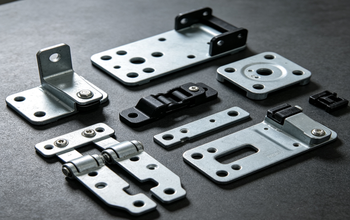

They are not a claim that every large or formed part requires transfer tooling; the decision remains drawing-specific.
English
| Buyer concern | What we review |
| Datum and hole position | Review mounting faces, datums, hole location, threads, and relationship to mating parts. |
| Pockets and tool access | Check corner radii, depth, wall thickness, access direction, and surfaces that need machining. |
| Thin walls and flatness | Identify deformation-sensitive areas and the surfaces that decide fit or sealing. |
| Finishing and assembly | Confirm finish, edge break, masking, cosmetic zones, and inspection priorities. |
A transfer-die quotation needs more than part dimensions. Send the current 2D drawing and, when possible, a 3D model, section views and assembly context. Identify the material grade, thickness, formed depth, critical faces, hole positions, trim requirements, visible surfaces and any constraints on the order of forming. Provide expected volume, project stage, tooling status, sample needs and any secondary processes. If the part mates to another component, show the relevant interfaces. These inputs let the technical review consider how the part will be held, moved, reoriented and checked between operations.
| RFQ input | What to provide | Decision it supports |
| Part definition | Drawing, CAD, section views, formed profile and current revision. | Whether the part needs free movement, reorientation or multi-stage forming. |
| Material and blank | Grade, thickness, coating or surface condition, and blank information if available. | Material flow, forming sequence, trim strategy and handling discussion. |
| Functional interfaces | Critical faces, hole positions, mating details, sealing, fastening or visible-side requirements. | Datums, tool sequence, inspection priorities and post-form condition. |
| Program context | Demand, program stage, expected repeat ordering and target use environment. | Tooling investment and route comparison against progressive, deep draw or machining. |
| Release needs | Samples, dimensional evidence, labels, packing orientation and secondary operations. | A project-specific try-out and final-release route. |
Transfer Die Stamping can be a suitable route when the part must leave the carrier strip early and needs controlled movement between operations. Before publishing this page, confirm that the required transfer, tooling and try-out capability is available for the project type.
Progressive Die Stamping may be more efficient when the part can remain attached to a stable strip through a repeat station sequence. Compare both routes before a tooling decision, especially when a large or complex part may still be carrier-feasible.
Deep Drawn Parts should be assessed when material flow into a cup, shell or deeper form becomes the central manufacturing challenge. A transfer route may be part of that answer, but deep drawing needs its own geometry and material review.
Fine Blanking is a separate route to evaluate when controlled edges or flatness are central to the part function, while Four Slide Stamping may suit smaller parts with multi-directional forming needs. Neither should be presented as a default substitute for transfer handling; both require their own capability and part review.
CNC Machining Service is relevant where the project needs a solid-stock alternative, machined interface, pilot part or an option that does not justify stamping tooling. The link should support a real sourcing decision, not simply add another manufacturing term.
For the parent process context, link to Metal Stamping. This helps a buyer understand where transfer die stamping sits within a wider custom-stamping requirement.
A revision can affect blank shape, transfer grip, station sequence, tool clearance or handling path; clarify the release status before tooling action.
| Characteristic | Project reference | Confirmation needed |
| Blank condition | A blank or preformed workpiece is considered as an individual part between stations. | Initial blank, material state, edge condition and handling method. |
| Feature sequence | Draw, form, trim, pierce or flange stages are arranged around free-part movement. | Geometry, access, material flow, tool concept and station-to-station orientation. |
| Critical interfaces | Key faces, holes, profiles and assembly features are referenced from functional datums. | Measurement approach, formed condition and acceptance criteria. |
| Surface protection | Visible or functional formed surfaces are identified before handling and secondary work. | Contact points, packaging, finish sequence and cosmetic requirement. |
| Tooling release | Try-out, sample and revision expectations are agreed for the particular program. | Tooling status, evidence required, ownership and change-control responsibilities. |
Describe any hardware insertion, joining, machining, finishing or packing orientation in relation to the formed part. A clear handoff condition reduces the risk that a feature is correct before transfer but unsuitable for the next process.
Identify where material stretch, cosmetic appearance, sharp edges, coating integrity or exposed surfaces matter. The order of drawing, trimming and finishing may change the result seen at assembly.
The material choice and the sequence of operations should be reviewed together. Carbon steel, stainless steel, aluminum, copper, brass or another drawing-specified material may behave differently during forming and handling. Thickness, temper, coating, draw sensitivity and surface condition affect how a blank moves through a transfer route. If the final component needs plating, deburring, heat treatment, fastening, welding or assembly, state it early. Those requirements can influence which surfaces need protection and which datums must survive to the next stage.
A transfer route introduces intermediate handling conditions that should be visible in the project definition. State which formed surfaces, edges, holes and datums must remain protected or controlled as the part moves through the sequence. If you require first samples, dimensional evidence, material information, part identification or specific packaging, add those needs to the RFQ. The inspection plan can then be linked to how your component is assembled or received, rather than treated as a generic quality statement.
Ask for a transfer-die evaluation when the part cannot remain reliably attached to a carrier strip through the required forming sequence, or when it needs deeper forms, reorientation, access to multiple faces or more open station handling. Hardware SP can review the drawing, material, formed geometry, demand and program stage to determine whether transfer, progressive, deep draw or another route deserves comparison. The decision should be made before tooling is fixed.
Send the current drawing, CAD if available, material and thickness, formed depth, critical interfaces, order or annual demand, project stage, finish, secondary operations and required quality evidence. Include section views, samples or mating details when the part’s function is not obvious from one view. For a transfer route, it is especially useful to identify which surfaces must be protected and how the finished part is oriented in your assembly.
Transfer stamping moves individual blanks or partially formed parts between stations, while progressive stamping keeps the part connected to a carrier strip until final separation. That difference changes the available forming access, handling method, material utilization and tooling concept. Progressive may suit a stable strip-supported part; transfer may suit a part that needs freedom after leaving the strip. Neither is inherently the better process without reviewing the part and program.
Possibly, but volume alone does not decide the route. A smaller program with geometry that cannot be carried in a strip may still need transfer-style handling, while another complex part may be better served by another process or an early validation method. Share demand, expected program life, revision risk and the functional reason for the geometry. A useful proposal compares the total tooling and production path against the real purchasing plan.
A formed-feature change can alter the blank, draw sequence, transfer grip, station orientation, trim access or protected-surface requirement. Identify the revised drawing and the feature’s functional reason before tooling is released or changed. Hardware SP should then review the effect on the transfer path and the sample or inspection requirement, so the change is evaluated as a manufacturing decision rather than treated as a simple drawing edit.
Yes, when the finished component needs a process that stamping alone does not provide, such as a machined interface, secondary joining, finishing or a related component made by another route. The useful approach is to define the condition of the stamped part at each handover and the datum used by the next process. This makes the link to CNC machining or another service relevant to the assembly, not merely an internal-link opportunity.
