Nickel plating stamped parts are precision stamping components finished through electrolytic or chemical nickel deposition, including stamped washers, electrical terminals, metal shrapnels, and custom hardware. Common substrate materials cover stainless steel, carbon steel, and copper alloys. Unlike conventional machined parts, stamped components feature ultra-thin profiles, irregular cutting edges, and microscopic stamping burrs, which impose stricter requirements on coating uniformity and interfacial adhesion during surface finishing.

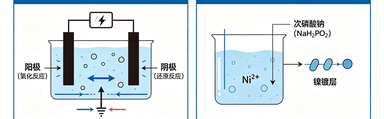

Electrolytic nickel plating is the dominant process for mass production of standard nickel plating stamped parts and stamped washers. This method uses nickel plates as the anode and stamped workpieces as the cathode. Under controlled DC current, nickel ions in the plating solution uniformly deposit onto metal surfaces.
It features fast deposition rates and low operational costs, perfectly supporting high-volume production for general stamped hardware. In comparison, electroless nickel plating relies entirely on chemical redox reactions without electrical power input. It delivers consistent coverage on concave surfaces, convex edges, and blind dead zones, making it ideal for ultra-thin, high-precision stamped washers and complex structural components.
On-site manufacturing practices at Hangzhou Shengpeng Factory reveal that thin stamped washers present unique plating challenges that thick machined parts do not. Ultra-thin workpieces ranging from 0.2mm to 0.5mm are susceptible to minor deformation during pre-treatment and plating cycles. Residual stamping oil trapped within fine edge slits cannot be fully removed through conventional degreasing procedures. This hidden contamination frequently causes missing plating, surface blistering, and poor coating adhesion. It remains the leading cause of non-conforming nickel plating stamped parts in mass production, necessitating customized pre-treatment and process optimization for thin stamping workpieces.
Electrolytic and electroless nickel plating represent the two foundational processes for finishing nickel plating stamped parts and stamped washers. Their inherent performance differences directly influence product quality, operational lifespan, and applicable industrial scenarios. Selecting the appropriate plating method based on functional requirements is essential for balancing manufacturing cost and component performance. This application-oriented selection principle has been fully validated through 15 years of mass production practices at Hangzhou Shengpeng Factory, covering thousands of customized stamped washer projects.

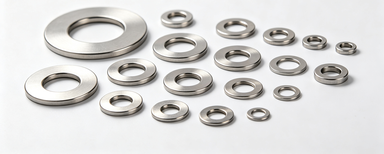

Electrolytic bright nickel plating serves as the mainstream solution for decorative and general industrial stamped washers. It produces a smooth, mirror-bright silver-white coating with excellent surface flatness and cost-efficiency. The adjustable coating thickness ranges from 2μm to 10μm, enabling high-speed, large-scale manufacturing.
This process is widely adopted for standard stamped washers, cabinet hardware, and common structural stamping components. Although minor thickness discrepancies exist between edges and flat surfaces, such deviations fall within standard industrial tolerances and do not affect assembly or functional performance.
Electroless nickel plating is engineered for high-precision stamped parts and ultra-thin stamped washers with stringent tolerance standards. Compliant with ASTM B905-20 industrial specifications, this process maintains coating uniformity errors below ±0.2μm, perfectly accommodating intricate thin-stamped geometries.
It eliminates current dead zones and edge missing plating commonly seen in electrolytic processes, while delivering higher surface hardness and superior salt spray resistance.
The primary tradeoffs are slower production throughput and higher processing costs, so it is primarily applied to high-end electronic terminals and automotive precision washers rather than commodity-grade stamped components.
Matte nickel plating is a specialized finishing process designed for industrial-grade stamped washers. It yields a non-reflective, uniform surface with exceptional wear resistance and friction durability.
This finish eliminates light reflection interference and visible scratch marks during mechanical operation, making it ideal for moving mechanical components and optical equipment parts.
At Hangzhou Shengpeng Factory, we typically recommend matte nickel plating for friction-intensive stamped washer applications to enhance operational stability and extend component service life.
Nickel plating effectively resolves the inherent performance limitations of bare stamped metal, establishing itself as the preferred surface finishing technology for medium and high-end stamping components and stamped washers. Compared with untreated raw metal, nickel plating significantly enhances corrosion resistance, mechanical wear resistance, electrical stability, and aesthetic consistency.
Summarized from years of mass production data and real customer feedback at Hangzhou Shengpeng Factory, these comprehensive functional advantages render nickel plating irreplaceable in modern industrial stamped component manufacturing.

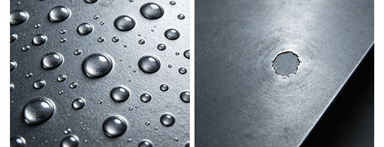

The dense nickel coating forms a reliable physical barrier that shields stamped washer substrates from airborne moisture, oxygen, and corrosive contaminants. Uncoated 304 stainless steel stamped washers develop obvious edge rust after only 72 hours of outdoor exposure, while qualified nickel plating stamped parts sustain 500+ hours of neutral salt spray testing without degradation.
Additionally, nickel plating increases surface hardness of thin stamped washers, reducing abrasive wear during assembly and continuous mechanical operation. This protective effect effectively prevents premature component failure caused by long-term friction and environmental corrosion.
Nickel plating stamped washers deliver stable electrical and thermal conductivity, a key reason for their widespread adoption in electronic assemblies. Unlike zinc and chrome plating, nickel coatings rarely form insulating oxide layers during long-term service, ensuring consistent signal transmission for stamped terminals and contact washers. Beyond functional performance, nickel plating supports customizable finishes including bright, matte, and semi-bright surfaces. It balances industrial practicality and visual uniformity, delivering superior overall cost performance for stamped washer and component surface finishing.
Nickel, zinc, and chrome plating are the three most prevalent surface finishing processes for industrial stamped washers and stamped components. Each technology possesses unique strengths and targeted application boundaries.
To help customers make data-driven selection decisions, Hangzhou Shengpeng Factory has sorted core performance and cost discrepancies based on 2025 mass production records and third-party authoritative test reports. The following comparison table intuitively highlights the advantages and limitations of nickel plating stamped parts relative to alternative plating solutions.
Performance Dimension | Nickel Plating | Zinc Plating | Chrome Plating |
Salt Spray Resistance | 500–600 hours | 120–200 hours | 300–400 hours |
Surface Hardness | High, strong wear resistance | Low, easy to wear | Ultra-high hardness |
Conductivity Stability | Excellent, suitable for electronic parts | General, easy to oxidize and fail | Poor, not suitable for conductive components |
Coating Uniformity | Excellent, fit complex stamped parts | General, easy to have edge thickening | Poor, obvious dead zone missing plating |
Production Cost | Medium | Lowest | Highest |
Applicable Scenarios | Precision electronics, automotive, high-end hardware | Ordinary outdoor structural stamped parts | Mechanical wear-resistant decorative parts |
Cross-process comparison clearly defines the applicable scope of each finishing method. Zinc plating features the lowest manufacturing cost but mediocre corrosion and wear resistance, only suitable for low-standard, non-critical stamped washers. Chrome plating provides exceptional surface hardness yet suffers from high costs and poor coating uniformity, making it incompatible with thin precision stamped components.
Nickel plating achieves an optimal balance of corrosion resistance, conductive stability, and coating consistency, standing as the most cost-effective solution for medium-to-high-end stamped washers used in precision sealing and electronic connection applications.
Backed by 15 years of on-site manufacturing experience at Hangzhou Shengpeng Factory, edge missing plating and local coating blistering are the two most frequent quality defects for thin nickel plating stamped washers. During mass production of 0.2mm–0.5mm ultra-thin stainless steel stamped washers, micro stamping burrs and residual machining oil often accumulate on slitting edges.
Conventional degreasing and pickling processes fail to eliminate these microscopic contaminants thoroughly. Insufficient pre-treatment weakens coating adhesion, resulting in blistering and peeling after 48-hour salt spray testing and causing batch-level product rejection.
Our factory developed a optimized full pre-treatment workflow to resolve these recurring mass-production defects. We incorporated an 8-minute ultrasonic degreasing process to remove residual oil trapped in micro edge gaps that standard soaking cleaning cannot eliminate. We also adopted low-pressure micro-polishing to deburr sharp edges without compromising the flatness and precision tolerance of ultra-thin stamped washers.
Meanwhile, we extended pre-plating activation duration by 3 minutes to boost substrate surface activity and strengthen molecular bonding between the nickel coating and metal substrate.
After systematic process debugging and parameter calibration, the mass production quality of nickel plating stamped washers achieved remarkable improvement. The upgraded workflow ensures complete edge coating coverage with zero missing plating and consistent thickness distribution. The salt spray test pass rate of bulk products increased from 72% to 99.5%, thoroughly eliminating coating blistering and peeling failures.
This standardized pre-treatment procedure is now officially implemented as the core manufacturing standard for thin stamped washer nickel plating at Hangzhou Shengpeng Factory, guaranteeing stable and reliable batch delivery quality.
In 2024, Hangzhou Shengpeng Factory undertook a customized nickel plating project for household appliance stamped washers, serving a reputable domestic electrical equipment manufacturer. The project components are 0.3mm thick 304 stainless steel stamped washers, designed for internal sealing and conductive connection in home electrical devices.
The customer issued strict technical specifications: bright electrolytic nickel plating, 3–5μm uniform coating thickness, stable electrical conductivity, and 500-hour neutral salt spray resistance, with a steady monthly order volume of 80,000 pieces for long-term batch supply.
During initial trial production, we encountered prominent coating thickness inconsistency on the curved edges of nickel plating stamped washers, with tolerance errors exceeding ±1.2μm and failing customer quality inspection. Combined with rich on-site processing experience, we confirmed that unstable plating bath parameters and unreasonable workpiece fixture positioning caused uneven current distribution on irregular washer edges.
We optimized core process parameters, stabilizing plating bath pH at 4.2–4.6 and maintaining a constant tank temperature of 55℃. We also redesigned hanging fixtures to ensure uniform current coverage across all edges and dead zones of stamped washers.
After multiple rounds of trial production and precise parameter calibration, all nickel plating stamped washers fully complied with customer technical standards, with thickness tolerance steadily controlled within ±0.5μm. Final batch testing verified that the finished products achieved 520-hour rust-free salt spray resistance, surpassing the required 500-hour standard.
All units passed conductivity testing with zero defects, lifting the mass production yield to 98.8%. This project successfully passed the customer’s strict factory audit, established a stable long-term partnership, and accumulated replicable mature process parameters for mass production of household appliance-grade stamped washers.
Consistent quality output for nickel plating stamped washers depends on a standardized full-process quality control system. Integrating ASTM industrial standards and 15 years of frontline manufacturing experience, Hangzhou Shengpeng Factory has established complete quality specifications covering pre-production preparation, in-production monitoring, and post-production inspection.
This systematic quality management mechanism effectively prevents batch defects and ensures stable, uniform quality for mass-produced nickel plating stamped parts and washers.
Pre-production quality control focuses on raw material inspection and process parameter debugging. Our quality team strictly verifies stamped washer substrate material, flatness, and surface condition to reject deformed and defective blanks. We test and adjust plating solution concentration, pH value, and working temperature to maintain optimal plating conditions.
For new customized stamped washer orders, we conduct 3–5 trial production runs to validate process parameters before official mass manufacturing.
In-production quality control emphasizes real-time process monitoring and standardized operation. All pre-treatment procedures, including degreasing, micro-polishing, and surface activation, are executed in strict accordance with standardized parameters.
Technicians adjust plating duration and current intensity based on stamped washer thickness and structural complexity to ensure uniform coating deposition. Hourly random sampling inspections are mandatory to detect surface blistering, missing plating, and dark spots, enabling timely correction of abnormal quality risks.
Post-production inspection covers comprehensive dimensional verification and performance testing. Professional coating thickness gauges are used to measure nickel layer thickness on stamped washers. Each production batch undergoes sampling salt spray tests and coating adhesion tests to verify durability and bonding performance.
All non-conforming products are fully screened and isolated. We archive all test data to build traceable production records, supporting continuous process iteration and quality optimization for nickel plating stamped washers.
A1: Electrolytic nickel plating utilizes DC power for metal deposition, offering fast production speed and low operational costs, ideal for mass production of general stamped structural parts. Electroless nickel plating relies on pure chemical reactions without electricity input, delivering ultra-uniform coating thickness and higher surface hardness. It is primarily used for high-precision, thin, and irregular stamped parts with strict tolerance requirements.
A2: Based on Hangzhou Shengpeng Factory’s internal manufacturing standards and industrial specifications, nickel coating thickness varies by application scenario. Decorative stamped washers adopt 2–5μm thin nickel coatings. Functional industrial sealing washers use 5–8μm coatings to balance anti-corrosion performance and assembly precision. Stamped washers deployed in humid, corrosive working environments require 10–15μm thickened nickel plating to ensure long-term operational stability.
A3: Standardized, precision-controlled nickel plating will not compromise the dimensional tolerance of ultra-thin stamped parts. Professional manufacturers like Hangzhou Shengpeng Factory stabilize coating thickness errors within ±0.5μm through precise parameter tuning. For ultra-precision stamped components with micrometer-level tolerance requirements, electroless nickel plating is recommended for superior coating uniformity and zero dimensional deviation.
A4: Edge blistering and peeling are primarily caused by incomplete pre-treatment. Residual stamping oil, micro burrs, and oxide residues on stamped washer edges weaken coating adhesion during deposition. After years of mass production verification, Hangzhou Shengpeng Factory confirms that optimized ultrasonic degreasing, edge micro-polishing, and standardized pre-plating activation can completely eliminate such edge plating defects.
A5: Yes. Nickel plating outperforms zinc plating in corrosion resistance, wear durability, and long-term conductive stability. In household appliance and industrial operating environments, the service lifespan of nickel plating stamped washers is 2–3 times longer than zinc-plated equivalents. Despite slightly higher upfront costs, nickel-plated stamped parts deliver superior long-term cost performance and operational reliability.
