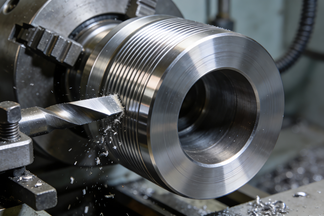

To ensure that the processed turned precision parts can function properly during assembly, several measurable technical parameters must be determined. These parameters directly affect the fit, wear condition and performance of the parts.
The diameter tolerance is the most critical dimension in any turning part. The standard accuracy grades range from IT5 to IT7, corresponding to ±0.005 millimeters to ±0.015 millimeters. For high-end hydraulic or aerospace applications, IT5 or more stringent accuracy grades are required.
The surface roughness should be specified based on the sliding or sealing function - the Ra value of the bearing surface is 0.4 micrometers, and the Ra value of non-critical areas can be up to 1.6 micrometers. The concentricity between the turning diameters must be maintained within 0.01 millimeters to avoid rotational imbalance.
Different materials exhibit significant differences in response to cutting tools.
Bronze and aluminum alloys have excellent machinability and are highly suitable for large-scale production.
Stainless steel requires sharper cutting tools and a lower cutting speed.
Titanium and polyetheretherketone are used in the medical field, but require special coolant and tool coatings.
In addition to the materials, batch consistency is measured by CPK. A CPK of ≥1.33 indicates that 99.99% of the parts are within the tolerance range. For long-term orders, please request statistical process control data.
Although these parameters are usually set by the mechanics, they do affect the cost and surface finish. For smaller diameter parts, the lathe typically raises the spindle speed to 8000 revolutions per minute or higher. With a feed rate of 0.05 to 0.15 millimeters per revolution, the speed ensures both speed and surface finish.
Different industries have their own specific requirements for tolerances, materials and surface treatments. Understanding these aspects will help you select the appropriate precision-turned parts.
Hydraulic valve cores are a typical example of high-precision turned parts. Just a few microns of clearance is sufficient to control the oil flow. Extremely high surface requirements.
In medical implants, turned parts are made of titanium or stainless steel. For fiber optic connectors, the metal sleeves require highly polished internal tapering treatment to minimize signal loss - any burrs or scratches would compromise the transmission quality.
The motor shaft of the unmanned aerial vehicle is a slender component. Its radial vibration must be controlled within ≤ 0.002 millimeters to avoid vibration at high rotational speeds. Markings are required to achieve balance. On the other hand, the fuel injection needle has a precise conical sealing surface that matches the seat surface. The surface must be completely free of circumferential scratches. Both applications require 100% inspection, but the methods are different: dynamic balance of the shaft, and pressure measurement of the injection needle.
The size of the small brass gear shaft used in the instrument is less than 0.5 millimeters. These turned parts usually have built-in small gears - the gear teeth can be cut out by using a live tool during the processing on a CNC lathe. The thermal plug for electronic devices is a component that has undergone copper turning treatment, and its exterior has a knurled pattern. The knurled design can provide force when it is pressed into the plastic housing under heat. The pitch and pattern of the knurled design are clearly marked on the drawing.
Buyers of turned parts frequently encounter issues like deformation, chatter marks, or missing certifications. Below we address the most common pain points with actionable solutions.

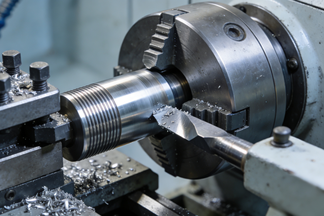

Thin-walled pipes or small parts are prone to deformation under the action of a conventional three-jaw chuck. As a result, they will become non-circular after being released.
Solution: Use soft jaws that are precisely machined to the shape of the part, and replace the chuck with a headstock that applies uniform radial pressure. For very small parts, a lathe with a guide sleeve can support the material at the position close to the cutting point, thus avoiding deformation. Before formal production, it is essential to measure the roundness of the sample parts.
During the turning process of slender components, vibrations are prone to occur, leaving marks on the surface. These marks not only look bad but also form stress concentration points. To avoid this situation, Hangzhou Shengpeng will use a stable support platform. Alternatively, a CNC lathe equipped with a variable spindle speed control function can eliminate vibrations.
On the lathe, the guide bushing itself plays the role of a moving support. If the tremor phenomenon still exists, the cutting depth can be appropriately reduced or the feed speed can be slightly increased - the process engineer of the supplier should record these adjustment measures.
Hard turning refers to the processing carried out after the part has undergone heat treatment. This method eliminates the need for grinding steps but requires CBN blades and sturdy machine tools.
It is necessary to inquire with the supplier whether they have experience in performing hard turning for your specific alloy.
For subsequent processes such as thread machining, knurling, or cross-drilling, it is advisable to use live tools or Y-axis lathes for "one-time clamping" production to avoid eccentricity caused by re-clamping.
For aerospace and medical orders, the complete traceability from raw materials to finished products is absolutely non-negotiable. Request to provide material test reports that include thermal numbers and unique batch identifiers for each batch.
Q1: What is the typical lead time for a custom turned precision part?
Lead times vary by complexity and batch size. Simple parts made from aluminum or brass can ship in 2–3 weeks for small batches (50–500 pcs). Complex stainless steel parts or those requiring secondary operations (e.g., knurling, cross‑drilling) may take 4–6 weeks. Many suppliers offer “quick‑turn” prototyping in 5–7 business days.
Q2: How do I measure surface roughness on internal bores?
Internal bores require a profilometer with a small‑radius stylus or optical methods (white light interferometry). For deep bores (depth >3× diameter), replica techniques are used: cast a replica of the surface and measure externally. Always specify the measurement standard (e.g., ISO 4287) and the evaluation length.
Q3: What is the difference between turned precision parts made on a Swiss lathe vs. a conventional CNC lathe?
Swiss lathes (also called sliding headstock lathes) guide the bar stock through a bushing very close to the cutting tool. This provides exceptional support for long, thin parts and allows turning diameters as small as 0.2 mm. Conventional CNC lathes are better for larger diameters and shorter lengths. Swiss lathes typically have faster cycle times for small components.
Q4: Can you turn precision parts from PEEK or other plastics?
Yes. PEEK, Delrin, PTFE, and other engineering plastics are regularly turned on CNC lathes. However, plastic requires sharp, polished cutting edges, high positive rake angles, and often chilled air or mist coolant to prevent melting. Dimensional tolerances for plastic turned parts are typically looser due to thermal expansion and material memory.
Q5: How do I ensure that no burrs remain on cross‑drilled holes?
Specify “100% deburred, no raised edges” on your print. For high‑volume orders, suppliers use thermal deburring or electrochemical deburring for internal intersections. For small batches, manual deburring with a small countersink or abrasive brush is acceptable – but request a sample under magnification.
Q6: What certifications should a supplier of turned precision parts hold?
At a minimum, ISO 9001:2015 for quality management. For medical or automotive work, look for IATF 16949 or ISO 13485. For aerospace, AS9100D is mandatory.
Additionally, ask for a certificate of conformance with every shipment, including material, heat treatment, and plating .
Q7: How do I handle a turned precision part that fails concentricity after shipment?
First, verify the measurement method – concentricity can be measured incorrectly if the part is not seated properly. If confirmed out of specification, invoke your quality agreement. Reputable suppliers will replace non‑conforming parts at no cost and perform a root cause analysis. To avoid disputes, always keep a first‑article sample signed off by both parties.
Final Thoughts
To accurately mark and label precision-turned parts, convey technical parameters, understand the application environment, and proactively avoid common manufacturing defects. By clearly defining tolerances, material machinability, and batch consistency as early as possible, and collaborating with suppliers who offer one-time production and full traceability services, you can achieve stable quality, shorten the delivery cycle, and reduce the total cost.
