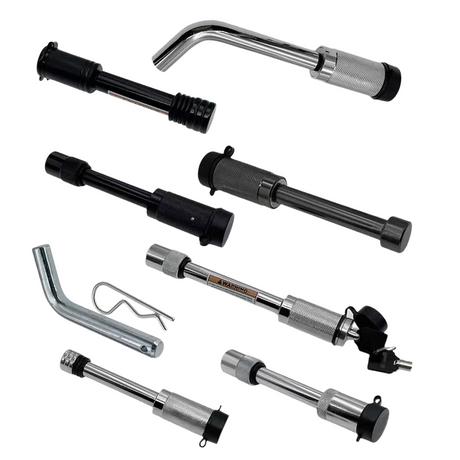

A hitch pin, a cylindrical trailer parts used to fix the accessory installed on the receiver into the receiver tube of the traction device, and to fix the connecting rod on the mechanical device. It looks like a regular bolt, but its technical parameters determine whether it will break or rust when subjected to pressure.
The most common confusion lies in the diameter of the hinge pin. It is necessary to know the aperture size of your receiver and ball seat. For standard hinge pins (5/8 inches and 1/2 inches), the industry standard has strict regulations:
Devices of type I and type II usually require pins with a diameter of 1/2 inch.
Heavy-duty type III, IV and V articulated devices, on the other hand, need pins with a diameter of 5/8 inch.
The effective length and available length of the hinged pin are of crucial importance. The effective length must cover the entire width of the receiver tube and also leave sufficient sliding space. If an overly long pin is used, the excess length will result in shear stress.
The working load limit is different from its breaking strength. You must look for the strength indicators of level 5 and level 8 on the packaging. The shear strength of level 8 is much higher, so it is suitable for heavy equipment and off-road rescue.
The weight-bearing rating of the hitch pin is not universal; the load it can bear under bending will be significantly reduced, and it usually breaks at 30% of the original bearing capacity. If you are pulling heavy objects or transporting devices by motorcycle, you cannot replace the bolts from a regular hardware store.
The retainer is the most easily lost component. The hitch pin and the clip-type fixator have a fixing force that depends on their usage method. The clip-type fixator offers a quick and tool-free operation method, suitable for temporary traction, and is very convenient to use in combination with standard hitch pins and clips.
Choosing the right pin can prevent accidents. Factors such as physical compatibility, environmental exposure conditions, and a reasonable assessment of the transported goods need to be taken into consideration.
Let's start by discussing the diameter tolerance of the hitch pin holes. Precise fit is crucial. After the hitch pin is inserted, if you can pull the crossbar up and down by more than one millimeter, it indicates a matching problem. If using a height-adjustable suspension, check the hole adjustability of the hitch pin. Ensure that the suspension pin can smoothly pass through all aligned panels.
For those who want to know how to select the appropriate size of the suspension pin, the safest method is the "shake test".
The choice of materials depends on the local climate conditions.
Stainless steel offers better performance, but it is usually softer in texture and more expensive.
Galvanized carbon steel has a relatively high shear strength and a lower cost.
The market offers solutions to specific problems. If a traction pin is too loose and makes a creaking sound, which annoys you greatly, then look for a threaded pin. This design can eliminate the loosening phenomenon that causes the traction pin to be lost and require an emergency replacement.

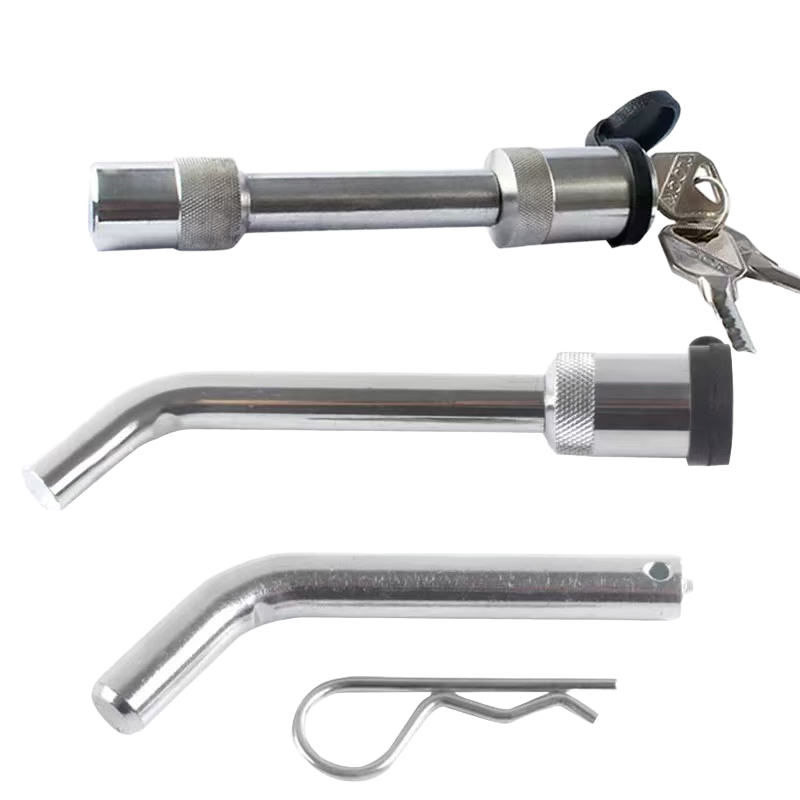

In urban areas, standard pin offer no security guarantee. There is a clear winner in terms of safety in the debate between locking traction pins and standard clip traction pins: The locking traction pin requires a key to be removed, so it is the best traction pin for preventing the theft of expensive bicycle frames or aluminum trailers.
The operation process of using the pin removal tool is not merely a matter of pushing the metal material into the tubular structure; it also involves issues related to load preloading and dynamic safety.
To correctly install the receiver hitch pin, first remove any debris from the pin tube. Slide the spherical bracket into the receiver until the holes are perfectly aligned. If you are learning how to use the pin on a tractor, be aware that the connection is usually made under tension.
Once the plug is installed in place, the installation process often fails at the last moment.
When fixing the suspension pins for the ball-type installation device, the opening part of the clamp must face upwards, not downwards. Because gravity and vibration may cause the downward-facing clamp to fall out of the pin slot. For suspension pins with anti-sway control rods or caravan towing devices, a strong cable tie can be passed through the clamp ring and wound around the caravan body. This can prevent the suspension pin from experiencing minor loosening due to vibration over long-distance highway sections.
After insertion, a dynamic check is conducted. If insertion fails, it indicates that the hook pin is not aligned properly. At this point, alignment repair is required; simply loosening the ball seat bolts can alleviate the misalignment of the hole caused by internal stress. To prevent the hook pin from getting stuck, before seasonal use, just apply a thin layer of anti-loosening agent on the smooth shaft. If using a temporary towing rod connection hook pin, this step can be skipped. However, for permanent hook pins used outdoors, this step can reduce the 5-second disassembly time to 30 minutes of hammering time.
If your snap pins are always coming loose and falling off, the usual solution is not to replace them with larger ones.
First, make sure to identify the outer edge. If the receiver wall occupies half of the pin hole, then it won't be possible to hold onto anything. In this case, you can replace the pin with one that has a longer usable shaft.
If it gets stuck due to rust, you need to handle it patiently instead of using forceful methods, otherwise it might deform. Soak the component in penetrating oil for ten minutes. If you can turn the pin with a vise, it means you are making progress. For the completely stuck pin, the thermal expansion method is very helpful for you. The pin can slide out. Once it is removed, be sure to clean it with a wire brush to prevent it from getting stuck again.
For the setting of recreational vehicle trailers, this is an important measure to protect your towing rods and floor components from theft. For one-day trips using multi-functional trailers, the standard clamp-type lifting pin is sufficient. However, when you have to dismantle the vehicle and expose the floor to the campsite, the locking-type lifting pin can provide higher safety. The cost is the maintenance cost; you need to clean the lock core to prevent sand from causing the problem of being unable to insert the lifting pin when the vehicle breaks down at midnight.
