Precision CNC Turning Parts That Fit the First Time

We are China-based custom manufacturing factory for drawing-based CNC turning parts. You send the CAD file, drawing, sample, or technical requirement; we review manufacturability, prepare the quotation, manage production and quality control, then prepare the parts for shipment. This clear factory-to-buyer workflow helps procurement teams assess technical fit before placing an order.

GET A CNC Turning part QUOTE

REQUEST A TURNED PART QUOTE

Critical Turning Concern	What Your RFQ Should Define
Shaft and bore fit	Nominal size, tolerance, mating component, and desired clearance or interference
Threads	Standard, size, class, pitch, depth, gauge, and mating requirement
Runout and concentricity	Datums, functional surfaces, and allowable relationship between features
Surface condition	Roughness, finish, corrosion protection, and any sealing or sliding function

QUOTING FEATURE

Review the Dimensions That Control Assembly

CNC turning parts are often simple to describe but unforgiving in service. A shaft can turn freely on a drawing but bind in a bearing. A threaded adapter can look correct but fail to mate with its fitting. A bushing can have the right OD and still create a problem when its ID, face, or chamfer is not controlled to the functional datum. Your quote review should begin with assembly relationships, not just overall dimensions.

1. Identify Mating Features

Mark the surfaces that locate, seal, slide, clamp, thread, or transmit load.

2. Set the Reference Datums

Show which face, axis, or bore controls the important relationships.

3. Confirm the Turning Features

Review diameters, bores, grooves, shoulders, radii, threads, and cross features.

4. Define Inspection Priorities

Specify the measurements that decide acceptance for your assembly.

1. Identify Mating Features

Mark the surfaces that locate, seal, slide, clamp, thread, or transmit load.
2. Set the Reference Datums

Show which face, axis, or bore controls the important relationships.
3. Confirm the Turning Features

Review diameters, bores, grooves, shoulders, radii, threads, and cross features.
4. Define Inspection Priorities

Specify the measurements that decide acceptance for your assembly.

CNC Turned Parts We Commonly Manufacture

Custom CNC turning parts

We produce custom CNC turning parts for drawing-based B2B projects, including shafts, bushings, pins, spacers, sleeves, collars, connectors, and flanged components.

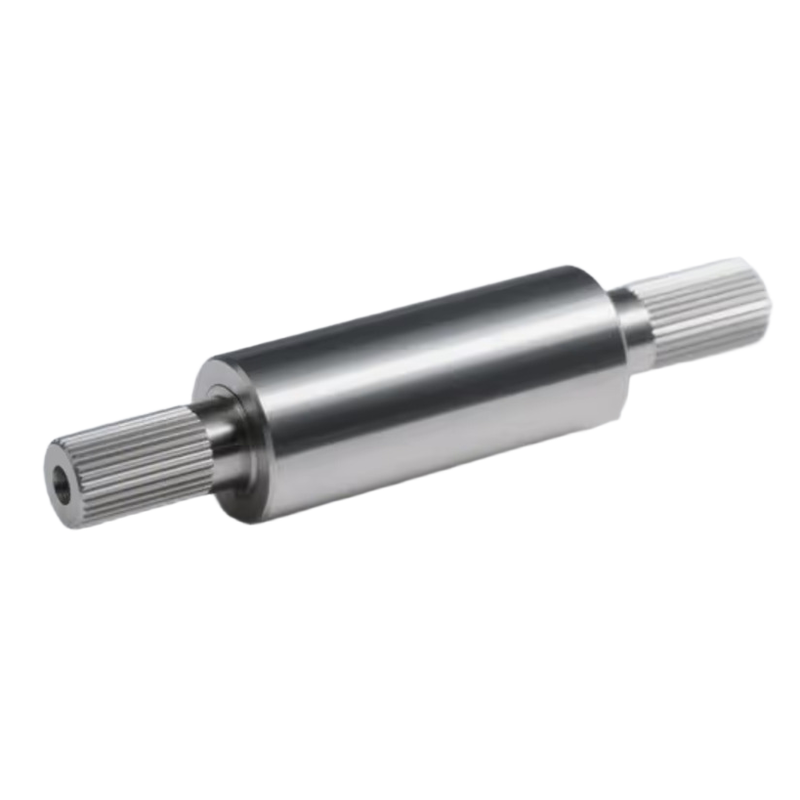

CNC Turned Shafts and Stepped Shafts

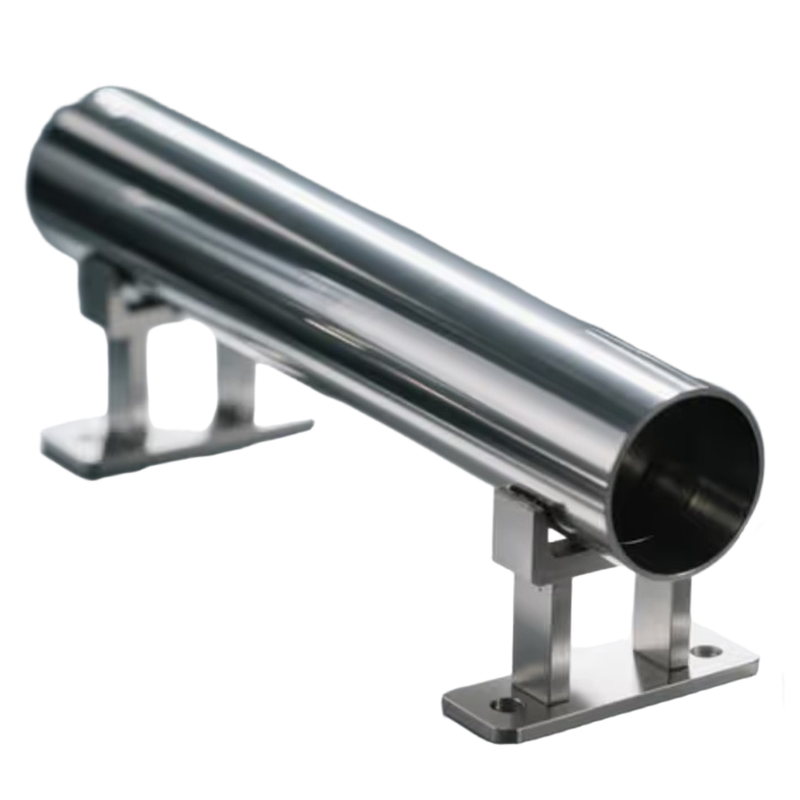

Custom CNC Bushings and Sleeves

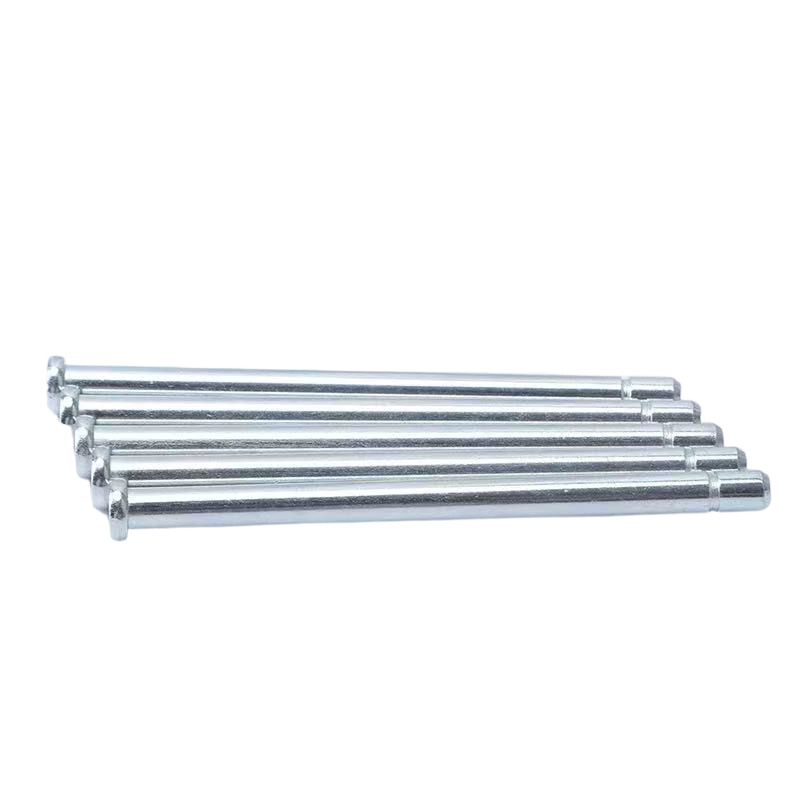

CNC Turning Pins and Locators

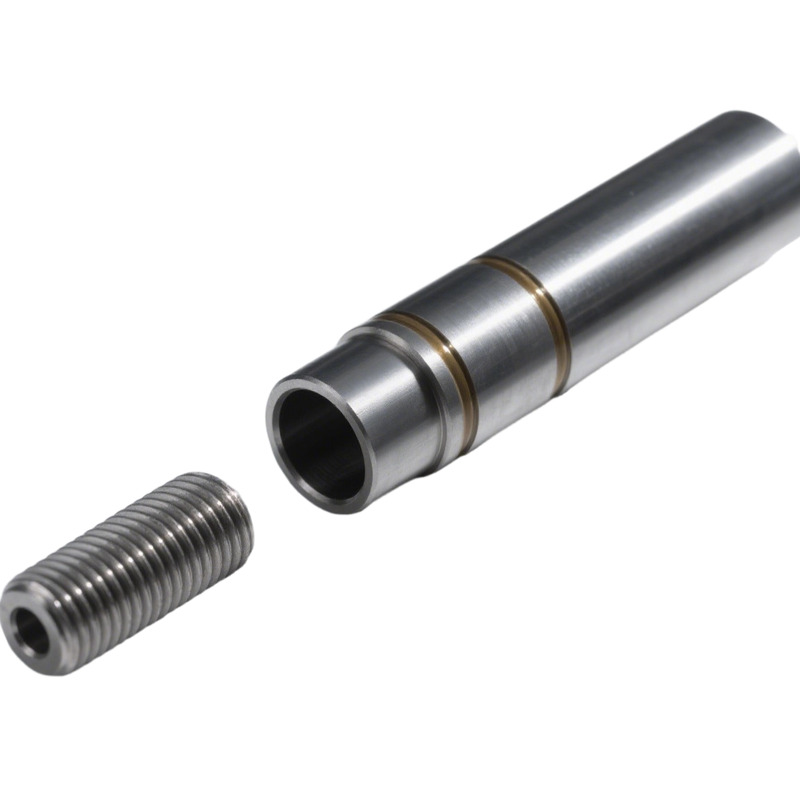

CNC Threaded Components

Turning Capabilities Buyers Need to Verify

;

1 -

OD and ID Turning from Clear Datums

Control outside diameters, internal bores, shoulders, and faces from the reference that matters.
Threading and Grooving Reviewed Early
Turning-Milling Features Planned Together
Quality Control and Inspection for First Articles and Batch Production
Direct Technical Communication

Resolve questions before they turn into production delays.
Flexible Project Stages

Support prototype, pilot, and repeat manufacturing requirements.

CNC Turning Capabilities: OD, ID, Threads and Concentricity

Turning Feature	Typical Project Reference	Review Requirement
External / internal diameters	+/-0.01 to +/-0.03 mm	Nominal diameter, tolerance, mating fit, and measurement method
Axial lengths and shoulders	+/-0.05 to +/-0.10 mm	Functional face, datum, and stack-up relationship
Concentricity / runout	0.02 to 0.05 mm typical project target	Referenced features, measurement location, and rotation datum
Threads	Metric, UNC, UNF, BSP, NPT, or drawing-defined	Thread class, pitch, depth, gauge, and mating part
Surface roughness	Ra 0.8 to 3.2 um	Sliding, sealing, cosmetic, or corrosion-resistance requirement

Use these numbers to prepare a clearer RFQ, not as a universal promise. Final capability must be confirmed against your material, diameter, length-to-diameter ratio, geometry, workholding, finish, quantity, and inspection method.

Materials for CNC Parts

Material Type

Material	When It Is Commonly Considered for Turned Parts
Aluminum	Lightweight shafts, spacers, housings, collars, and non-heavy-wear assemblies
Stainless Steel	Corrosion-resistant fittings, shafts, pins, sleeves, and exposed mechanical interfaces
Carbon and Alloy Steel	High-strength shafts, pins, drive components, and wear-related mechanical parts
Brass and Bronze	Bushings, fittings, connectors, low-friction interfaces, and corrosion-sensitive components

For custom CNC turning parts, material selection should follow the working condition. State whether the surface will slide, press-fit, seal, carry load, resist corrosion, conduct electricity, or mate with a harder material. For related multi-feature parts, review our CNC Machined Components resources before finalising your RFQ.

VERTICAL PRODUCT APPLICATIONS

Electrical and Hardware Interfaces

Connectors, threaded inserts, standoffs, terminal sleeves, and custom fastener-related components often combine a turned body with a functional thread or bore. Provide material, finish, thread, electrical or environmental requirements, and the mating part where possible. This connects the CNC turning process to the component's actual assembly task instead of treating it as a generic cylindrical part.
Automation Positioning

Pins, guide shafts, bushings, and locators help automation equipment repeat a position. Their value depends on controlled diameter, lead-in geometry, surface condition, and fit with the mating hole or bushing. For these CNC turning parts, show the location function and required fit. The manufacturing review can then prioritize the surfaces that influence guidance, repeatability, wear, and replacement consistency.
Fluid and Pneumatic Connections

Threaded adapters, fittings, plugs, and valve-related turned parts need more than a nominal thread callout. The RFQ should identify the thread system, sealing method, pressure condition where relevant, material, surface treatment, and mating component. This allows the CNC turning review to consider thread form, engagement, sealing face, bore transitions, and the features that determine whether the connection will assemble correctly.
Bearing and Drive Assemblies

Shafts, sleeves, spacers, and collars in drive assemblies are defined by the surfaces that locate bearings, gears, couplings, or pulleys. In these CNC turning parts, the important information is the relationship between seating diameters, shoulders, end faces, and runout. Include the mating components or fit class in your RFQ so the review can focus on the surfaces that affect rotation and assembly life.

STANDARDISED COOPERATION FLOW

1. Technical Input

You provide the drawing, CAD file, sample, material, quantity, and the mating or functional requirement.

2. Requirement Review

We clarify fits, threads, datums, critical dimensions, finishing, and inspection points before the quotation is finalised.

3. Quotation Confirmation

The agreed quotation is based on the reviewed technical information, so open questions are reduced before production planning.

4. Production and Quality Control

The project follows the approved drawing and defined inspection priorities, with first-article or batch checks agreed where required.

5. Packing and Shipment Preparation

Before dispatch, confirm quantity, packaging, documentation, and the shipment information needed for your receiving process.

CNC Turning Parts FAQ

Q Can you support sample orders before repeat production?

Yes. A sample order is useful when you need to prove fit, thread engagement, movement, sealing, or assembly sequence before releasing a repeated order. Provide the immediate sample quantity and any expected repeat demand. This helps identify which dimensions, materials, finishes, and inspection records should be locked into the approved production specification after the sample is validated.

How do you inspect runout or concentricity?

The drawing should identify the datum axis, the feature being controlled, the tolerance value, and where measurement is taken. Runout and concentricity only become meaningful when connected to a functional reference. For a shaft, this may be a bearing seat; for a threaded fitting, it may be the sealing face and bore. Include your acceptance method if it differs from standard inspection practice.
Can CNC turned parts include flats, cross holes, or slots?

Yes, but these non-round features may require an additional operation after or during the turning process. Provide the feature positions in relation to the main axis and datums, together with any tolerance requirements. The review will determine how the turned body and secondary features should be sequenced so that critical relationships between bore, diameter, thread, hole, and flat are maintained.
Which thread details do you need for a custom turned fitting?

Specify the thread standard, nominal size, pitch, class, internal or external location, engagement length, seal method, and mating part. If the thread is non-standard, send the relevant drawing detail or gauge requirement. For CNC turning parts with threads, confirming the mating relationship before production is essential because a visually correct thread can still be unacceptable if its fit or depth is wrong.
How should I specify a bushing fit?

Provide the bushing ID and OD, their tolerances, the shaft and housing dimensions, the intended clearance or interference, operating temperature, lubrication condition, and material. A bushing is a fit component, so the bore and outside diameter should not be treated as isolated numbers. The CNC turning review should understand the mating parts and functional purpose before tolerance or finishing decisions are confirmed.

Make the Mating Features Clear

Upload your drawing, CAD file, or sample and tell us what the CNC turning part must fit, seal, locate, rotate, or fasten. For better RFQ input, see How to Specify Precision Turned Parts. Include the material, quantity, critical diameters, thread details, finish, and mating component information.
