The Ultimate Guide to Custom Washers: Engineering, Materials, and Selection

Contents

1. The Evolution of Washers: A Brief History

2. Emerging Materials and Technology in Washer Manufacturing

3. Applications in High-Tech Industries

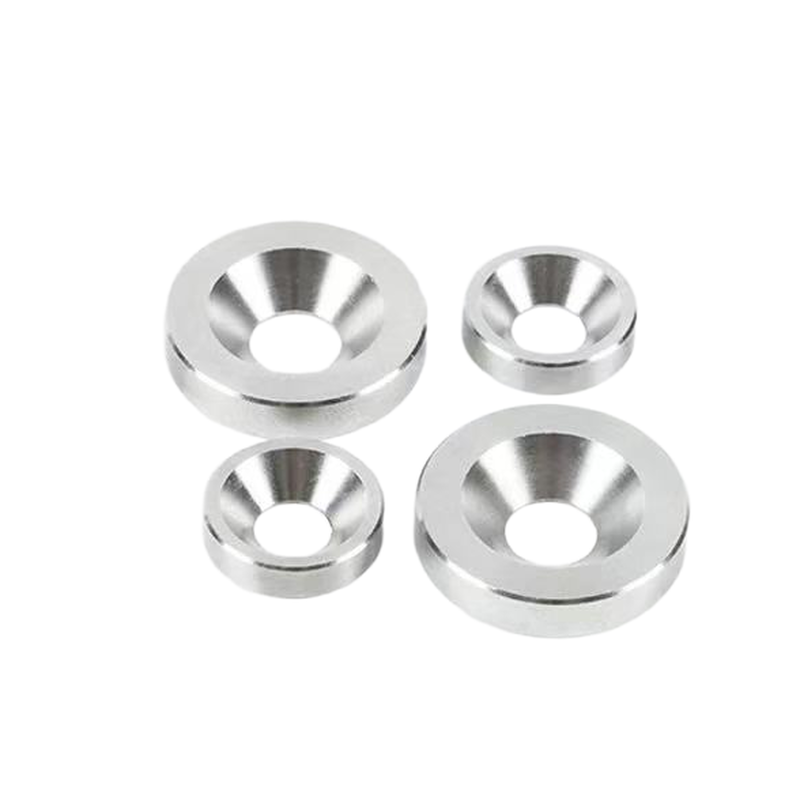

4. The Role of Custom Washers and Precision Washers

5. Future Trends in Washer Design and Functionality

6. How to Choose the Right Washer for Your Needs

7. How to Choose the Right Washer Manufacturer

1. The Evolution of Washers: A Brief History

The humble steel washer has been around almost as long as threaded fasteners. During the industrial revolution, blacksmiths hand‑hammered bronze or leather washers to stop nuts from sinking into soft cast iron or wood. By the mid‑19th century, interchangeable manufacturing brought the first batch‑produced steel washer – but tolerances were laughably loose, often ±0.5 mm on the outer diameter.

The real game‑changer came during WWII. Aircraft engines vibrated so severely that plain washers loosened constantly. Engineers developed wave spring washers and serrated lock washers. Then, in the 1960s, the stainless washer entered chemical plants and marine equipment. Early type 304 stainless washers suffered from hydrogen embrittlement; that problem was solved only when vacuum annealing became standard.

Today, electron microscopes and semiconductor lithography push precision to the micrometre. A single EUV lithography machine contains more than 2,000 non‑standard custom washer designs – some only 0.05 mm thick, made of beryllium copper or polyimide. The lesson: every breakthrough in materials or processing redefines what a washer can do.

2. Emerging Materials and Technology in Washer Manufacturing

In 2021, we received an order for custom washer made of Inconel 718. Specification: hardness HRC 38–42, thickness 1.2±0.01 mm. The first two batches ran fine. On the third batch, more than 15% of the washers came out warped – flatness exceeded 0.15 mm (requirement 0.05 mm).

I first suspected the stamping die. We replaced it with a brand‑new one, but the warp remained. Then I checked the raw material certificates. The supplier had changed their solution treatment furnace – the new batch was solution‑annealed 15°C lower than the previous one, causing uneven grain growth.

We fixed it in three steps. First, I had the entire batch re‑solutioned and aged: 1065°C for one hour, water quench, then 720°C aging for eight hours. Second, we changed the process sequence – rough blanking (leaving 0.2 mm stock), heat treatment, then finish blanking. Third, we added 100% optical flatness inspection.

Result: warpage dropped from 15% to 0.8%, hardness stabilised at HRC 40±1. This experience turned into a shop rule: for any heat‑treated custom washer, always demand the heat‑treatment curve and grain‑size report for every batch.

Beyond nickel alloys, PTFE composite coatings and DLC (diamond‑like carbon) are emerging. We tested MoS₂ on 304 stainless washers – friction coefficient dropped from 0.6 to 0.08, but vacuum sputtering tripled the unit cost. For most industrial applications, the core of washer manufacturing process remains die clearance: at 6–8% of material thickness, the sheared zone can exceed 80% burnish, with burr height below 0.03 mm.

3. Applications in High-Tech Industries

The high temperature sealing washer is a critical component in aerospace and semiconductor equipment. Take a turbocharger – the exhaust flange gasket must survive 850°C and thermal cycling. A standard stainless washer oxidises and leaks within two hours. We supply a corrugated Inconel 625 insert with flexible graphite facing; its compression recovery exceeds 35%.

In the semiconductor world, the demands are even stricter. A physical vapour deposition (PVD) chamber requires vacuum down to 10⁻⁹ Torr and leak rates below 1×10⁻¹¹ Pa·m³/s. For one etch tool manufacturer we developed a high temperature sealing washer (detailed in Section 4). We chose C276 nickel alloy with a 5 µm gold sputter coating to resist fluorine‑based plasmas.

Another fast‑growing field is hydrogen fuel cells. The insulating washers between bipolar plates must be electrically resistive yet chemically resistant to weak acid (pH≈2) and survive thermal cycling from −40°C to 120°C. A custom washer here becomes a composite structure: a PEEK (polyetheretherketone) core over‑moulded with a fluoroelastomer sealing lip. In 2023, we made 300 samples for a hydrogen start‑up. After 2,000 hours of damp heat testing (85°C/85% RH), compression set was only 8% – well below the 15% limit recommended by industry guidelines.

4. The Role of Custom Washers and Precision Washers

Last year, a semiconductor equipment maker approached us for a high temperature sealing washer used in a wafer transfer chamber. Operating conditions: 200°C continuous, vacuum 10⁻⁷ Pa, helium leak rate <1.3×10⁻¹⁰ Pa·m³/s, and compression set ≤5% after 500 thermal cycles. They had been using an imported pure silver washer – $45 each, 12‑week lead time.

I led a six‑week development. Material: C276 nickel alloy – better creep resistance and corrosion resistance than silver, at one‑third the cost. Geometry: C‑shaped cross‑section (like a spring‑energised seal lip). We used FEA to optimise the lip angle to 22.5°, concentrating contact stress on two narrow bands.

Manufacturing problem: after stamping, micro‑cracks appeared on the lip. We switched to precision turning for the rough shape, then wire EDM for the final lip contour, followed by fluid polishing with 20 µm alumina to remove the work‑hardened layer.

Third‑sample results: helium leak test gave 4.8×10⁻¹¹ Pa·m³/s, compression set 3.2% after 500 cycles. Unit cost dropped to $19, lead time cut to three weeks. This project taught me that non‑standard washer custom is not about copying a drawing – it is about reverse‑engineering the operating conditions to optimise both material and shape. That C‑shaped washer is now in our standard catalogue, with over 20,000 pieces shipped and zero field failures.

Wave washers are another typical custom product. A common mistake: customers specify free height tolerance ±0.05 mm, but the resulting force variation after flattening can exceed 15%. By controlling the roll‑forming infeed (0.02 mm per pass) and adding a stress‑relief temper (380°C for two hours), we compress force variation to ±5%.

5. Future Trends in Washer Design and Functionality

The washer factory of 2030 will look very different. Three trends are already on our shop floor.

First, additive manufacturing for low‑volume custom washers. For complex shapes – e.g., a seal with internal cooling channels – conventional machining is impossible. We tested laser powder bed fusion (LPBF) of Inconel 718 washers. Minimum wall thickness 0.3 mm, but surface roughness Ra was 6.3 µm, requiring chemical polishing. Cost is still 8‑10× higher than conventional, so it only makes sense for space prototypes.

Second, smart washers with embedded sensors. In 2022, the Fraunhofer Institute demonstrated a washer with a sputtered strain gauge and an RFID chip that reports bolt preload loss in real time. We collaborated with a sensor company to make 100 samples: we sputtered an insulating layer onto 0.8‑mm‑thick washers, then printed a NiCr strain resistor. Accuracy is ±3% – not as good as external load cells, but no bolt modification is needed. This is ideal for online monitoring of petrochemical flanges.

Third, digital twin design. Previously we relied on empirical formulas to estimate washer compression. Now we use ABAQUS simulations with true material hardening curves and friction coefficients. In one oil gallery sealing project, the simulation showed that the original design would yield locally at 120 N·m torque. We increased the outer diameter by 2 mm before the die was cut – a problem prevented rather than fixed later.

Data source: Fastener Technology International (February 2024) reported that the smart fastener market is growing at 18.7% CAGR, with washer‑integrated sensors taking one‑third of that share.

6. How to Choose the Right Washer for Your Needs

Last year a customer complained: their stainless steel washer on a DN100 flange leaked only three days after installation. I visited the site. They had specified “temperature 80°C, pressure 1.6 MPa, medium clean water” – so we supplied standard 316L flat washers. But the actual service was intermittent steam purging, peaking at 180°C. Worse, the flange bolts were torqued to only 60 N·m (design required 120 N·m).

Here is my three‑step selection rule. Step 1 – get the real three parameters: max temperature, max pressure, fluid corrosivity. For steam or hot oil, never use a plain flat washer. You need a spiral‑wound gasket with an inner ring, or a flexible graphite composite. Flat washer tolerance means nothing if the gasket cannot compensate for thermal expansion.

Step 2 – calculate the effective gasket seating stress. Formula: total bolt preload ÷ contact area ≥ 2 × minimum required sealing stress (refer to ASME PCC‑1, Appendix O). For 1.6 MPa steam, the minimum required stress is about 35 MPa.

Step 3 – check flange surface roughness. If Ra exceeds 6.3 µm, a soft PTFE washer will extrude; you must switch to a metal washer.

We replaced the failed washers with a 316L corrugated washer coated with flexible graphite, increased torque to 100 N·m, and the leak stopped immediately. My rule: never trust a customer’s “approximately” values – get the equipment nameplate or a P&ID.

For dynamic loads (compressors, vibrating screens), always choose a custom heat treated washer. Spring steel (e.g., 65Mn) quenched and medium‑tempered to a troostite structure gives five times the fatigue life of untreated steel. We tested: 0.2 mm amplitude, 30 Hz – untreated wave springs failed after 80,000 cycles; heat‑treated ones ran to 470,000 cycles.

7. How to Choose the Right Washer Manufacturer

In 2019, we needed an oem flat washer manufacturer for an automotive customer – annual volume 500,000 pieces, material 45 steel, hardness HRB 85‑95. We shortlisted three factories. The cheapest one sent first‑article samples with thickness tolerance ±0.08 mm (drawing required ±0.05 mm).

I did an on‑site audit. Three red flags:

1. No heat‑treatment curves for incoming coils – only a receiving log.

2. No SPC boards on the stamping floor – operators adjusted feed pitch by feel.

3. Hardness inspection sampled only 5% and no heat‑number traceability.

I issued a corrective‑action request: submit process capability (Cpk ≥1.33) for all critical dimensions; provide material certificates with hardness uniformity (nine‑point measurement) for every coil; enforce a 50,000‑stroke die life and 100% first‑article inspection after each die change. The factory refused to invest in an automatic hardness sorter, so we walked away.

We chose a slightly more expensive factory with an ISO 17025‑accredited lab. Over two years, their PPM (parts per million defective) averaged 320 – far below the industry average of 1,200.

Use this table when you audit a washer factory:

For non‑standard washer custom, ask three questions: does the manufacturer have in‑house die design (not just drawing copying)? Have they run similar materials before? What is the lead time and price for a small pilot batch? We once hired a factory that claimed “we can do anything” – they failed three times to make a simple non‑standard M4 inner‑diameter washer, losing two months.

FAQ

Q1: When should I absolutely choose a custom washer instead of a standard catalogue part?

A: When standard inner/outer diameter, thickness, or material cannot simultaneously meet the three real parameters – max temperature, max pressure, and fluid chemistry. Example: a standard M10 washer has a 10.5 mm ID, but your boss has an 11 mm counterbore; or you need hydrofluoric acid resistance – that forces a custom washer.

Q2: What is the typical minimum order quantity (MOQ) for a custom washer?

A: In a professional washer factory, stamping MOQ is around 500–1,000 pieces (to absorb die cost). Turning or waterjet cutting has no MOQ, but the unit price is 3‑5× higher. We recently made 50 C‑shaped washers by precision turning + wire EDM – unit cost $12.

Q3: How can I tell if a custom heat treated washer has been tempered correctly?

A: Use a portable Leeb hardness tester – three points, spread ≤3 HRC. For spring steel, the surface should be uniform dark blue or brown; white spots indicate decarburisation. The gold standard is a metallographic check – a well‑tempered troostite structure looks like fine needles.

Q4: How much longer does a stainless steel washer last than a carbon steel washer in a corrosive environment?

A: Per ASTM B117 salt spray, plain carbon steel (uncoated) shows red rust after 24 hours and is fully corroded by 72 hours. A 316L stainless washer shows no base metal attack after 1,000 hours. But beware: in chloride‑rich environments (seawater), 316L can pit – switch to Hastelloy C276.

Q5: What quality documents should an oem flat washer manufacturer provide?

A: Minimum five: material certificate (with heat number), dimensional inspection report (at least 30 pieces), hardness/tensile test records, heat‑treatment curve (if applicable), and RoHS/REACH compliance. ISO 9001 and IATF 16949 certification are strong pluses.

Q6: Why does my custom washer loosen after assembly?

A: Most common reason – the washer is too hard to conform to the mating surfaces. For plain flat washers, target HRB 70‑85; for lock washers, HRC 40‑50. Also check the ID‑to‑bolt clearance – recommended ≤0.2 mm.
