In the field of precision manufacturing, few materials can match alloy steel in terms of strength, versatility, and reliability. Alloy steel machined parts are the backbone of critical applications across various industries, from aircraft landing gear to the power transmission systems of heavy trucks. But what exactly makes this material so special?
How does it transform from a raw bar stock into high-precision parts? Most importantly, as an engineer, designer, or procurement expert, how do you ensure that you select the right material and supplier for your project?
This detailed guide delves deeply into the precision CNC Machining of alloy steel. We will explore the technical specifications of common grades, reveal their wide range of application scenarios. After reading this article, you will have a comprehensive understanding of alloy steel machined components.
Common Alloy Steel Grades for Machined Components
3.1 AISI 4140 Alloy Steel: The All-Rounder
The CNC Machining Process for Alloy Steel
The Critical Role of Heat Treatment
Key Applications of Alloy Steel Machined Parts
6.1 Aerospace and Defense Components
How to Select the Right Alloy Steel for Your Project
A Practical Guide to Choosing an Alloy Steel Machining Supplier

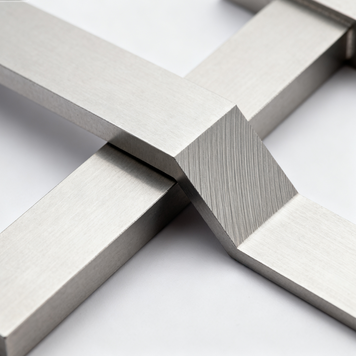

Alloy steel machined parts are manufactured from alloy steel, which contains elements such as chromium, molybdenum, nickel and vanadium. These elements are added to enhance specific material properties. Usually, CNC machining service, where computer-controlled equipment is used to remove material from the solid block or bar of alloy steel to produce components with precise geometries, dimensions and surface finish.
The combination of excellent materials and advanced manufacturing technologies results in components with extremely high tensile strength, outstanding wear resistance, and the ability to withstand significant impacts and fatigue loads, making them suitable for engineering applications.
Why is alloy steel a preferred choice for engineers? The benefits are rooted in its enhanced mechanical properties:
High Strength-to-Weight Ratio
Alloy steel has extremely high strength and does not require additional weight. This is particularly important in applications such as aerospace components and high-performance vehicles.
Enhanced Hardness and Wear Resistance
Adding chromium and molybdenum can enhance the surface hardness, ensuring that components such as gears and shafts remain undamaged and unscathed even after long-term use.
Superior Toughness
These materials can absorb a large amount of energy before breaking, and are therefore highly suitable for use in heavy machinery components that are subjected to impact loads.
Improved Hardenability
Alloy steel responds well to heat treatment. Manufacturers can adjust the properties of the material according to specific requirements (for example, making the surface hard while maintaining toughness inside).
Good Fatigue Strength
Alloy steel components will not suffer damage when subjected to a large number of load cycles, which is of vital importance for components such as engines.
Not all alloy steels are the same. Selecting the correct grade is the first critical step in the design process.
AISI 4140 alloy steel contains chromium and molybdenum. It achieves a good balance in terms of strength, toughness and wear resistance. It is easy to process in the annealed state and responds extremely well to heat treatment. It is commonly used in the automotive and general engineering fields.
AISI 4340 alloy steel is a nickel-chromium-molybdenum alloy steel with extremely high tensile strength and toughness. It is suitable for large-section parts that require consistent performance throughout the entire component. It is applicable to aerospace components and power transmission components.
AISI 8620
A carburizing grade steel, excellent for case hardened components that require a very hard, wear-resistant surface and a tough, ductile core. It's ideal for gears, pinions, and custom alloy steel Fasteners.
AISI 4340 Mod
Variations with enhanced purity for even better fracture toughness.
AISI 9310
Another case-hardening grade often used in high-performance aerospace gearing.
Creating a precision alloy steel part is a meticulous process that leverages advanced technology.
CNC Machining service of alloy steel mainly involves CNC turning service and CNC milling service. These processes use hardened cutting tools to effectively remove the material. Robust machinery equipment, effective cooling, and reasonable tool paths are required to cope with the huge cutting force and heat generated during the processing of high-strength alloy steel.
For precision alloy steel manufacturers, strict control of processing accuracy is necessary. Advanced machine tools and skilled programming are required. The high-quality surface finish of the alloy steel is crucial for reducing friction, preventing cracks from forming, and ensuring the correct sealing of components.
Heat treatment is a controlled process of heating and cooling metals to alter their physical and mechanical properties. For processed alloy steel components, heat treatment is almost always an indispensable step, as it is necessary to fully utilize their performance.
For steel grades such as 4140 and 4340, this type of heat treatment is the most common method.
The parts are heated to a high temperature, then rapidly cooled. The parts are then reheated to a lower temperature to reduce brittleness and achieve the desired balance between hardness, strength and toughness. This process enables the production of heat-treated alloy steel parts with precisely defined properties.
For applications such as alloy steel gears, processes like carburizing and nitriding introduce carbon or nitrogen into the surface layer, thereby hardening these surfaces. The resulting surface has excellent wear resistance while still maintaining the component's ability to absorb impact.
The unique properties of alloy steel make it indispensable in several high-stakes industries.
The alloy steel components required by the aerospace industry are used in landing gear, engine brackets, and flight control actuators. The requirements for reliability and fatigue resistance, as well as the need to reduce weight, have made the 4340 grade the preferred material.
From manufacturing vehicles to Formula One racing cars, alloy steel components are ubiquitous in the automotive industry. Crankshafts, connecting rods, transmission gears, and suspension components all rely on the strength and durability of heat-treated alloy steel to withstand tremendous power and repeated stress.
The exploration and extraction of oil and gas are subject to extremely high pressure. The valve body, wellhead components, and drill pipe tools.6.4 Heavy Machinery and Industrial Systems
The heavy machinery alloy steel components used in mining, construction and agriculture are subjected to extremely high impact loads. The track connectors, hydraulic cylinder rods and gearbox components made of alloy steel ensure that the equipment in these demanding applications has a longer service life.
Choosing the correct material is a systematic decision based on your project's requirements.
Start by defining the key operational parameters:
Load
What are the static, dynamic, and shock loads?
Stress
What is the required tensile strength and yield strength?
Wear
Is abrasion or adhesion a primary concern?
Fatigue
How many load cycles will the part endure?
The operating environment is equally critical:
Temperature
Will the part be exposed to high or cryogenic temperatures?
Corrosion
Is exposure to moisture, chemicals, or saltwater expected? This may necessitate stainless steel or coatings.
Friction
Does the application require specific surface finish properties?
Finding a reliable custom alloy steel machining enterprise is just as important as the design itself.
Technical Capability and Experience
Do they have any successful cases in alloy steel processing? Can they provide examples of similar precision components? Please look for suppliers with engineering expertise, rather than just ordinary mechanical processing factories.
Quality Certifications and Metrology
An alloy steel mechanic who has obtained ISO 9001 certification demonstrated a firm commitment to a stable quality process. They are ensured to be equipped with advanced measuring equipment to verify precise dimensional tolerances.
Full-Service Offerings
The best partners will offer services including CNC machining, heat treatment, and subsequent processes such as grinding and coating. This can simplify your supply chain process and ensure clear responsibilities.
Communication and Project Management
Select a supplier who is quick in response, can provide clear quotations, and is proactive in informing about the project progress.
Scalability and Lead Times
Can they meet your production requirements, including all stages from processing prototype alloy steel to large-scale mass production? What is their usual delivery cycle?
Q1: What is the main difference between 4140 and 4340 alloy steel?
A: A: The main difference lies in the addition of nickel in 4340. Nickel gives 4340 better toughness and hardenability. 4140 is an excellent general-purpose steel, while 4340 is used in the fields with the highest strength requirements and the widest applications.
Q2: Can alloy steel parts resist corrosion?
A: Standard alloy steels like 4140 and 4340 have limited corrosion resistance and will rust without protection. For applications that require corrosion resistance, specific grades or coatings are necessary.
Q3: How tight of a tolerance can be achieved with CNC machined alloy steel?
A: For precise CNC machining, the standard tolerance can be controlled within ±0.025 millimeters. Through subsequent processes such as precision grinding, the tolerance can be further reduced, reaching ±0.005 millimeters or even smaller, depending on the geometric shape of the part.
Q4: What is the typical lead time for custom alloy steel machined parts?
A: The production cycle can vary significantly depending on factors such as the complexity of the components, their quantity, and the subsequent processing procedures required. A simple prototype might take 1 to 2 weeks, while a complex batch production could take 6 to 8 weeks or even longer. Obtain a detailed production schedule from your CNC machining service provider.
Q5: Why is heat treatment so important for alloy steel components?
A: Heat treatment enables alloy steel to achieve the required mechanical properties, such as high strength, high hardness and high toughness. In the annealed state, this material is more suitable for processing. Heat treatment alters the internal structure of the material.
Q6: What information should I provide to get an accurate price quote?
A: To obtain an accurate quotation for the alloy steel components, please provide the following information:
Detailed 2D drawings or 3D CAD models (STEP, IGES files).
Specified material grade (4140, 4340).
Required quantities (prototype vs. production volume).
Any required heat treatment or surface finish specifications.
Quality and inspection requirements.
