Views: 0 Author: Carl Xu Publish Time: 2025-10-03 Origin: Site

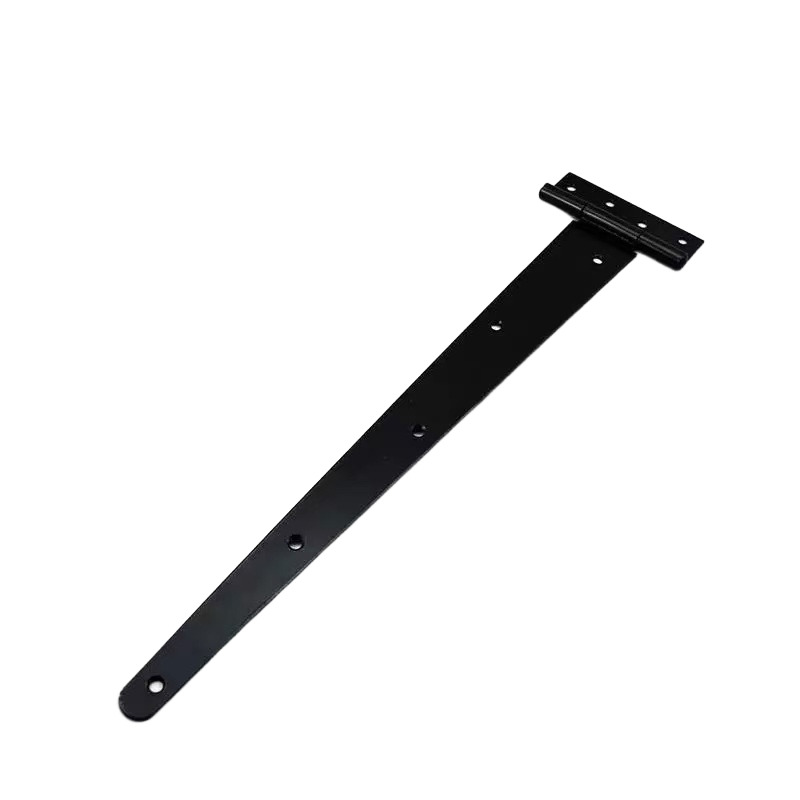

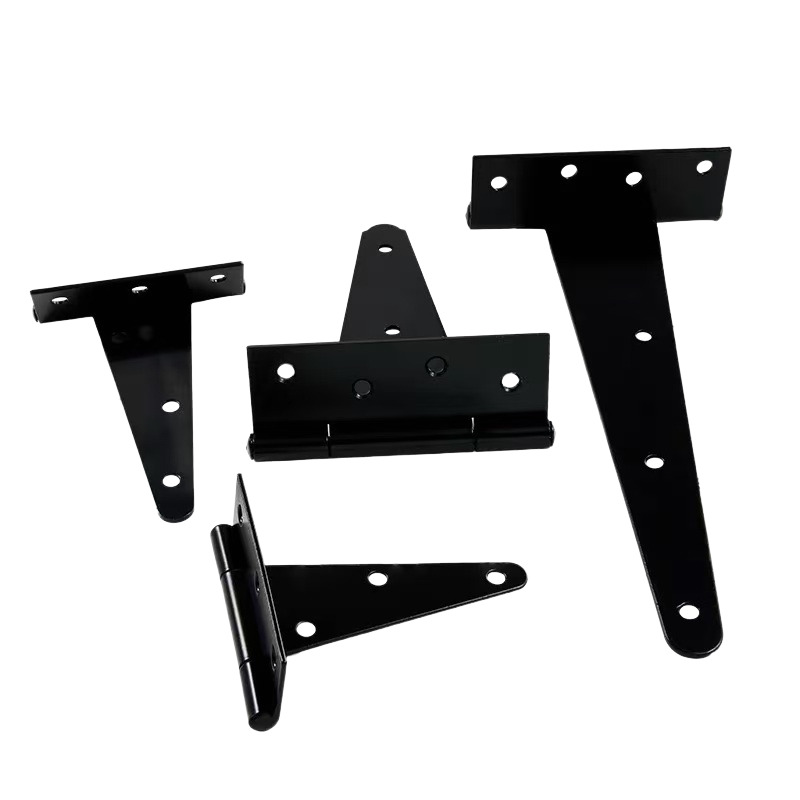

T-Hinge, is a hardware component used to connect two surfaces and enable smooth rotation. It plays a crucial role in ensuring the stability and functional reliability of residential doors, garden gates, industrial enclosures, and marine equipment. Compared to standard hinges, it can distribute weight more evenly, making it an ideal choice for applications requiring enhanced load-bearing capacity.
This article comprehensively covers all aspects of the T-type hinge, including its core functions, material selection, coating technology, and customization process. Whether for ordinary users, construction contractors, or industrial buyers, understanding these elements will help you select the T-type hinge that meets your specific needs - even ready-made solutions may not be able to fulfill your requirements.
The characteristic of the T-hinge lies in its having two mutually perpendicular arms, forming a "T" shape structure. The horizontal arm is fixedly connected to the fixed surface (door frame or door post), while the vertical arm is connected to the moving part (door or door panel). This design can distribute the weight over a larger area, thereby reducing the burden on a single fastener and extending the service life of the hinge.
Every T-hinge consists of three essential parts:
Horizontal Leaf
The longer and straight part connected to the fixed structure. Its length may vary depending on the application requirements. Longer blades can better balance the weight of the door and are suitable for heavier doors.
Vertical Stem
The shorter and vertical component connected to the moving surface. It usually has pre-drilled holes for easy installation.
Pin
A cylindrical rod connects the blade and the stem, enabling smooth rotation. These rods can be detachable (for ease of disassembly) or fixed (to enhance safety).
T-hinges are versatile and used across multiple industries:
Residential
Garden gates, shed doors, garage doors, and utility closet doors.
Commercial
Storefront gates, warehouse enclosures, and display cases.
Industrial
Machinery access panels, shipping containers, and heavy-duty equipment doors.
Marine
Boat hatches, dock gates, and marine enclosures (requires corrosion-resistant materials).
The material of the T-shaped hinge directly affects its durability, load-bearing capacity, and resistance to environmental factors (such as moisture, rust, and extreme temperatures). We offer four main material options, each of which has been customized for specific application scenarios. The following table compares their key characteristics.
| Material | Tensile Strength (MPa) | Corrosion Resistance | Weight (g/cm³) | Pros | Cons |
|---|---|---|---|---|---|
| Carbon Steel | 400–900 | Low (without coating) | 7.85 | High load capacity, cost-effective | Prone to rust in wet environments |
| Stainless Steel (304) | 515–720 | High | 7.93 | Rust-resistant, durable, low maintenance | Higher cost than carbon steel |
| Aluminum | 70–300 | Moderate to High | 2.70 | Lightweight, corrosion-resistant | Lower load capacity than steel |
| Brass | 300–500 | Moderate | 8.40 | Aesthetic appeal, natural corrosion resistance | Soft (prone to scratches), high cost |
Each material meets specific requirements: carbon steel is highly suitable for budget-constrained indoor projects, while stainless steel performs exceptionally well in outdoor or humid environments. Aluminum is ideal for applications where weight sensitivity is a concern, and brass can add a touch of high-end decorative effect.
While material selection lays the foundation for a T-hinge’s performance, coatings add an extra layer of protection and customization. Coatings shield the base material from rust, scratches, and UV damage, while also allowing you to match the hinge to your project’s color scheme. The table below outlines our most popular coating options.
| Coating Type | Base Material Compatibility | Corrosion Resistance | Aesthetic Finish | Durability (Years, Indoor/Outdoor) | Ideal Environments |
|---|---|---|---|---|---|
| Hot-Dip Galvanizing | Carbon Steel, Stainless Steel | Very High | Matte silver | 15–20 / 10–15 | Outdoor gates, industrial equipment, coastal areas |
| Chrome Plating | Carbon Steel, Brass | High | Shiny silver | 10–15 / 5–10 | Indoor doors, commercial fixtures, decorative applications |
| Electrophoretic Paint (E-Coat) | Carbon Steel, Aluminum | Moderate to High | Matte black/gray | 8–12 / 4–8 | Garage doors, shed doors, mild outdoor use |
| Powder Coating | Aluminum, Steel | High | Custom colors (matte/glossy) | 12–18 / 6–12 |
The coating not only has functional properties but also enhances the appearance of the hinge. The powder coating enables you to choose from over 50 colors, ensuring that the hinge perfectly integrates with your project design. While hot-dip galvanizing is the best choice for areas near the coast, where the hinge will be exposed to seawater erosion.
The ready-made T-hinges are suitable for many projects. When your requirements are rather special (such as unusual dimensions, high load requirements, or the need for customized colors), our personalized service can provide a perfect solution. We will work with you to help design and produce the T-hinges.
Our customization options cover every critical aspect of T-hinges:
Dimensions
Adjust the length of the horizontal leaf (50mm to 1000mm) and vertical stem (30mm to 500mm) to fit your door or gate size.
Material
Choose from carbon steel, stainless steel (304/316), aluminum, or brass based on your environment and load needs.
Coating
Select a finish from our standard options or request a custom color (via powder coating) to match your project.
Hole Pattern
Customize the number, size, and placement of mounting holes to align with your fastener type (e.g., screws, bolts).
Load Capacity
Reinforce the hinge with thicker material or reinforced pins for heavy-duty applications (up to 500kg per hinge).
We’ve streamlined our customization process to ensure speed and accuracy, with a typical timeline of 2–4 weeks:
Needs Assessment
Our team works with you to understand your application (e.g., load, environment, design), and shares initial sketches.
Design Finalization
We provide a detailed 2D/3D drawing for your approval, including material specs, coating type, and dimensions.
Sample Production
We create a small batch of samples (1–5 units) for you to test for fit, function, and appearance.
Mass Production
Once the sample is approved, we begin full production, with quality checks at every stage.
Delivery
We ship the custom hinges with installation guides and warranty documentation.
Proper installation ensures your T-hinges perform reliably and last longer. Follow these steps for a secure, smooth-operating hinge:
Gather Tools
You’ll need a drill, drill bits (matching your hinge’s hole size), screws/bolts, a level, a pencil, and a tape measure.
Mark Mounting Points
Hold the horizontal leaf against the fixed surface (gate post) and mark the hole positions with a pencil. Use a level to ensure the leaf is straight.
Pre-Drill Holes
Drill pilot holes at the marked points to prevent the material from splitting. The depth should match the length of your screws (add 2–3mm for extra security).
Attach the Horizontal Leaf
Secure the leaf to the fixed surface using screws or bolts. Tighten them evenly to avoid warping the hinge.
Mount the Vertical Stem
Align the vertical stem with the moving surface (e.g., gate). Mark the hole positions, pre-drill, and attach the stem.
Test Rotation
Open and close the door/gate several times to ensure smooth movement. If it sticks, adjust the hinge’s position or loosen/tighten the fasteners slightly.
With minimal maintenance, your T-hinges can last for decades. The key is to protect them from corrosion, keep moving parts lubricated, and address issues early.
Regular Cleaning
Wipe down hinges with a damp cloth every 1–2 months to remove dirt, dust, and debris. For outdoor hinges, use a mild detergent (avoid harsh chemicals) to clean salt or grime.
Lubrication
Apply a silicone-based lubricant or lithium grease to the pin every 3–6 months. This reduces friction and prevents squeaking. Avoid oil-based lubricants, as they attract dirt.
Corrosion Checks
Inspect outdoor or wet-environment hinges every 6 months for rust or peeling coating. If you spot rust, sand it off with fine-grit sandpaper and apply a touch-up coating (matching the original finish).
Tighten Fasteners
Over time, screws or bolts may loosen due to vibration. Check and tighten them every 3 months to prevent the hinge from shifting.
Address Damage Promptly
If a hinge is bent, cracked, or the pin is stuck, replace it immediately. Damaged hinges can cause the door/gate to sag, leading to further structural issues.
Selecting the right T-hinges requires balancing technical requirements (load capacity) and practical needs (aesthetics). Use these factors to guide your decision:
Load Capacity
Calculate the weight of the door/gate and choose hinges with a load rating that exceeds this weight (add a 20% buffer for safety). For example, a 100kg gate needs hinges rated for at least 120kg.
Environment
Indoor hinges can use carbon steel or aluminum, while outdoor or wet environments (e.g., bathrooms, coastal areas) require stainless steel or galvanized coatings.
Aesthetics
Match the hinge’s finish to your project’s design. For modern homes, powder-coated black or chrome works well; for antique furniture, brass or matte galvanized finishes are better.
Size
The hinge’s leaf and stem length should be proportional to the door/gate size. As a rule of thumb, the horizontal leaf should be 1/3 the height of the door/gate (a 900mm gate needs a 300mm leaf).
Custom Needs
If your project has unusual dimensions, high load requirements, or specific color needs, opt for custom hinges instead of off-the-shelf options.
Below are answers to the most common questions we receive about T-hinges, materials, coatings, and customization.
A: Stainless steel (304 or 316) is the best choice for outdoor use, as it resists rust and corrosion. For coastal areas (high salt exposure), 316 stainless steel offers superior protection. If budget is a concern, carbon steel with hot-dip galvanizing is a cost-effective alternative.
A: The typical timeline is 2–4 weeks. This includes 1 week for design and sample approval, 1–2 weeks for production, and 3–5 days for shipping. Rush orders (1–2 weeks) are available for an additional fee.
A: Yes! We offer custom powder coating in any RAL color (a standard color system used globally). Simply provide the RAL code for your desired color, and we’ll match it exactly.
A: First, calculate the total weight of the door/gate. Then, divide this weight by the number of hinges you plan to use (most doors/gates use 2–3 hinges). Add a 20% buffer to ensure safety. For example, a 150kg gate with 3 hinges needs each hinge to support at least 50kg (150kg ÷ 3 = 50kg) + 20% = 60kg.
A: Yes! We offer heavy-duty T-hinges made from thick stainless steel (up to 10mm thickness) with reinforced pins. These hinges can support loads up to 500kg per unit, making them ideal for industrial equipment doors, shipping containers, and large warehouse gates.
A: For indoor hinges, lubricate every 6 months. For outdoor or high-use hinges (e.g., commercial gates), lubricate every 3 months. Use a silicone-based lubricant to avoid attracting dirt.
A: Custom hinges are typically 20–50% more expensive than standard options, depending on the complexity (custom dimensions, rare materials, or special coatings). However, they eliminate the need for modifications (e.g., cutting or drilling) and ensure a perfect fit, saving time and money in the long run.
A: We offer a 5-year warranty for standard T-hinges (covering defects in material and workmanship) and a 3-year warranty for custom hinges. The warranty does not cover damage from improper installation, misuse, or extreme environmental conditions (fire, floods).
T-hinge features simplicity, durability and versatility, and is suitable for residential, commercial and industrial applications. By choosing the appropriate materials (stainless steel for outdoor use, and brass for decoration), and applying coatings (hot-dip galvanizing for outdoor use to enhance corrosion resistance, and powder coating for decorative purposes to achieve color matching).
For projects with special requirements, our custom T-type hinge service can provide solutions that meet your specific needs - including dimensions, load-bearing capacity, color, and hole positions. Through proper installation and maintenance.
Whether you are building garden gates, upgrading industrial equipment, or designing custom furniture, T-shaped hinges can provide sufficient strength and flexibility to ensure the smooth completion of your work. Please contact our team immediately to discuss your project and learn about our materials, coatings, and customization options.
