The Countersunk washer is an important component in daily life and is used in conjunction with screws or bolts. Unlike standard flat washers, the countersunk washer has a taper(sunk) design, which enables the head of the fastener to be flush with the surface of the material. This flush surface is not only aesthetically pleasing but also reduces air resistance and ensures a smooth contact surface.
The washer has two main functions: to distribute the tightening force of the fastener over a larger surface area, to prevent material damage, and to prevent the fastener from loosening. It is widely used in industries with extremely high requirements for surface smoothness and structural integrity, such as furniture manufacturing and aerospace engineering. Understanding the types and materials of the washer is crucial for selecting the appropriate washer for any project.
The countersunk washers are mainly divided into two types: countersunk finish washers and the countersunk cup washers. Each type of washer is designed according to specific requirements, and they differ in terms of design, function, and applicable scenarios.

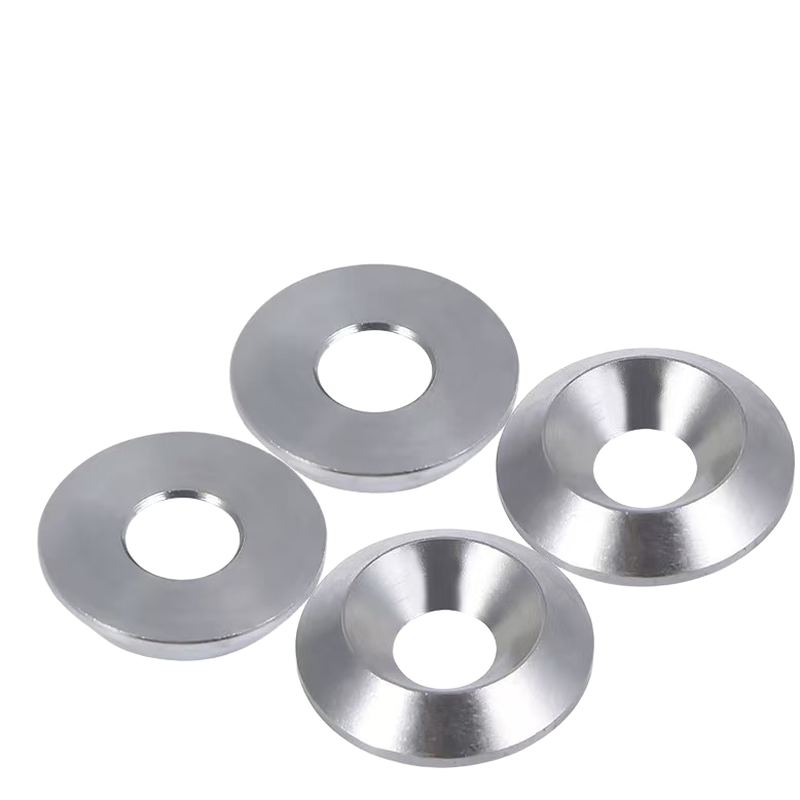

Countersunk finish washers, often called “flat countersunk washers,” have a thin, flat profile with a countersunk hole. The surface is usually smooth or has been polished, making it suitable for applications that emphasize appearance, such as prominent furniture components or decorative metal products.
This lightweight design minimizes material accumulation and ensures that the fastener heads are fully in contact. They are most suitable for applications with low to medium loads, as their thin structure has a slightly poorer vibration resistance compared to cup washers. Common applications include cabinets, wooden fixings, and lightweight metal components.

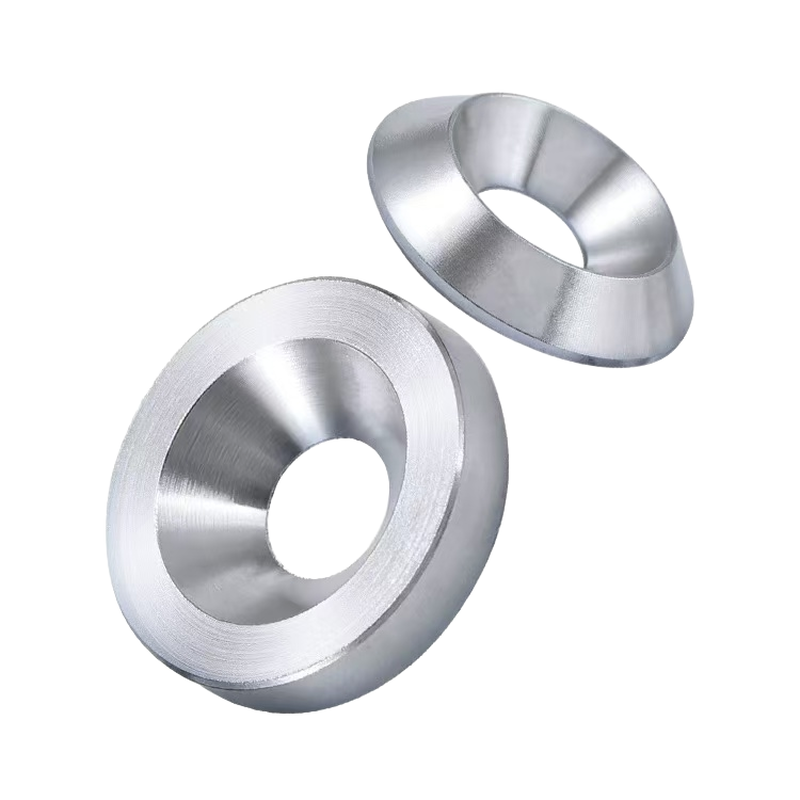

Countersunk cup washers (or “countersunk dome washers”) have a distinct cup-shaped indentation around the hole. This dome design creates a tighter grip on the fastener and material, improving resistance to vibration and loosening. Unlike finish washers, they are thicker and more robust, making them suitable for high-load or high-vibration environments.
The concave part of this cup also helps to precisely position the device, reducing the risk of deviation. They are used in fields such as automotive components, mechanical devices, and outdoor equipment - in these applications, durability and stability are crucial factors.
| Feature | Countersunk Finish Washers | Countersunk Cup Washers |
|---|---|---|
| Design | Thin, flat profile; smooth surface | Thick, cup-shaped indentation |
| Primary Function | Aesthetics; light load distribution | Vibration resistance; high-load stability |
| Ideal Fastener Type | Small countersunk screws (wood/metal) | Heavy-duty countersunk bolts/studs |
| Common Uses | Furniture, cabinetry, decorative parts | Automotive, machinery, outdoor equipment |
| Material Thickness | 0.5–2mm (typical) | 2–5mm (typical) |
The material of the head washer has a direct impact on its performance, including corrosion resistance, strength and weight. The three most common materials are stainless steel, aluminum and brass - each material is suitable for specific environments and applications.

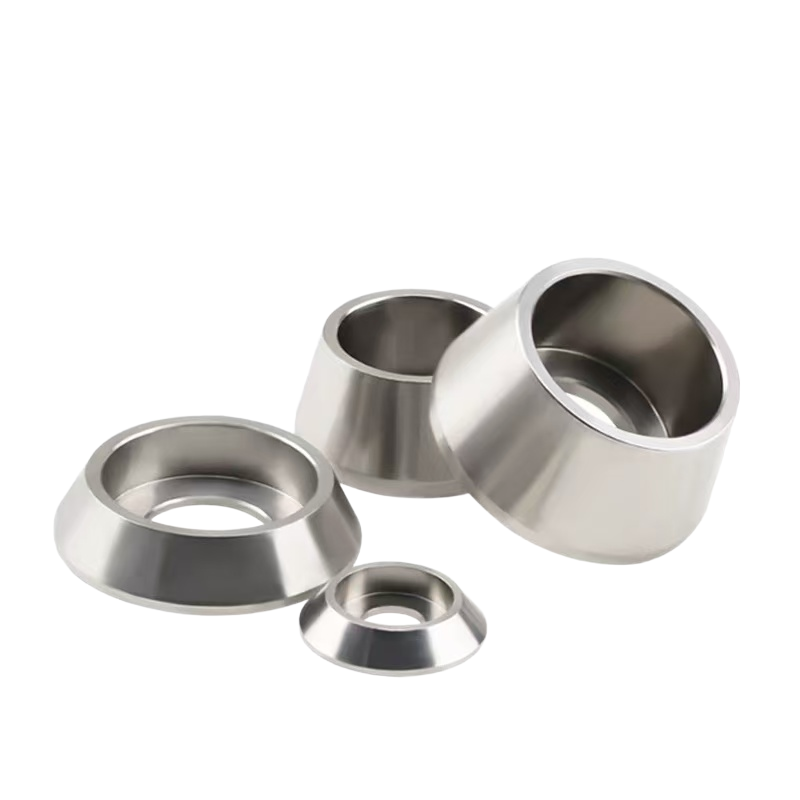

Stainless steel countersunk washers are the most versatile, thanks to their excellent corrosion resistance and strength.
They come in different grades to choose from, such as 304 (general type) and 316 (suitable for marine environments and with stronger corrosion resistance). Although heavier than aluminum, they have better durability. The drawback is that they are more expensive than aluminum.
The aluminum countersunk washers are lightweight and have moderate corrosion resistance. Their weight is approximately one-third that of stainless steel, making them suitable for applications where weight is a critical factor, such as in aerospace, automotive interiors, or electronic devices.
The natural oxide layer of aluminum can provide a basic anti-rust effect, but its durability is inferior to that of stainless steel in harsh environments (such as saltwater environments). Aluminum is relatively soft, so it should not be used in high-torque applications where there is a risk of deformation.
Brass countersunk washers have a beautiful appearance and excellent conductivity. Their warm golden surface makes them highly suitable for decorative purposes, such as in antique furniture, jewelry boxes, or architectural hardware, etc.
The corrosion resistance of brass is superior to that of steel (but inferior to stainless steel), and it is non-magnetic, which is very useful in electronic devices. It also has plasticity, but is softer than stainless steel and aluminum, making it suitable for low-load and low-vibration applications. The price of brass washers is higher than that of aluminum, but it is usually more affordable than high-grade stainless steel.
| Material | Corrosion Resistance | Strength | Weight (g/cm³) | Cost Range | Best Applications |
|---|---|---|---|---|---|
| Stainless Steel (304) | High | High | 7.93 | Medium | Outdoor furniture, industrial machinery |
| Stainless Steel (316) | Very High | High | 8.00 | High | Marine equipment, coastal construction |
| Aluminum | Moderate | Medium | 2.70 | Low | Aerospace, electronics, automotive interiors |
| Brass | Medium | Low | 8.40 | Medium | Decorative hardware, antique furniture, electronics |
Countersunk washers are used in nearly every industry that relies on fastening systems. Their ability to create a flush surface and distribute force makes them indispensable for both functional and aesthetic needs.
In the construction industry, stainless steel countersunk washers are used in conjunction with countersunk bolts to secure wooden or metal beams. The smooth surface design of these washers can prevent tripping accidents and ensure compatibility with other structural components. For coastal buildings, 316 stainless steel washers can resist saltwater corrosion.
The automotive industry, uses countersunk cup washers in engine components and chassis assemblies. These washers have vibration resistance properties and can keep fasteners in a tightened state in high-impact environments. Aluminum washers are used in interior components to reduce weight.
In the electronics indusry, countersunk washers made of aluminum and brass are very common. The aluminum material is lightweight and suitable for small devices, while the brass material has excellent electrical conductivity and is ideal for connecting circuit components. Its smooth design also helps avoid damage to the delicate circuit boards.
Furniture manufacturing largely relies on countersunk washers. Wooden cabinets, tables, and chairs use these washers with countersunk screws to prevent the heads of the fasteners from being exposed, thereby enhancing the overall aesthetic appeal of the furniture. In high-end or vintage-style furniture, copper washers are often used to create a more refined appearance.
Selecting the correct countersunk washer requires considering four key factors
application requirements
material compatibility
size,
Load capacity.
First, determine your application requirements. Aesthetics are very important (for decorative furniture), so choose the countersunk finish washers. For high-vibration or heavy-duty usage scenarios (such as for mechanical components), countersunk cup washers should be selected.
Next, select the appropriate washer material based on the environment. For marine or outdoor conditions, use stainless steel (316); for weight-sensitive applications, use aluminum; for decorative or conductive uses, use brass. Ensure that the washer material is compatible with the fastener and the substrate to avoid electrochemical corrosion (do not use brass washers with aluminum materials).
Then, check the dimensions. The inner hole of the washer must match the diameter of the fastener (for example, a 5-millimeter screw requires a 5-millimeter hole). The outer diameter of the washer should be large enough.
Finally, the load-bearing capacity should be taken into consideration. Thicker countersunk cup washer can withstand greater loads than thinner surface gaskets. For high-torque applications, stainless steel should be chosen instead of aluminum or brass to prevent deformation.
Proper installation ensures countersunk washers perform as intended, preventing loosening, material damage, or fastener failure. Follow these steps for optimal results:
Prepare the surface: Ensure the base material is clean and flat. For wood or soft materials, pre-drill a countersunk hole (matching the washer’s taper) to avoid splitting.
Align components: Place the washer over the pre-drilled hole, ensuring the countersunk side faces the fastener head. Misalignment can cause the fastener to sit unevenly.
Control torque: Use a torque wrench to tighten the fastener to the manufacturer’s recommended level. Over-tightening can deform the washer or strip the hole; under-tightening may lead to loosening.
Inspect after installation: Check that the fastener head is flush with the washer and material surface. If the head protrudes, the washer size or hole depth may be incorrect.
For high-vibration applications (automotive parts), apply a thread-locking compound in addition to using a cup washer to further prevent loosening.
Countersunk finish washers have a thin, flat design with a smooth surface, prioritizing aesthetics for light-load uses. Countersunk cup washers have a thick, cup-shaped indentation, offering better vibration resistance and stability for high-load applications.
Stainless steel (especially grade 316) is the best choice for outdoor use. It has excellent corrosion resistance against rain, humidity, and saltwater, unlike aluminum (which offers moderate protection) or brass (which may tarnish over time).
The washer’s inner hole diameter must match the screw’s shank diameter (a #8 screw needs a #8 washer hole). The washer’s outer diameter should be 2–3 times the inner diameter to effectively distribute force.
No. Aluminum is softer than stainless steel or brass, so high torque can deform the washer, reducing its ability to distribute force. Use stainless steel cup washers for high-torque needs.
It depends on the material and condition. Stainless steel washers can be reused if they show no signs of deformation or corrosion. Aluminum and brass washers are more prone to bending, so they should be replaced if damaged.
Not on their own. To prevent galvanic corrosion (when two dissimilar metals react), choose a washer material compatible with the fastener and base material (e.g., aluminum washers with aluminum screws). For mixed metals, use a non-conductive washer (e.g., plastic) as a barrier.
A countersunk hole matches the washer’s taper, allowing the fastener head and washer to sit flush with the material surface. Without it, the washer may not align properly, and the fastener head may protrude.
Yes. Many manufacturers offer custom countersunk washers in unique sizes, materials (titanium for aerospace), or finishes (powder-coated brass for decor). Customization is common for industrial or high-end decorative applications.
