Finish washers are specialized fastener accessories designed to sit between a bolt/nut and the surface of a material. Unlike standard flat washers, decorative washers combine practical functionality with aesthetic appeal - making them an ideal choice for visible applications that prioritize both performance and appearance.
Their main function is to protect the surface of the material from damage caused by the tightening of fasteners. After the bolts are fixed, the washers will act as a buffer, preventing scratches, depressions or wear and tear, thus avoiding damage to the material.
Another key function is load distribution. By spreading the pressure of the fastener over a larger area, the end face gasket is able to reduce the pressure on the material, thereby minimizing the risk of material cracking or deformation to the greatest extent.
Finally, finish washers enhance visual consistency. Many styles feature smooth, flat surfaces or coatings that match the material, allowing for a seamless integration with the materials. The assembly of fasteners appears both meticulously designed and highly practical.
Finish washers come in diverse materials and designs to suit different applications. The choice of material directly impacts durability, corrosion resistance, and cost, while design variations cater to specific installation needs.
The most common materials for finish washers include metals (stainless steel, carbon steel, brass) and non-metals (rubber, plastic). Each material offers unique benefits, as outlined in the table below.
| Material | Key Characteristics | Advantages | Ideal Applications |
|---|---|---|---|
| Stainless Steel | Corrosion-resistant, strong, polished finish | Long-lasting, low maintenance, aesthetic | Outdoor, marine, kitchen, or humid environments |
| Carbon Steel | High strength, affordable, prone to rust | Cost-effective for indoor, low-moisture use | Furniture, indoor fixtures, non-critical structures |
| Brass | Decorative, corrosion-resistant, malleable | Visually appealing, compatible with metals | Architectural accents, decorative hardware |
| Rubber/Plastic | Non-conductive, non-marring, flexible | Protects delicate surfaces (e.g., glass) | Electronics, glass fixtures, plastic components |
Designs of finish washers are tailored to fit different fastener types and surface requirements:
Flat Finish Washers: The most common design, with a flat, circular shape. They work for most standard applications and provide even load distribution.

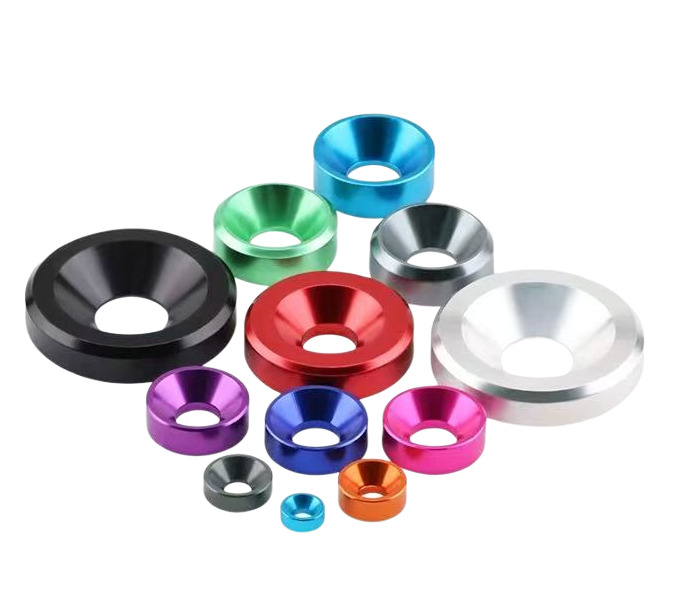

Countersunk Finish Washers: Feature a tapered inner hole that matches countersunk bolts. This allows the fastener head to sit flush with the washer, creating a smooth, unobtrusive surface.
Beveled Finish Washers: Have a sloped edge to accommodate angled surfaces (e.g., metal sheets or framing). They ensure the washer lies flat, preventing uneven pressure.
Stainless steel finish washers stand out as the preferred choice for many industries—thanks to their unique combination of performance and aesthetics. Below are their most notable benefits:
Stainless steel contains chromium (at least 10.5%), which forms a thin, invisible oxide layer on its surface. This layer acts as a barrier, preventing rust and corrosion even when exposed to moisture, saltwater, or chemicals.
Unlike carbon steel washers, this type of material needs to be painted or coated to prevent rusting, while the variants of stainless steel can maintain their integrity in harsh environments (such as outdoor platforms, ship equipment or kitchen sinks).
Stainless steel has extremely high strength and is suitable for bearing weight. It can withstand repeated stress, vibration and temperature changes without bending or breaking. This durability reduces the need for frequent replacements and lowers maintenance costs.
Stainless steel washers available come in various surface treatment options, such as satin finish, polished finish or matte finish. These different surface treatments enable them to be compatible with a wide range of materials - from stainless steel appliances to wooden furniture or stone countertops. In prominent application scenarios (retail displays or residential hardware), they can add a fashionable and professional appearance without affecting functionality.
Unlike brass or carbon steel, stainless steel does not require regular polishing or coating to maintain its appearance. Just a gentle wipe will remove dust. Stainless steel is ideal for hard-to-reach areas (such as ceiling fixtures) or applications with restricted maintenance access.
Stainless steel finish washers are versatile and used in nearly every sector where durability, corrosion resistance, and aesthetics matter. Below are their most common industry-specific uses:
In construction projects, stainless steel finish washers are used for external components such as curtain walls, handrails and outdoor signage. They can resist the erosion of rain, snow and ultraviolet rays without rusting, ensuring the stability and aesthetics of the building structure.
In high-rise buildings, they fix the glass panels to the metal frames, protecting the glass from scratches and maintaining its clean and modern appearance.
The automotive industry relies on stainless steel finish washers for exterior components (bumpers, door handles) and under-hood parts (engine mounts). Their corrosion resistance can protect them from the erosion of road salt and moisture, while their strength can withstand the vibrations during driving. In maritime transportation, they are crucial in saltwater environments because other materials would quickly deteriorate in such conditions.
Kitchen and bathroom appliances (stainless steel refrigerators, dishwashers, sinks) use stainless steel finish washers to attach handles, knobs, and panels. These washers match the color of the surface of the electrical appliances and are waterproof and stain-resistant. They also prevent scratches on the surface of the appliances, thereby extending their service life.
In electronics, stainless steel finish washers are used to secure components in devices like smartphones, laptops, and industrial machinery. Their non-magnetic properties (stainless steel 316) are suitable for electronic devices that are sensitive to magnetic fields, and their corrosion resistance can prevent moisture absorption.
In medical equipment (such as surgical tools, hospital beds), they meet strict hygiene standards - easy to clean and not releasing chemicals, ensuring the safety of patients.
Choosing the correct finish washer (especially stainless steel variants) requires considering application-specific needs. The table below outlines key selection factors and recommendations:
| Selection Factor | Key Considerations | Recommended Finish Washer Type |
|---|---|---|
| Size Compatibility | Match the washer’s inner hole diameter to the bolt/nut size; outer diameter should fit the application space. | Measure bolt diameter first—e.g., M5 bolts need 5mm inner hole washers. |
| Load Requirements | High-load applications (e.g., construction) need thick, high-strength washers; low-load (e.g., furniture) can use thinner variants. | Stainless steel (Grade 304 or 316) for high load; carbon steel for low load. |
| Environmental Conditions | Moisture, salt, or chemicals require corrosion resistance; indoor, dry areas can use cheaper materials. | Stainless steel (Grade 316 for marine/saltwater; Grade 304 for general outdoor use). |
| Aesthetic Needs | Visible applications need polished or matching finishes; hidden applications prioritize function over looks. | Stainless steel (brushed/polished) for visibility; carbon steel for hidden use. |
| Material Compatibility | Avoid galvanic corrosion (e.g., aluminum and steel react)—choose washers that match the base material. | Stainless steel for most metals; rubber/plastic for delicate surfaces. |
Not all stainless steel finish washers are the same—grades determine their performance:
Grade 304: The most common grade, suitable for general outdoor and indoor use. It resists rust in most environments but may corrode in saltwater.
Grade 316: Contains molybdenum, which enhances corrosion resistance. Ideal for marine, coastal, or chemical-rich environments (e.g., pools, laboratories).
Grade 430: A budget-friendly option with lower corrosion resistance. Best for dry, indoor applications (e.g., furniture hardware).
Proper installation and maintenance ensure stainless steel finish washers perform optimally for years. Follow these guidelines:
Clean Surfaces First: Remove dirt, oil, or debris from the bolt, washer, and material surface. Contaminants can cause uneven pressure or corrosion over time.
Use the Right Tools: Do not use rough tools (such as wire brushes) that can scratch the surface of the washer - this will damage the oxide layer and reduce its corrosion resistance. Please use soft cloth or plastic tools instead.
Control Torque: Over-tightening can bend the washer or damage the material. Use a torque wrench to follow the manufacturer’s recommended torque settings (10-15 N·m for M6 stainless steel bolts).
Align Properly: Make sure that the cleaner is kept perpendicular to the bolts and closely adheres to the material. If not placed perpendicularly, it will result in uneven load distribution, which may cause damage to the material.
Regular Cleaning: Wipe stainless steel finish washers with a mild detergent and warm water every 3-6 months. For outdoor applications, clean more frequently (e.g., monthly) to remove salt, dirt, or pollen.
Avoid Harsh Cleaners: Do not use bleach, ammonia, or abrasive cleaners—these can strip the oxide layer and cause discoloration.
Inspect for Damage: Check washers annually for signs of corrosion, bending, or loosening. Replace any damaged washers immediately to prevent further issues (e.g., material cracking).
Misconceptions about finish washers (especially stainless steel variants) often lead to poor selection or installation. Below are the most common myths, clarified:
False. Standard flat washers focus solely on load distribution and are often uncoated or made of low-grade steel. Finish washers, In contrast, giving priority to surface protection and aesthetics - these products have a smoother surface finish and are made of corrosion-resistant materials such as stainless steel. Using ordinary washers (like the edges of a wooden table) is likely to scratch the surface and make it look unprofessional.
False. While stainless steel is highly corrosion-resistant, it is not rust-proof. If the oxide layer is damaged, the steel may develop rust spots or pits. This is why proper maintenance is necessary (such as avoiding the use of rough tools), especially in harsh environments.
False. Thicker washers are not necessary for low-load applications and can add unnecessary bulk. For example, a thick stainless steel washer used to secure a small cabinet handle will not provide additional benefits and may look bulky. Always choose a washer thickness that matches the load requirements.
False. While aesthetics are a key feature, finish washers’ primary function is to protect the material surface and distribute load. In a concealed installation position (placed beneath the sink), the stainless steel finish washer can also prevent the bolts from damaging the material and reduce the risk fof corrosion.
A finished washer combines load distribution, surface protection and aesthetics, featuring a smoother surface and corrosion-resistant material (stainless steel). The standard flat washer only focuses on load distribution and is usually made of low-grade steel or uncoated metal, with no particular requirements for appearance.
The chromium oxide layer of stainless steel can resist rust and corrosion caused by rain, snow and ultraviolet rays - something that carbon steel or brass cannot match. Moreover, this material requires almost no maintenance, making it highly suitable for use in outdoor environments with limited space.
Yes, but take precautions to avoid galvanic corrosion. When stainless steel and aluminum are in contact with moisture, an electric current can form, leading to aluminum corrosion. To prevent this, use a non-conductive washer (e.g., rubber) between the stainless steel finish washer and aluminum surface.
For the M8 bolts (with a diameter of 8 millimeters), a stainless steel surface washer with an inner diameter of 8.4 millimeters (to fit the bolts) and an outer diameter of 16 - 20 millimeters (depending on the application space) should be selected. Please be sure to refer to the size chart of the bolts for accurate size information.
For light tea staining, use a mixture of white vinegar and water (1:1 ratio) to wipe the washer. For heavier rust, use a specialized stainless steel cleaner (avoid abrasives). After cleaning, rinse thoroughly and dry to restore the oxide layer.
Most grades (such as 304 and 316) can withstand temperatures up to 800°F (427°C), making them suitable for high-temperature environments such as ovens or industrial equipment. For temperatures exceeding 1000°F (538°C), grades like 310S, which are more heat-resistant, should be used.
It is not recommended to use paint. The oxide layer of stainless steel will prevent the paint from adhering properly, and over time, the paint may peel off. Therefore, you should choose a matching stainless steel surface treatment method (such as polishing or sanding), or use colored plastic gaskets to achieve a unique appearance.
In indoor, dry environments, stainless steel finish washers can last 50+ years. In outdoor or marine environments (using Grade 316), they typically last 20-30 years with proper maintenance. Factors like moisture, salt exposure, and maintenance frequency will affect lifespan.
