Introduction to 304 and 316 Stainless Steel Stamping

Stainless steel stamping stamping is a critical manufacturing process that shapes flat stainless steel sheets into precise, complex parts using dies and presses. Among the most widely used grades for stamping are 304 and 316 stainless steel (SS), each offering unique properties tailored to specific industrial needs.

304 SS stamping dominates markets like food processing and consumer goods due to its balanced corrosion resistance and cost-effectiveness.

In contrast, 316 SS stamping excels in harsh environments—such as marine or chemical settings—thanks to added molybdenum, which enhances its resistance to chloride-induced corrosion.

This article provides a detailed description of their composition, embossing process and applications, which will assist manufacturers in selecting the appropriate grade for their respective projects.

1.Basics of Stainless Steel Stamping

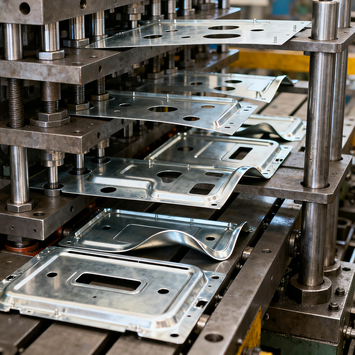

Stainless steel stamping processes the flat stainless steel sheet into products through techniques such as punching, bending, and stretching. Unlike other metals, stainless steel has high strength and corrosion resistance, making it ideal for manufacturing durable components. However, during the stamping process, it also presents some unique challenges.

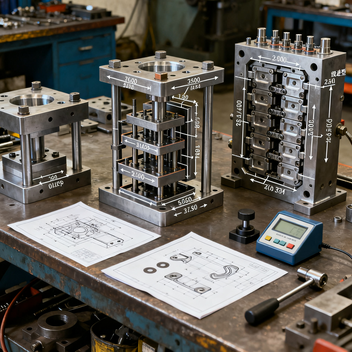

For both 304 and 316 SS stamping, This process begins with the selection of materials and the design of molds. The molds are customized according to the shape of the parts, ensuring that the structure is not damaged during the molding process. After the stamping, further processing may be carried out to restore ductility or enhance corrosion resistance.

1.1Key Advantages of 304 and 316 SS Stamping

Both grades retain stainless steel’s core benefits, but their stamping outputs offer grade-specific advantages:

• 304 SS stamping: Provide cost-effective and well-formed components that are suitable for large-scale production. Their resistance to weak acids and oxidation makes them suitable for use in indoor or dry environments.

• 316 SS stamping: It is capable of manufacturing components that can withstand extreme environments. These components are indispensable in fields such as medical equipment, marine and offshore components.

2.304 Stainless Steel (304 SS): Composition and Stamping Suitability

304 SS is an austenitic stainless steel, defined by its high chromium (Cr) and nickel (Ni) content. This composition gives it the ductility and corrosion resistance that make 304 SS stamping a top choice for general-purpose applications.

2.1Chemical Composition of 304 SS

The alloy’s composition adheres to ASTM standards, with key elements driving its performance:

1. Chromium (18–20%): Forms a passive oxide layer on the surface, preventing rust and oxidation.

2. Nickel (8–10.5%): Stabilizes the austenitic structure, enhancing ductility—critical for stamping processes like bending and drawing.

3. Carbon (max 0.08%): Limits carbide precipitation, reducing the risk of corrosion after high-temperature stamping.

4. Manganese (max 2%): Improves strength without sacrificing formability.

This blend ensures 304 SS can be stamped into intricate shapes without cracking, even in high-volume runs.

2.2Mechanical Properties Supporting 304 SS Stamping

304 SS’s mechanical properties make it well-suited for stamping:

1. Tensile strength: 515 MPa (min), providing enough rigidity to hold shape post-stamping.

2. Yield strength: 205 MPa (min), allowing the material to deform under press force without permanent damage.

3. Elongation: 40% (min), enabling deep drawing and complex bends—essential for parts like sink basins or valve housings.

These properties mean 304 SS stamping requires minimal post-processing, reducing production costs.

3.316 Stainless Steel (316 SS): Enhanced Corrosion Resistance for Stamping

316 SS is another austenitic grade, but its addition of molybdenum sets it apart. This element makes 316 SS stamping the go-to option for parts exposed to aggressive environments where 304 SS would fail.

3.1What Makes 316 SS Unique?

The key difference in 316 SS’s composition is molybdenum (2–3%), which:

• Blocks chloride ions from penetrating the oxide layer, preventing pitting and crevice corrosion (common in saltwater or chemical tanks).

• Improves resistance to sulfuric acid and other industrial chemicals.

• It can still maintain its strength at higher temperatures (up to 870°C), and the 316 stainless steel stamping material is suitable for high-temperature applications.

The other components are similar to 304 stainless steel, but the addition of molybdenum enhances its performance and enables it to withstand higher costs in specific applications.

3.2Stamping Considerations for 316 SS

While 316 SS is ductile, its molybdenum content slightly reduces formability compared to 304 SS. For successful 316 SS stamping:

• Use sharper die edges to minimize material drag, which can cause surface scratches (and potential corrosion points).

• Incorporate intermediate annealing steps if stamping complex parts—this relieves work hardening, preventing cracking.

• Opt for higher press forces (10–15% more than 304 SS) to ensure full shape formation, as 316 SS has higher yield strength.




4.Comparative Analysis of 304 SS Stamping vs. 316 SS Stamping

Choosing between 304 and 316 SS stamping depends on application requirements, cost, and environmental exposure. The table below highlights their key differences:

Table 1: Key Parameters Comparison of 304 SS and 316 SS for Stamping

Parameter	304 SS Stamping	316 SS Stamping
Corrosion Resistance	Good (mild acids, dry environments)	Excellent (chlorides, chemicals, saltwater)
Molybdenum Content	0%	2–3%
Tensile Strength	515 MPa (min)	550 MPa (min)
Formability	High (ideal for complex bends/drawing)	Moderate (may need annealing)
Cost (vs. 304 SS)	Base price (100%)	20–30% higher
Temperature Resistance	-270°C to 870°C	-270°C to 870°C (better creep resistance)
Typical Applications	Kitchenware, appliance parts	Medical devices, marine hardware, chemical tanks

5.Stamping Processes for 304 and 316 SS: Techniques and Best Practices

The stamping process for 304 and 316 SS shares core steps, but grade-specific adjustments ensure quality. Below are common techniques and best practices for each grade.

5.1Common Stamping Techniques for Both Grades

• Blanking: Cutting flat SS sheets into basic shapes (e.g., washers for 304 SS, gaskets for 316 SS). For 316 SS, use high-speed steel (HSS) dies to avoid edge wear.

• Bending: Creating angles or curves (e.g., 304 SS brackets, 316 SS pipe clamps). 304 SS bends more easily; 316 SS may require slower bend speeds to prevent cracking.

• Deep Drawing: Forming 3D parts (e.g., 304 SS sinks, 316 SS medical vials). 304 SS supports deeper draws; 316 SS needs lubrication (e.g., mineral oil) to reduce friction.

5.2Process Optimization for 304 and 316 SS Stamping

• 304 SS: Avoid over-annealing, as it can reduce strength. Use water-based lubricants to keep costs low (no need for heavy oils).

• 316 SS: Use carbide dies for long production runs—they resist wear from 316’s higher hardness. After stamping, passivate parts with nitric acid to reinforce the oxide layer.

The table below summarizes critical process parameters:

Table 2: Stamping Process Parameters for 304 SS and 316 SS

Process Parameter	304 SS Recommendation	316 SS Recommendation
Die Material	HSS or tool steel	Carbide or coated HSS
Press Force	5–10 tons (per mm thickness)	10–15 tons (per mm thickness)
Lubricant Type	Water-based	Synthetic or mineral oil
Annealing Temperature	1010–1120°C (1–2 hours)	1030–1150°C (1.5–2.5 hours)
Post-Stamping Treatment	Optional passivation	Mandatory passivation (nitric acid)

6.Industrial Applications of 304 and 316 SS Stamping Parts

Each grade’s properties align with specific industry needs, making their stamping outputs versatile across sectors.

6.1Applications of 304 SS Stamping Parts

304 SS stamping parts thrive in low-corrosion, cost-sensitive environments:

• Food & Beverage: stamping parts such as conveyor belts, mixer blades, and tank covers - made of 304 material, which is non-toxic and has food tolerance, complies with the standards set by the US Food and Drug Administration.

• Consumer Goods: Kitchenware (pans, utensils), appliance parts (refrigerator shelves), and hardware (door handles)—its formability allows sleek designs.

• Construction: Stamped cladding, handrails, and fasteners—304’s resistance to rain and pollution ensures long-term durability.

6.2Applications of 316 SS Stamping Parts

316 SS stamping parts are critical for harsh or sterile environments:

• Medical Industry: The surgical instruments, implant components, and diagnostic equipment housings that are formed by stamping - the 316 material has excellent corrosion resistance and complies with ISO 13485.

• Marine Engineering: stamped marine part, offshore platform supports, and underwater sensors - their resistance to saltwater corrosion is superior to that of 304 stainless steel.

• Chemical Processing: Stamped valve bodies, pump components, and reactor liners—withstands acids (e.g., sulfuric, hydrochloric) and high temperatures.

•


7.Quality Control and Maintenance for Stamped 304/316 SS Parts

Ensuring the longevity of 304 and 316 SS stamping parts requires rigorous quality control (QC) during production and proper maintenance post-installation.

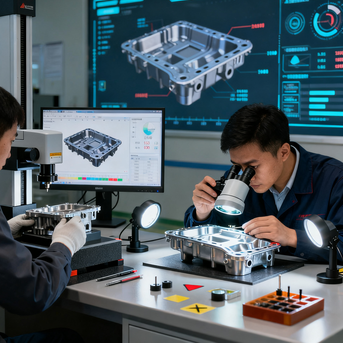

7.1Quality Control During Stamping

• Material Inspection: Verify SS grade with a spectrometer—mixing 304 and 316 SS can lead to premature failure (e.g., 304 parts in marine settings).

• Dimensional Checks: Use calipers or coordinate measuring machines to ensure that the stamped parts meet the design tolerances (the tolerances for both grades are typically ±0.05 millimeters).

• Corrosion Testing: For 316 SS, perform salt spray tests to confirm resistance to pitting—parts should show no rust after 1,000 hours.

•


7.2Maintenance Tips for Stamped Parts

• 304 SS Parts: Clean with mild soap and water; avoid abrasive cleaners (e.g., steel wool) that scratch the oxide layer. For outdoor parts, apply a stainless steel protector annually.

• 316 SS Parts: Rinse marine or chemical-exposed parts weekly to remove chloride buildup. For medical parts, autoclave (sterilize with high-pressure steam) as needed—316 SS withstands repeated autoclaving.

8.Frequently Asked Questions (FAQs) About 304 and 316 SS Stamping

Q1: What is the main difference between 304 SS stamping and 316 SS stamping?

The primary difference is corrosion resistance:

316 SS stamping parts include molybdenum, making them resistant to chlorides, while 304 SS stamping parts are better for mild environments.

Q2:Can 304 SS stamping parts be used in marine environments?

No—304 SS is prone to pitting and crevice corrosion in saltwater. For marine applications, 316 SS stamping parts are required to withstand chloride exposure.

Q3:Do 316 SS stamping parts need post-treatment after production?

Yes—passivation (treating with nitric acid) is mandatory for 316 SS. It repairs the oxide layer damaged during stamping, ensuring maximum corrosion resistance. 304 SS may need passivation for high-humidity uses but not for general applications.

Q4:What is the maximum sheet thickness for 304 and 316 SS stamping?

Both grades can be stamped with sheets 0.5mm to 6mm thick. For thicknesses over 3mm, 316 SS may require additional annealing to maintain formability.

Q5:Are 304 and 316 SS stamping parts recyclable?

Yes—both are 100% recyclable. Stamped scrap can be melted down and reused for new SS sheets, reducing waste and environmental impact.

Q6:Can 316 SS stamping parts be welded to other metals?

Yes, but it’s best to weld 316 SS to other 316 SS parts. Welding to 304 SS creates a galvanic couple, increasing corrosion risk. Use 316 SS filler metal for strong, corrosion-resistant joints.

Q7:What is the lead time for 304 vs. 316 SS stamping production?

Lead times are similar for low-volume runs (1–2 weeks). For high-volume orders (>10,000 parts), 304 SS may be faster (more readily available), while 316 SS could take 1–2 extra weeks due to material sourcing.

Q8:Which grade is better for medical devices: 304 or 316 SS stamping?

316 SS stamping is preferred. Its biocompatibility (non-toxic, non-reactive) and resistance to autoclaving (high-temperature sterilization) meet medical standards. 304 SS may be used for non-implant, low-sterility parts (e.g., hospital cart frames).

9.Conclusion

304 and 316 SS stamping are foundational processes for manufacturing durable, corrosion-resistant parts across industries.

304 SS stamping offers cost-effectiveness and formability for general applications like food equipment and consumer goods

316 SS stamping provides unmatched resistance to harsh environments—critical for medical, marine, and chemical sectors.

By understanding its composition, stamping process and application limitations, manufacturers can select the appropriate grade to optimize performance and reduce costs.

304 or 316 ss stamping parts, they can provide a longer service life, making them indispensable in modern manufacturing.
