Spring Toggle Product Description

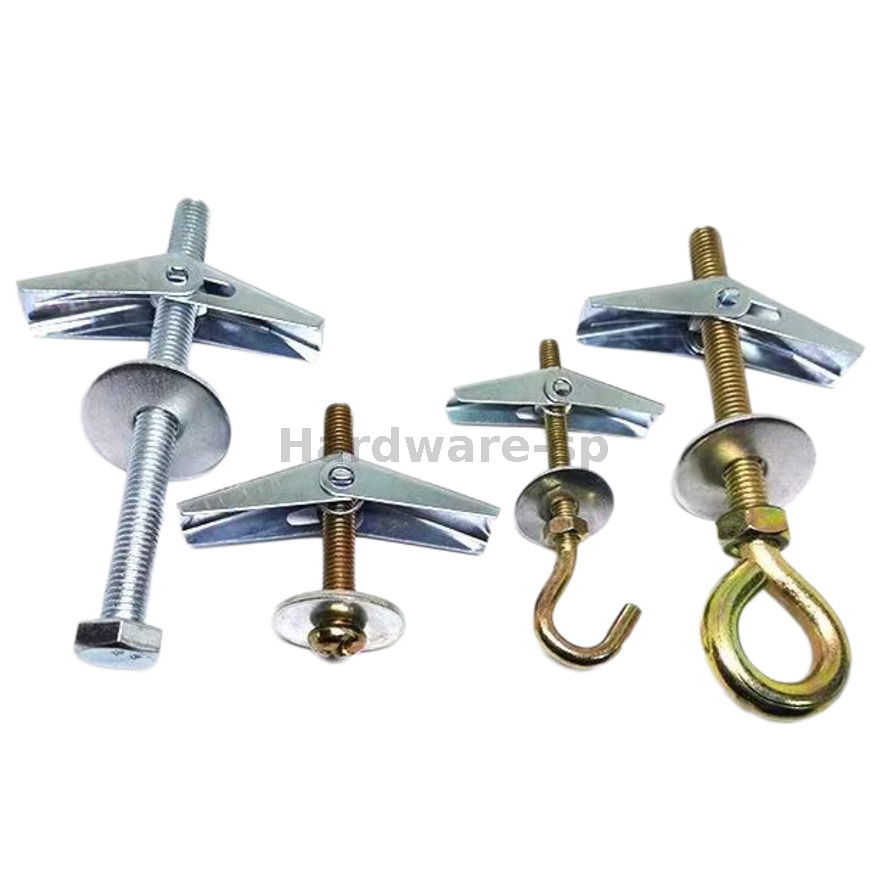

Spring toggles, also referred to as toggle bolts or butterfly anchors, are heavy-duty fasteners engineered to provide secure anchoring in hollow or fragile surfaces where standard screws or nails would fail to hold. Designed for versatility and strength, they are indispensable for mounting objects that require reliable support, from shelves and mirrors to light fixtures and cabinetry.
Core Structure & Design
A complete spring toggle assembly consists of four key components:
Spring-Loaded Toggle Wings: Two hinged metal flaps (often called “butterfly wings”) attached to one end of the bolt. These wings are folded flat during insertion and spring open automatically once they pass through the mounting hole, creating a wide, stable base behind the surface.
Washer: A metal washer placed between the bolt head and the object being mounted to distribute pressure, preventing damage to the surface material (e.g., drywall, plaster, or thin wood).
Material & Durability
Constructed primarily from high-grade carbon steel, spring toggles boast exceptional tensile strength to withstand heavy loads. Most models feature a zinc-plated or galvanized finish, which enhances corrosion resistance—making them suitable for use in humid environments like bathrooms or kitchens, as well as dry indoor spaces. The wings are designed to spring back reliably even after repeated use, ensuring consistent performance over time.
Installation Process
Installing a spring toggle is straightforward, making it accessible for both DIY enthusiasts and professionals:
Drill a hole in the target surface (drywall, plasterboard, hollow brick, etc.) with a diameter slightly larger than the folded toggle wings.
Thread the nut onto the bolt, then slide the toggle wings onto the bolt and tighten the nut to hold the wings in the folded position.
Insert the folded wings through the hole until the wings spring open behind the surface.
Pull the bolt back gently to ensure the wings are fully engaged with the inner surface, then tighten the bolt with a screwdriver to secure the object in place.
Load-Bearing Capacity
The holding power of spring toggles varies by size and surface material. Smaller models (e.g., M4 or 1/8-inch bolts) can support up to 10kg (22lbs) in drywall, while larger sizes (e.g., M8 or 3/8-inch bolts) can handle loads of 50kg (110lbs) or more, depending on the surface’s integrity. This makes them ideal for mounting heavy items that require stability, such as floating shelves, wall-mounted TVs, or bathroom cabinets.
Versatile Applications
Spring toggles excel in scenarios where traditional fasteners struggle:
Residential Use: Perfect for drywall, plaster, hollow doors, or thin wood in homes, apartments, or rental properties.
Commercial Settings: Suitable for mounting signage, fixtures, or equipment in offices, retail spaces, or hotels with hollow partitions.
With their robust construction, easy installation, and reliable performance, spring toggles are the go-to solution for secure mounting in challenging surfaces, ensuring long-lasting stability for a wide range of applications.
